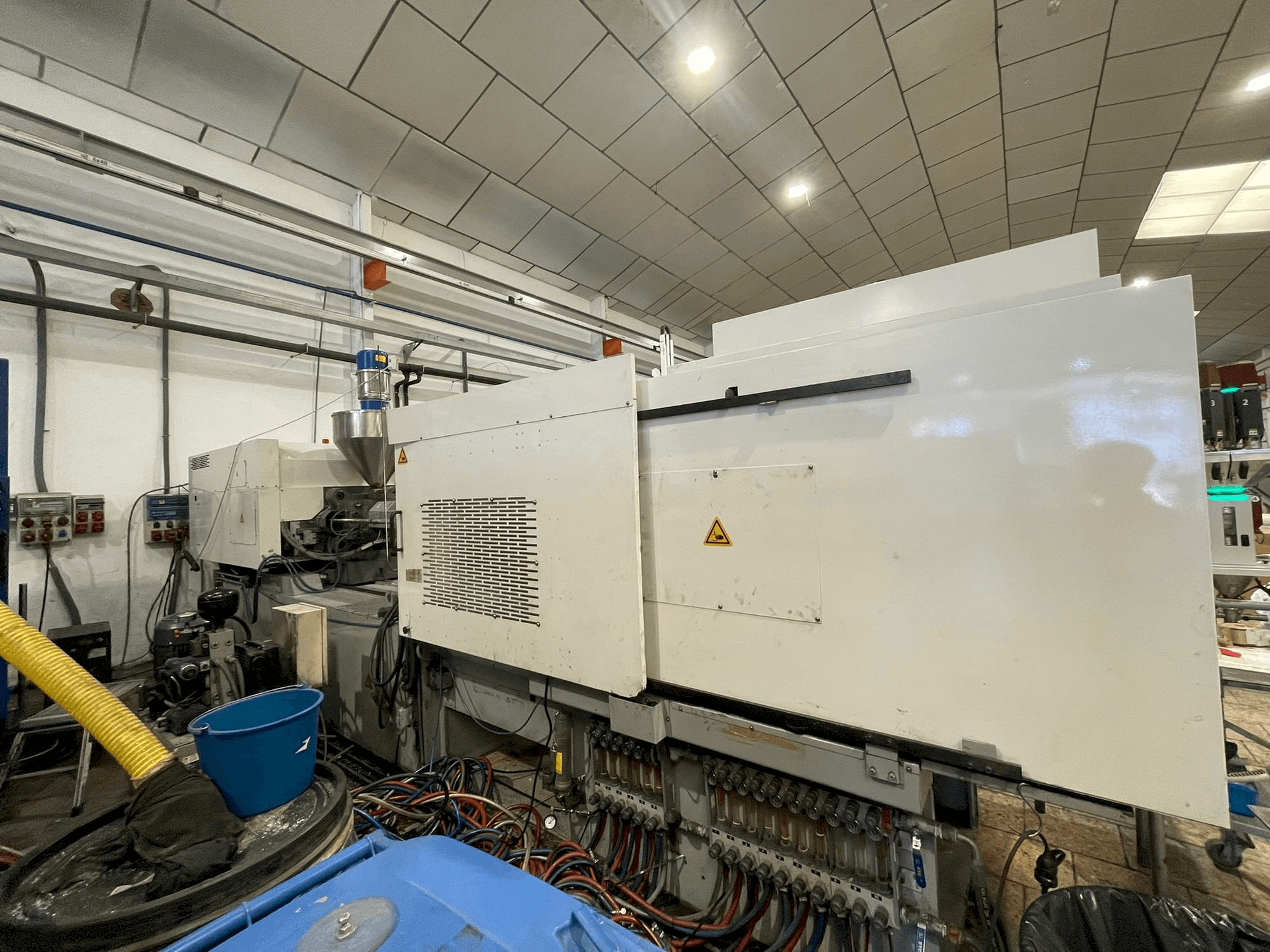

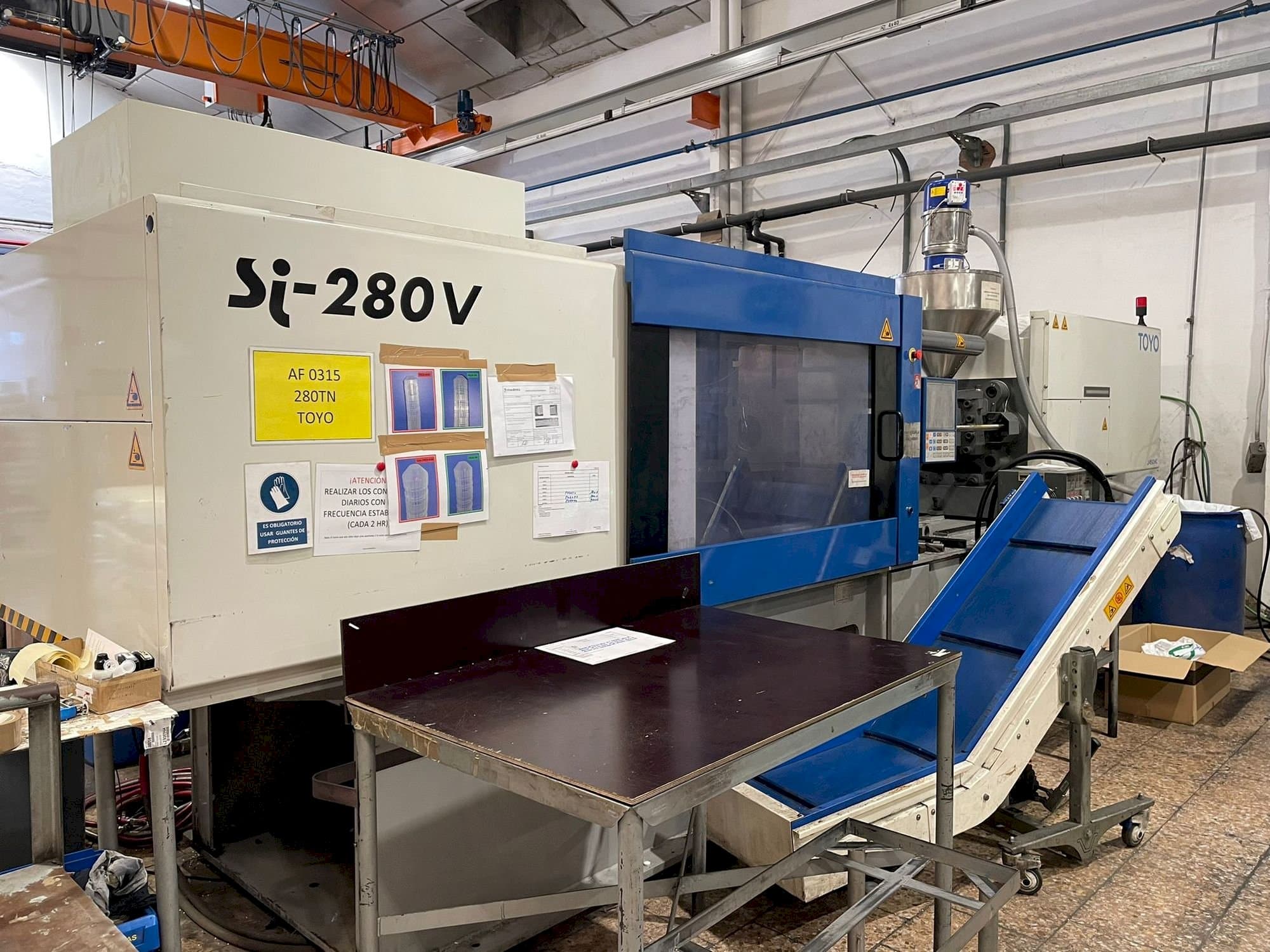

Toyo Si-280-V Injection moulding machine

This Toyo Si-280-V Injection moulding machine was manufactured in the year 2011. The machine has a clamping force of 2744 kN and a screw diameter of 60 mm.

Overview

brand: Toyo
year: 2011
MODEL: Si-280-V
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Toyo Si-280-V

General Data

Measurements width: 1616 mm
Measurements depth: 7308 mm
Measurements height: 2204 mm
Machine weight: 17700 Kg

Injection Unit

Screw diameter: 60 mm
Stroke volume: 270 mm CM³

Clamping unit

Clamping force: 2744 KN
Opening stroke: 600 mm
Distance between bars: 730 x 730 mm
Mould height min: 300 mm
Mould height max: 750 mm
Size of mold platens: 940 x 940 mm
Ejector stroke: 150 mm
Ejector force for / back: 60 KN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
