TRAUB TNK 36

Photo Gallery

TRAUB - TNK 36NL-TUR-TRA-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

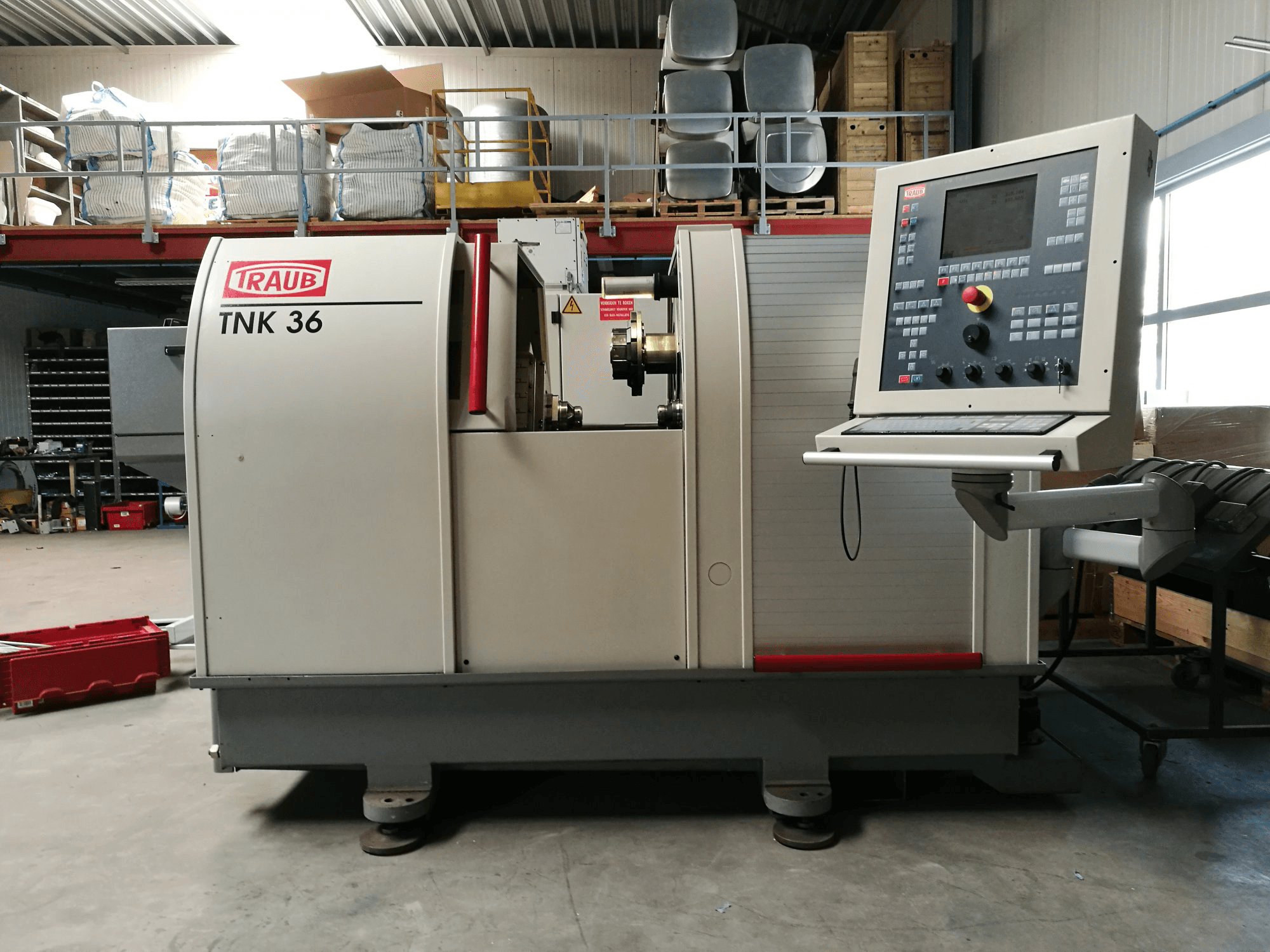

TRAUB TNK 36 Lathe

This TRAUB TNK 36 Lathe from 2003 was manufactured in Germany and has been operative for 16817 production hours since then. Equipped with a TRAUB TX 8I Control unit, this turning machine has mainly worked with 33 mm steel pipes during the past. This well maintained machine with powerful tool drives comes together with several additional equipment items such as a chip conveyer or a coolant tank.

Overview

brand: TRAUB
year: 2003
MODEL: TNK 36
production hours: 16817
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: TRAUB

Technical Information - TRAUB TNK 36

General Data

Measurements width: 3400 mm
Measurements depth: 1250 mm
Measurements height: 1700 mm
Machine weight: 4000 kg

Control Unit

Brand: TRAUB
Model: TX 8I

Main drive

Number of spindles: 2
Spindle speed range: 6300 1/min

Movement

X-AXIS Movement: 370 mm
Z-AXIS Movement: 225 mm

Workpiece

Workpiece drm: 36 mm
Workpiece x: 50 mm
Workpiece z: 100 mm
Workpiece weight: 20 kg

Turret

Number of turrets: 1
Max tool length: 42 mm

Tools

Max weight: 25 kg
Max tool diameter: 6 mm
Max tool length: 250 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kVA
Chip conveyor: Yes

Additional Equipment

- Coolant tank 300L
- Alarm lamp
- Chip conveyer
- Electric Housing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
