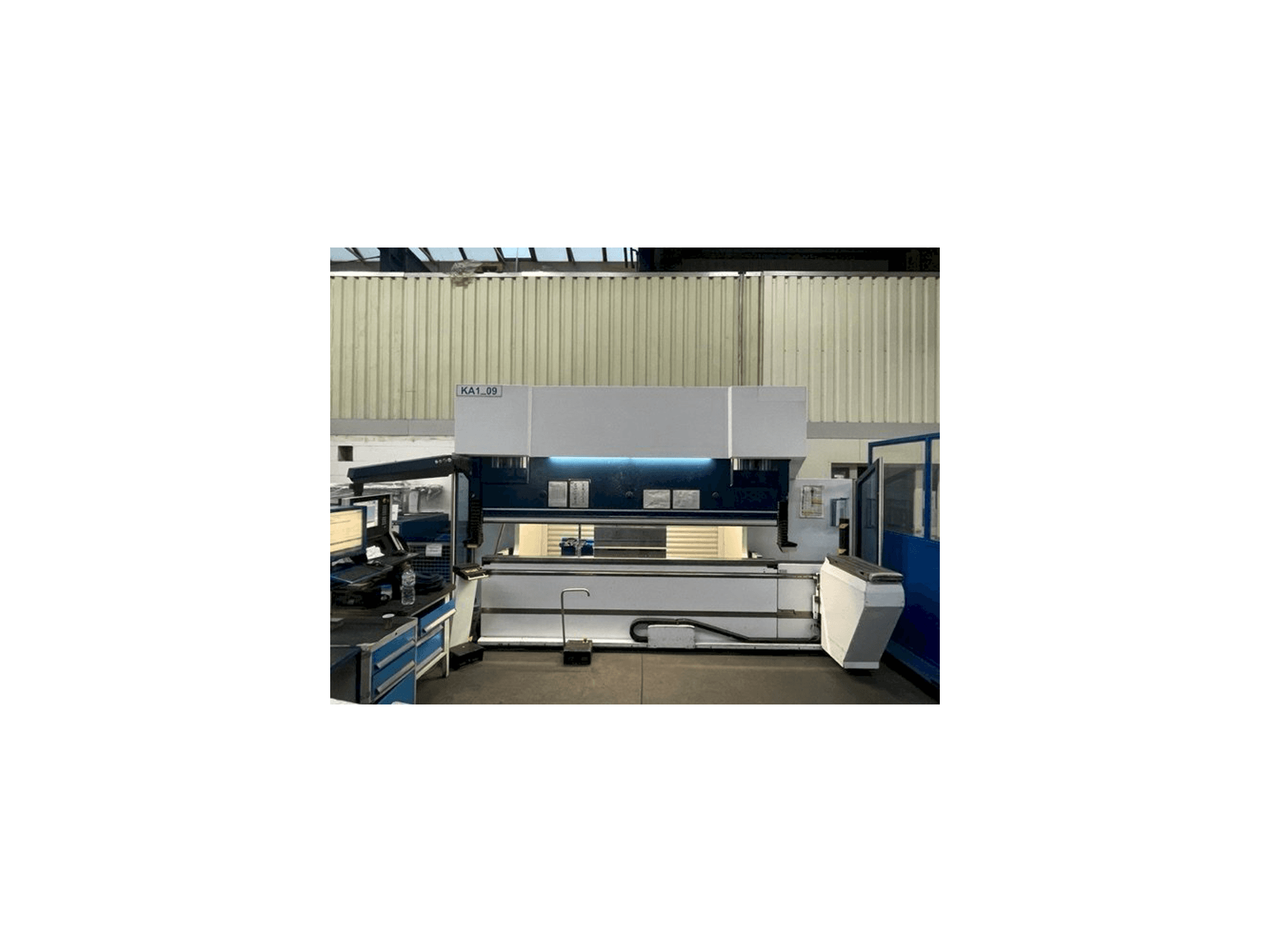

Front view of Trumpf TruBend 5130  machine

TRUMPF TruBend 5130

TRUMPF - TruBend 5130

2007

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Trumpf TruBend 5130 Bending machine was manufactured in the year 2007 in Austria and has 103712 production hours, of which 76454 are cutting hours. It is equipped with a TASC 6000 control unit. The machine has a pressing force of 1300 kN and a bending length of 3230 mm.

Overview

  • brand: TRUMPF
  • year: 2007
  • MODEL: TruBend 5130
  • production hours: 103712
  • application type: Bending
  • Location: Germany
  • machine type: Bending machines
  • availability: Sold
  • control unit brand: TASC 6000
  • GINDUMAC ID: DE-BEN-TRU-2007-00002

Technical Information

General Data

  • Measurements width: 4847 mm
  • Measurements depth: 3150 mm
  • Measurements height: 2837 mm
  • Machine weight: 10900 kg

Control Unit

  • Brand: TASC 6000

Main drive

  • Pressing force: 1300 kN
  • Bending length: 3230 mm

Media

  • Main electronic connection: 400 V / 50 Hz

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Installation height: 385 mm
      • - Free stand passage: 2690 mm
      • - Stable machine frame as welded construction in all-steel design
      • - Pressure beam stress-relief annealed
      • - 4 cylinder top drive
      • - Backgauge with 6 axes
      • - Hydraulic upper and lower tool clamping (wila pick-up system)
      • - Cnc crowning
      • - Cnc lower tool shift
      • - Bend guard
    • Qualitative Machine Benefits:
      • - Preparation for acb
      • - Work area lighting rear and front
      • - Cnc control with touch screen
      • - Magnification stroke +230mm
      • - Heavy duty support bracket
      • - Bending aid first arm
      • - Table extension
      • - Table widening
      • - Parking position long (900mm)

    Extra information

    • - no tools included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
