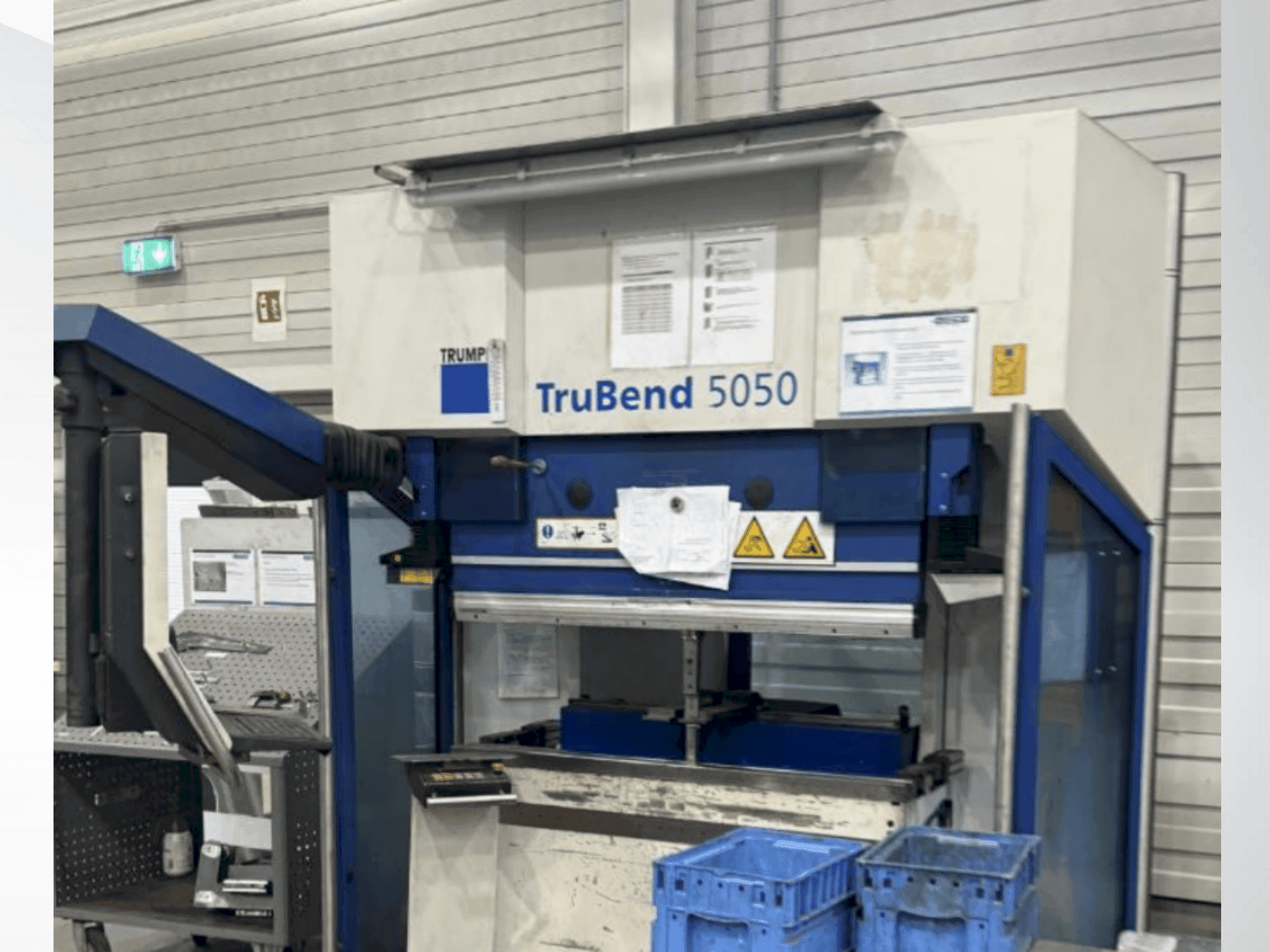

This TRUMPF TruBend V5050 press brake was manufactured in 2007. It features a press force of 500 kN and a bending length of 1275 mm. Equipped with a stable machine frame, electro-hydraulic upper drive, and a 2-axis backgauge system, it ensures precision and efficiency. Ideal for high-quality bending operations. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TruBend V5050
- application type: Bending
- Location: Germany
- machine type: Press Brake
Additional Information
Additional equipment
- Stable machine frame as a welded construction in all-steel construction / Pressure beam with high bending strength / Spherical bearing of the pressure beam with pressure beam inclined position / Electro-hydraulic upper drive with 2-cylinder technology / Proportional valve technology and switchable double pump / Modern block hydraulics with control valves mounted on the cylinder / Electronic pressure compensator / Measuring system with centrally mounted glass scales and temperature compensation / Upper tool holder system "New Standard Clamping" manual, hardened, self-centering, for vertical tool changes / Lower tool holder with hydraulic clamping, hardened / Programmable lower tool displacement (pneumatic, 2 positions) / 2-axis backgauge system with rack and pinion drive for X and R axes, 2 stop fingers with secure front adjustment / Machine control: TRUMPF TASC 6000 / Control panel with LCD keypad, foot switch for emergency up, down, and emergency stop / Safety device: integrated side doors / Control cabinet cooling (air-to-air heat exchanger) / Oil cooler / Network-capable / Modern machine design / Installation, commissioning, and instruction / Hydraulic upper tool clamping / BendGuard / TruBend documentation
Machine Benefits
Technical Machine Benefits
- Press force: 500 kn
- Bending length: 1275 mm / free column clearance: 1040 mm / installation height: 385 mm
- The machine was serviced annually by trumpf.
- Trumpf maintenance contract.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
