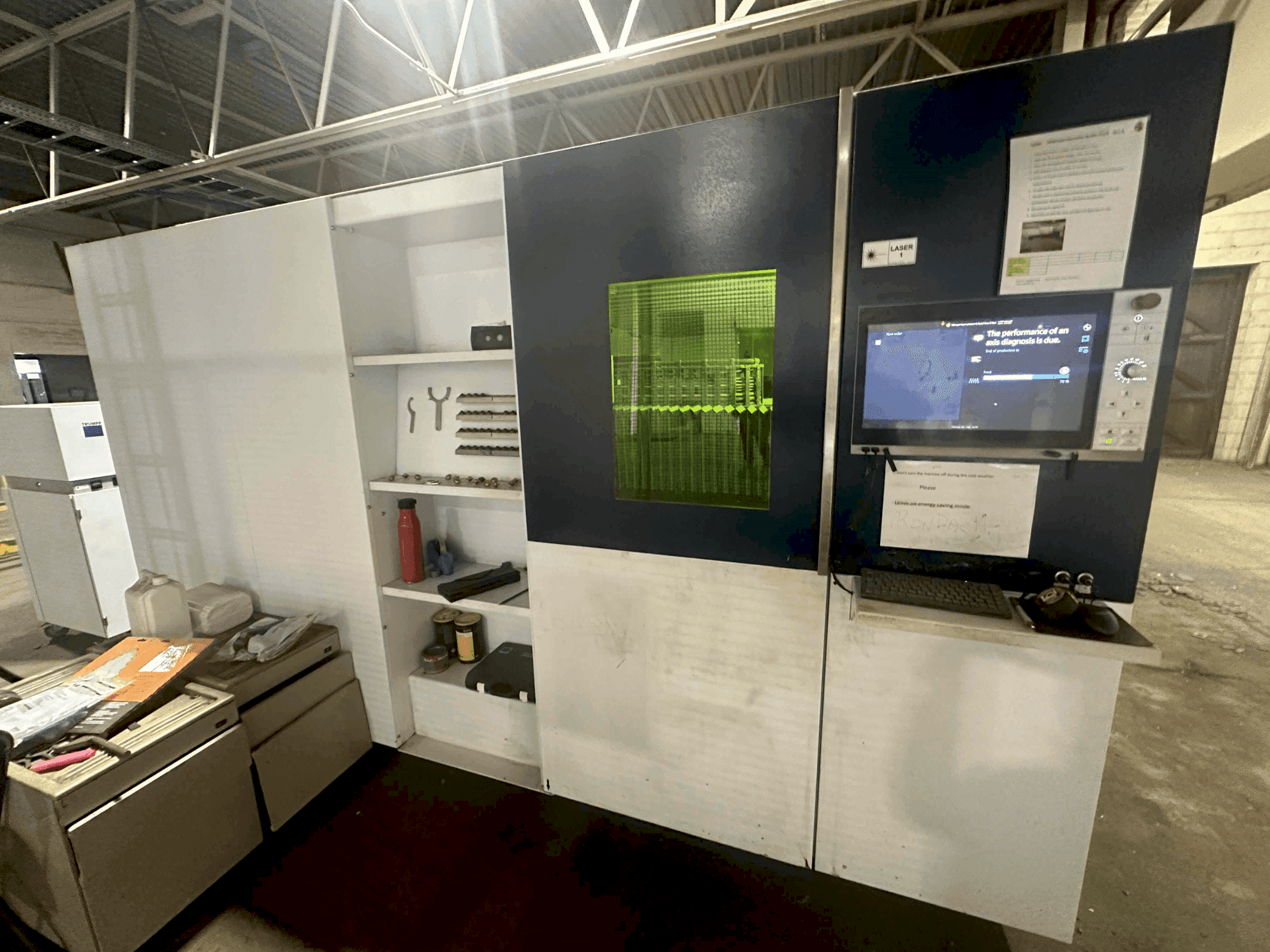

Front view of TRUMPF Trulaser 1040 Fiber  machine

TRUMPF - Trulaser 1040 FiberIE-LAS-TRU-2021-00001

270,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This laser cutting machine was manufactured in 2021. It features a 3 kW Trumpf laser, capable of cutting steel up to 20 mm thick, and includes a KLH chiller and a Camfil dust extractor. With a large 4m x 2m bed and additional handling equipment, it's ideal for efficient, high-volume production. The machine is in excellent condition with only 1900 beam-on hours. For more information about this laser cutting machine, please reach out to us.

Overview

  • brand: TRUMPF
  • year: 2021
  • MODEL: Trulaser 1040 Fiber
  • application type: Cutting
  • Location: Ireland
  • machine type: Fiber Laser Cutting Machine
  • availability: Immediately

Technical Information - TRUMPF Trulaser 1040 Fiber

General Data

  • Measurements width: 11150 mm
  • Measurements depth: 6650 mm
  • Measurements height: 2200 mm
  • Machine weight: 12000 kg

Control Unit

  • CNC language customizable: Yes

Main drive

  • Laserpower: 3 kW

Movement

  • X-AXIS Movement: 4000 mm
  • Y-AXIS Movement: 2000 mm

Workpiece

  • Workpiece x: 4000 mm
  • Workpiece y: 2000 mm
  • Workpiece z: 20 mm
  • Workpiece weight: 2000 kg

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 15 mm
  • Aluminum: 15 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 35 kVA
  • Internal cooling: Yes

    Additional Equipment

    • - Trumpf Laser TruDisk 3001 P Resonator
    • - Trumpf Laser TruDisk 3001 P Resonator
    • - Camfil Entry 2000 ASI Dust Extractor
    • - R-W-M Crane Hoist
    • - Single Pillar Crane
    • - Pneumatic Sheet Handler with 8 x Suction Cups

    Additional Information

      Machine history

      • Material type: Mild steel
      • material thickness: 4 mm
      • End product: Parts for shuttering
      • Industries: Construction industry

      Machine Benefits

      • Technical Machine Benefits:
        • - 4m x 2m bed size
        • - Includes gantry crane and sheet handler
      • Qualitative Machine Benefits:
        • - Very little beam on hours
        • - Excellent condition

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
