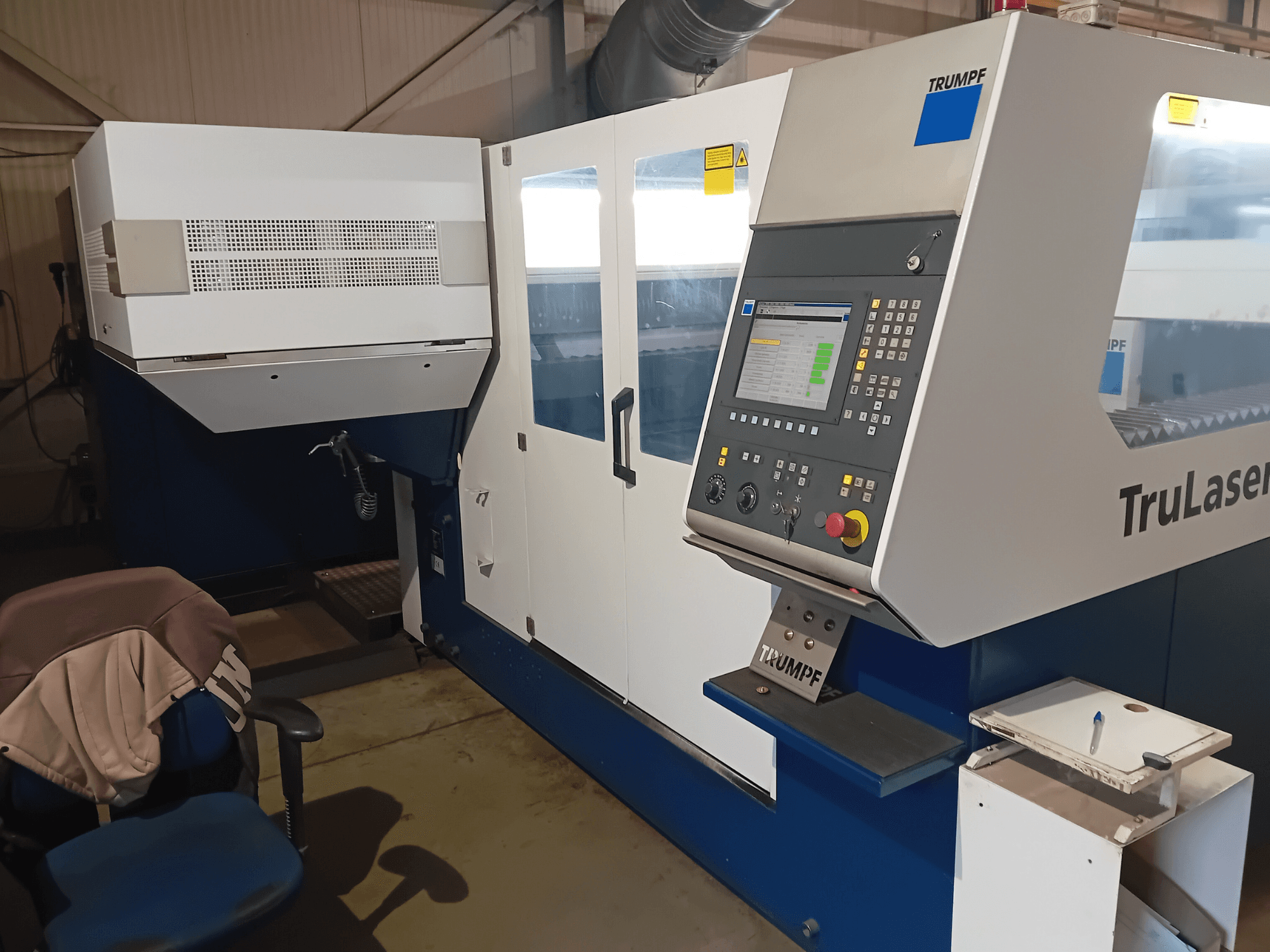

TRUMPF TruLaser 3030 CO2 laser cutting machine, front view, showing control panel and operator station.
TRUMPF TruLaser 3030 CO2 laser cutting machine, front view, showing control panel and operator station.

TRUMPF - TruLaser 3030 HU-CUT-TRU-2011-00002

35,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis TRUMPF TruLaser 3030 was manufactured in 2011. It features a working area of 3000 x 1500 mm and a laser power of approximately 5–6 kW. The machine is designed for high-performance industrial CO₂ laser cutting, providing stable and precise cutting performance for serial production. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser 3030 CO₂ laser cutting machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2011
  • MODEL: TruLaser 3030
  • application type: Cutting
  • Location: Hungary
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 840D CNC

Dimensions

  • Machine Height: 2200 mm
  • Machine Length: 9300 mm
  • Machine Weight: 12000 kg
  • Machine Width: 4700 mm
  • Table Load: 700 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 115 mm

Technical Specification

  • Laser Power: 6 kW
  • Positioning Accuracy: 0.05 µm

Additional Information

  • Max. rapid traverse speed (X+Y): up to 140 m/min

  • Max. material thickness (mild steel): approx. 25 mm

  • Positioning accuracy: approx. ±0.05 mm

  • Load capacity: approx. 700–900 kg (depending on configuration)

  • General features: high-performance industrial CO₂ laser cutting system; stable and precise cutting for serial production; TRUMPF quality with long service life; suitable for steel, stainless steel and aluminium processing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
