➤ Used TRUMPF TruLaser 5030 For Sale | gindumac.com

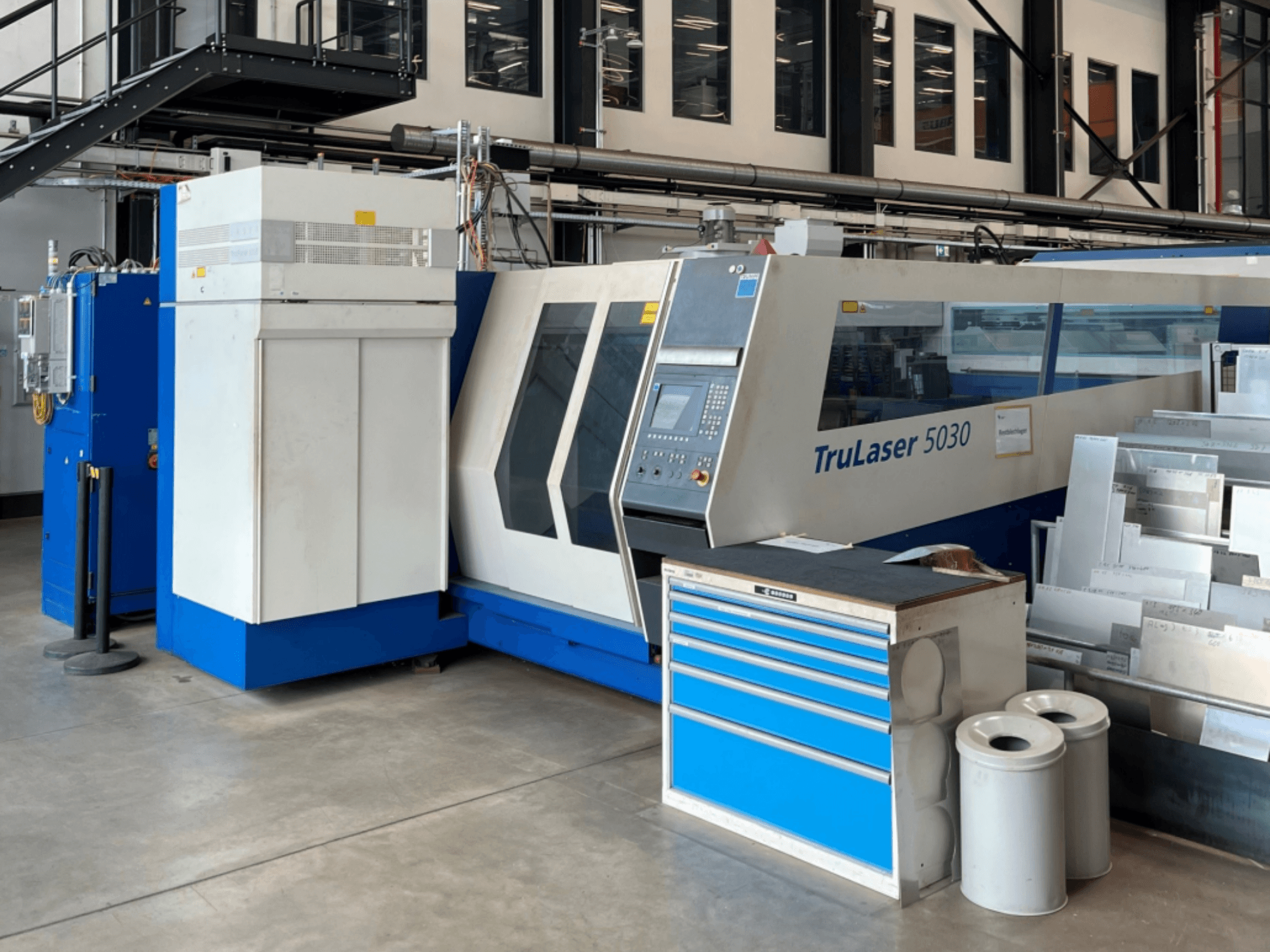

This 3-axis TRUMPF TruLaser 5030 was manufactured in 2007. It features a powerful 6000 W laser and a maximum sheet size of 3000 mm x 1500 mm. The machine is equipped with a Siemens Sinumerik 840D control unit and a TRUMPF LiftMaster automation system for efficient loading and unloading. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser 5030 CO2 laser cutting machine we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 5030
production hours: 8359
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Movement

Number of Axes: 3
X-axis Travel: 3000 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 115 mm

Technical Specification

Laser Power: 6 kW

Additional Information

- Max. Sheet Size: 3000 mm x 1500 mm

- Control Unit: Siemens Sinumerik 840D

- Operating Hours (Laser On): 33,612 h

- Operating Hours (Beam On): 8,359 h

- Last Maintenance in 2025

- Drive System: Dynamic Gantry Drive with High-Precision Linear Drives

- Automation System: TRUMPF LiftMaster Loading and Unloading System

- Pallet Changer: Automatic Shuttle Operation Pallet Changer

- Cutting Head: Universal Cutting Head for various material thicknesses

- Cooling Unit: Included

- Safety Equipment: Light Barrier

- Connectivity / Interfaces: USB Interface (software-enabled), RJ-45 Network, Ethernet for Teleservice

- Additional Features: Capacitive Height Control, Automatic Tool Measurement, Process Optimization Software Package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
