➤ Used TRUMPF TrumaBend V130 Press For Sale | gindumac.com

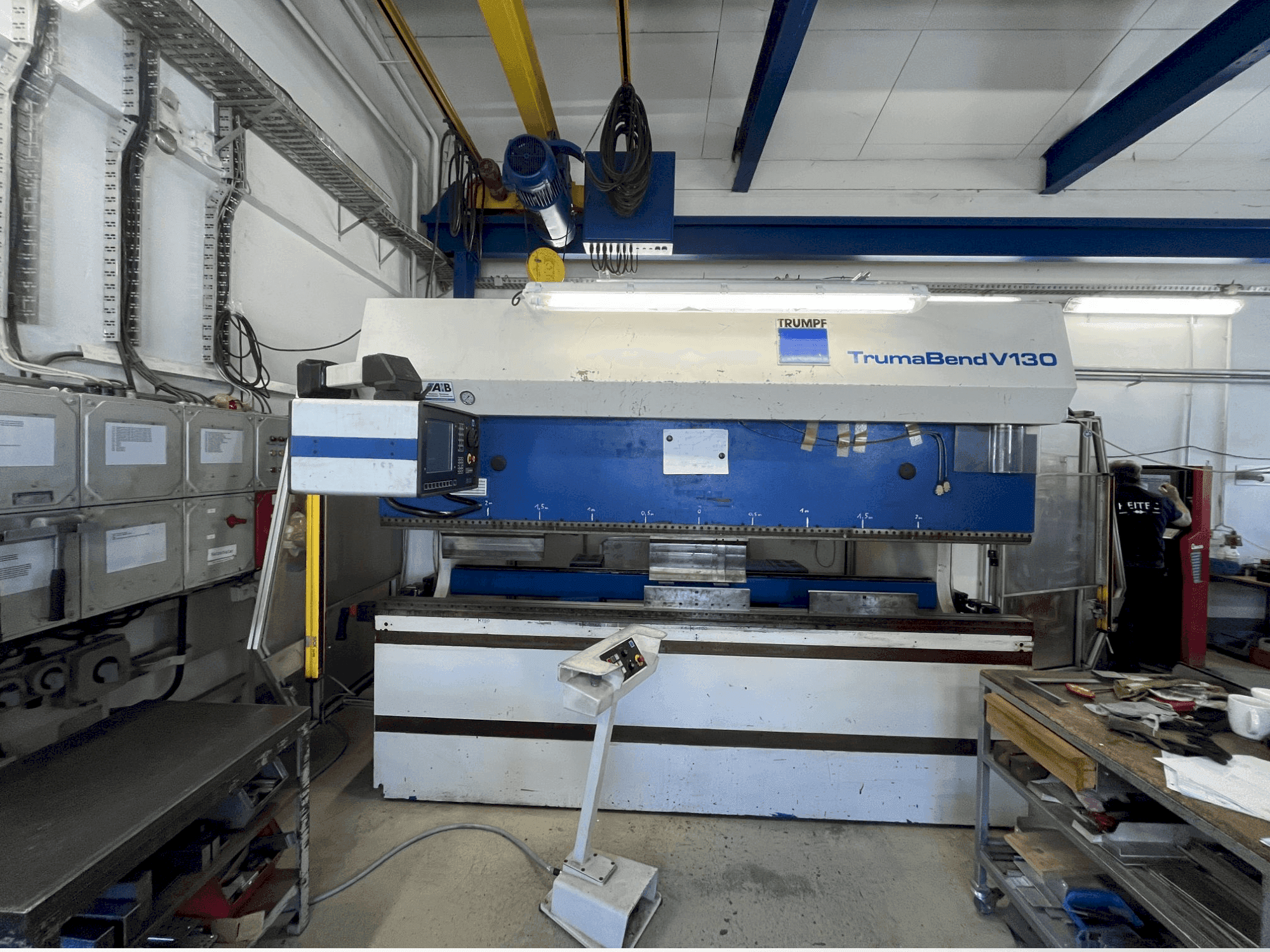

This 4-axis TRUMPF TrumaBend V130 press brake was manufactured in 2000. It features a CNC electro-hydraulic system with DELEM CNC control, offering precise bending with a pressure of 130 tons and a folding length of 3060 mm. The machine includes multiple CNC-controlled axes for enhanced flexibility and accuracy in operation. Consider the opportunity to buy this TRUMPF TrumaBend V130 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2000
MODEL: TrumaBend V130
production hours: 39700
application type: Bending
Location: Germany
machine type: Press Brake
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend V130

Control Unit

Brand: DELEM
Model: DA 65

Additional Information

Additional equipment

CNC electro-hydraulic press brake / CNC Control Model: DELEM CNC control model DA 65 / Swivel control panel, front left / 2D graphic programming & product display / Tool & program library / CNC Controlled Axes: Y1 + Y2 / X / R / Z1 + Z2 / I axis / CNC Controlled Backgauge (X axis) / CNC-Controlled Height Adjustment of the Backgauge (R axis) / CNC-Controlled Adjustment of the Fence Fingers (Z axis) / CNC-Controlled, Pneumatic Die Adjustment (I axis) / WILA Manual Table Crowning, incl. Analog Value Display / TRUMPF Hydraulic Upper Tool Clamping / TRUMPF Manual Lower Die Clamping / 1x Free-Moving 2-Hand / Foot Control / Rear Safety Device (Sliding Door)

Machine Benefits

Technical Machine Benefits

Weight (kg): 11250 / dimensions of machine (lxwxh): 3640 x 2210 x 2375 mm
Total power requirement: 16. 0 kva / voltage: 400 v
Pressure: 130 t / folding length: 3060 mm / stand width: 2690 mm / stand projection: 410 mm / stroke: 215 mm / installation height: 385 mm / infeed speed: 200 mm/sec / working speed: 1-10 mm/sec / retraction speed: 135 mm/sec / tiltable: +/- 10 mm
Table width: 120 mm / table height: 1050 mm
Compressed air: 5. 0 - 7. 0 bar / oil capacity: 250 l / operating pressure: 340 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
