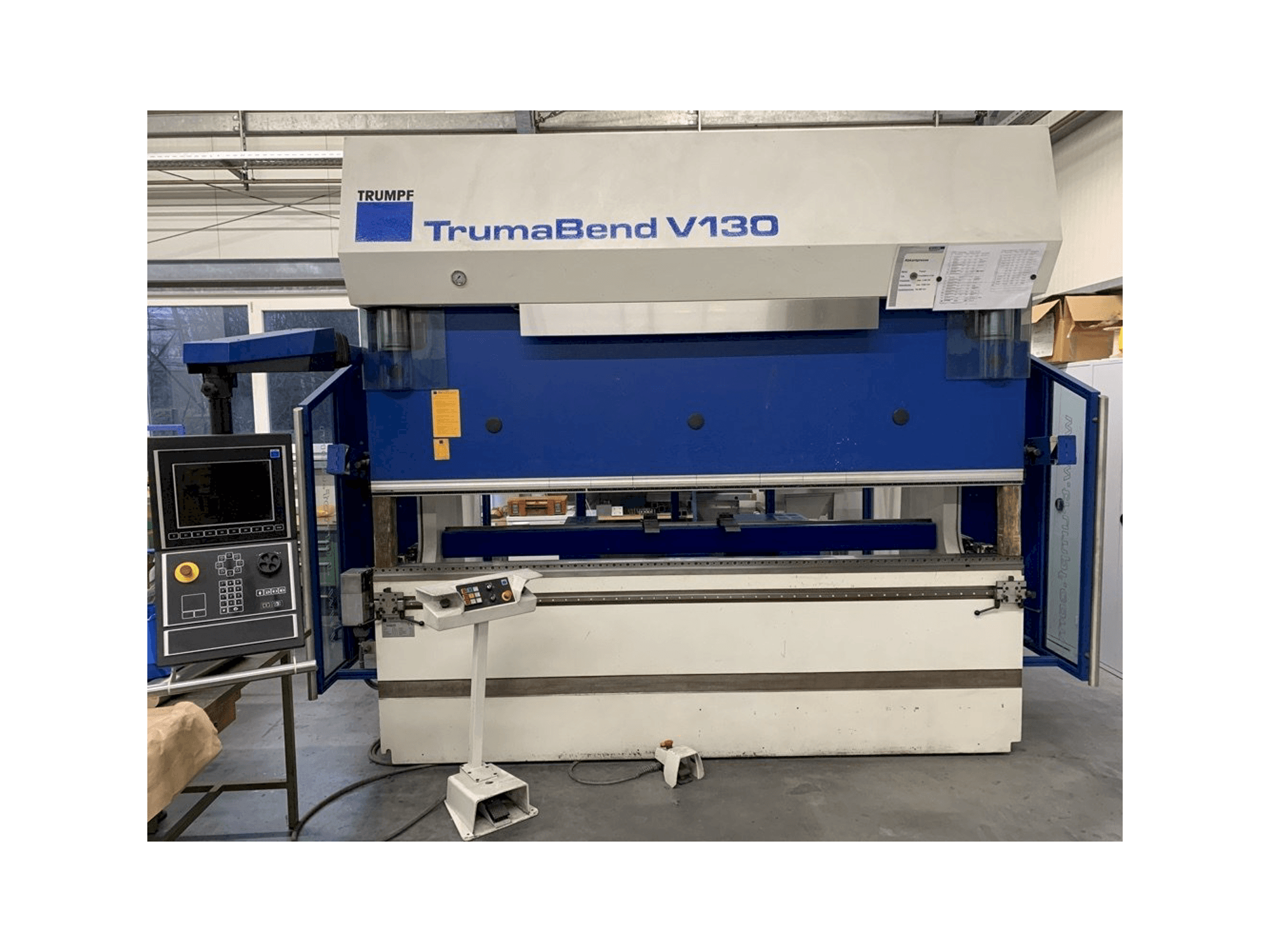

Front view of Trumpf TrumaBend V130X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V130X

Photo Gallery

TRUMPF - TrumaBend V130XDE-BEN-TRU-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TrumaBend V130X

This Trumpf TrumaBend V130X Bending Machine was manufactured in the year 2004 in Austria. It has a record of 11927 production hours. This machine can operate with a nominal pressing force up to 1300 kN and a bending length 3060 mm.

Overview

brand: TRUMPF
year: 2004
MODEL: TrumaBend V130X
production hours: 11927
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V130X

General Data

Measurements width: 2060 mm
Measurements depth: 3640 mm
Measurements height: 2885 mm
Machine weight: 12950 Kg

Main drive

Pressing force: 1300 kN
Bending length: 3060 mm
Throat: 410 mm
Stroke: max. 365 mm

Media

Power consumption: 27.0 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

4 axis backgauge
Cnc control: delem
Max. Operating pressure 340 bar
Slow-down delay 95 ms
Safety distance 190 mm
Y-operating speed: 1-10 mm/s
Y-rapid speed: 200 mm/s
Y-return speed: 135 mm/s
Beam entry: 535 mm
Distance between uprights 2690 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
