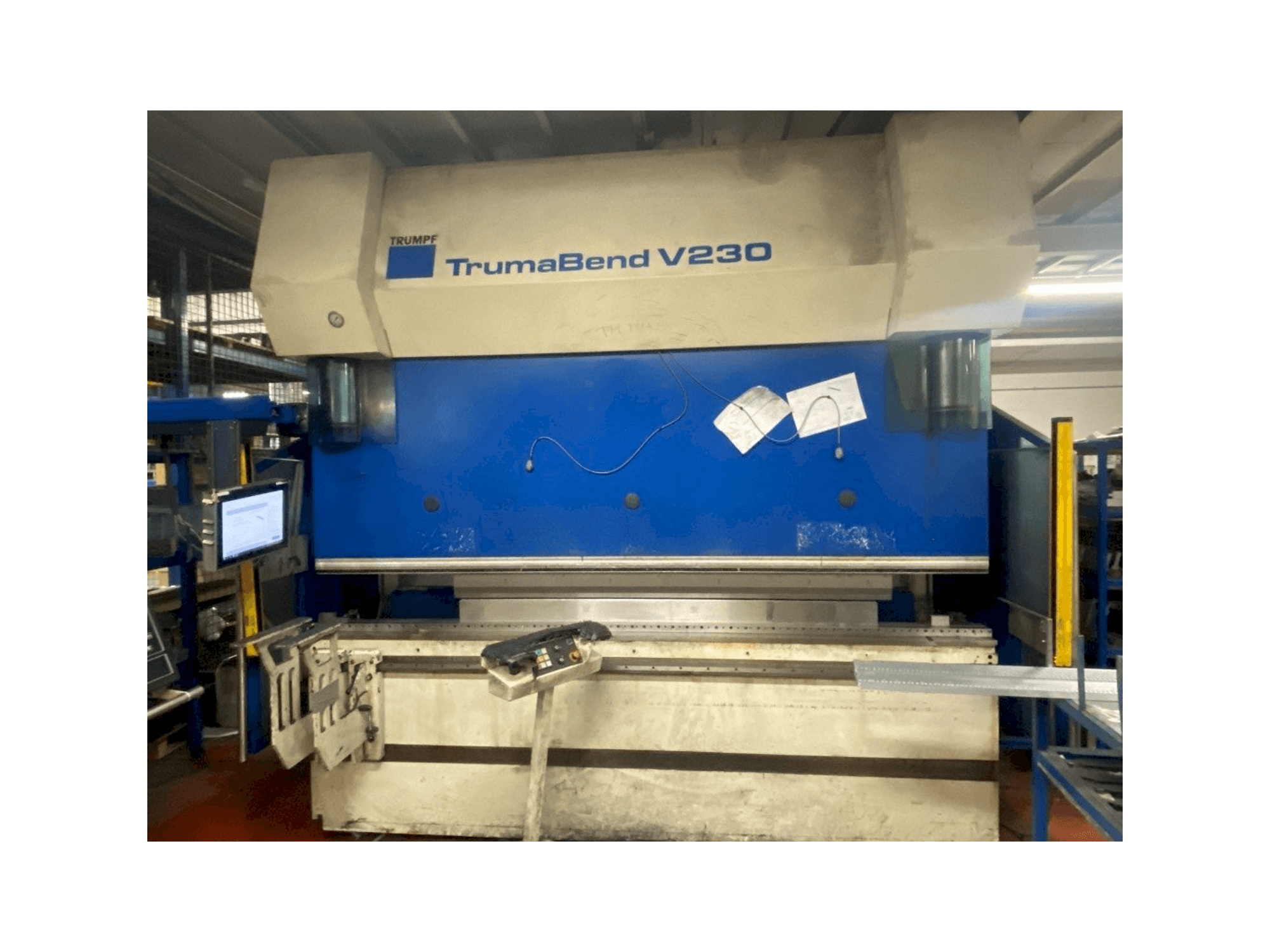

Front view of Trumpf TrumaBend V230  machine

TRUMPF TrumaBend V230

TRUMPF - TrumaBend V230

2003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

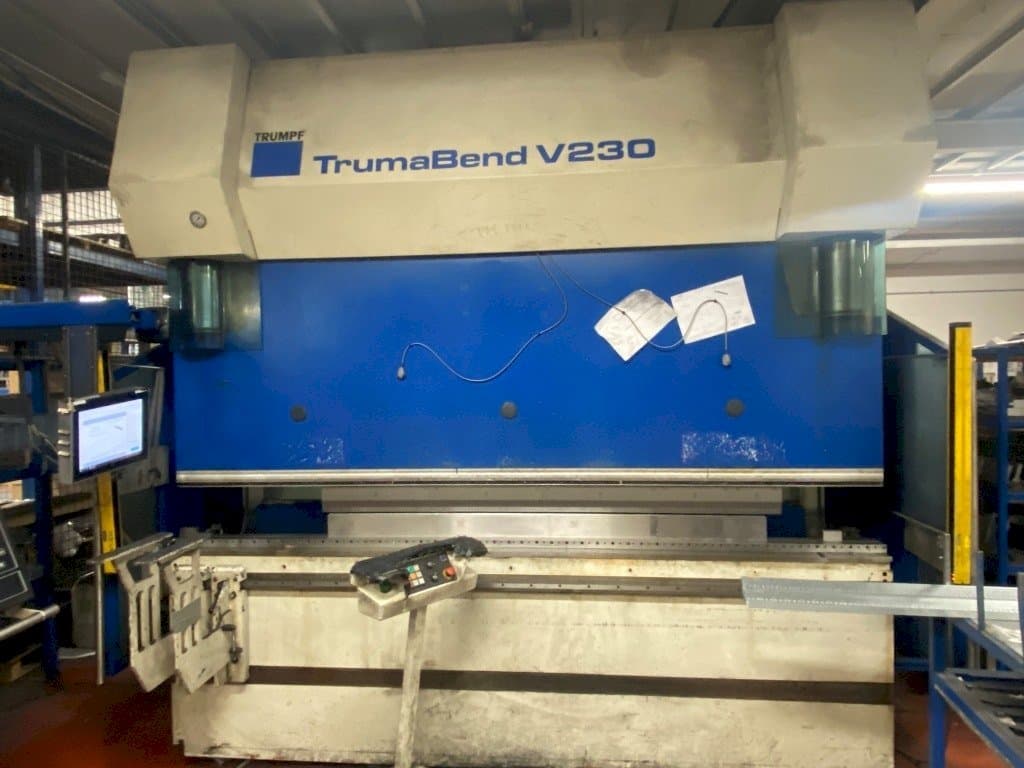

This Trumpf TrumaBend V230 Bending Machine from 2003 was built in Germany. Operated through a DELEM DA69 control unit. This 7 axis machine can perform with a pressing force of 2300 kN, bending length of 3060 mm.

Overview

  • brand: TRUMPF
  • year: 2003
  • MODEL: TrumaBend V230
  • application type: Bending
  • Location: Ireland
  • machine type: Bending machines
  • availability: Sold
  • control unit brand: Delem
  • GINDUMAC ID: IE-BEN-TRU-2003-00002

Technical Information

General Data

  • Measurements width: 3660 mm
  • Measurements depth: 2310 mm
  • Measurements height: 3095 mm
  • Machine weight: 18210 kg

Control Unit

  • Brand: Delem
  • Model: DA69
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Pressing force: 2300 kn
  • Bending length: 3060 mm
  • Number of axis: 7

Workpiece

  • Workpiece x: 600 mm
  • Workpiece y: 3060 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 27,2 kva

Additional Information

    Machine history

    • Material type: Mild steel
    • material thickness: 2 mm
    • End product: Enclosures

    Machine Benefits

    • Technical Machine Benefits:
      • - 7 axis machine y1,y2,x,delta x,z1,z2,r
      • - 5 axis back gauge x,delta x,z1,z2,r
      • - Cnc crowning
      • - Safety guards
      • - Distance between side frames: 260mm

    Extra information

    • - No Tooling Included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
