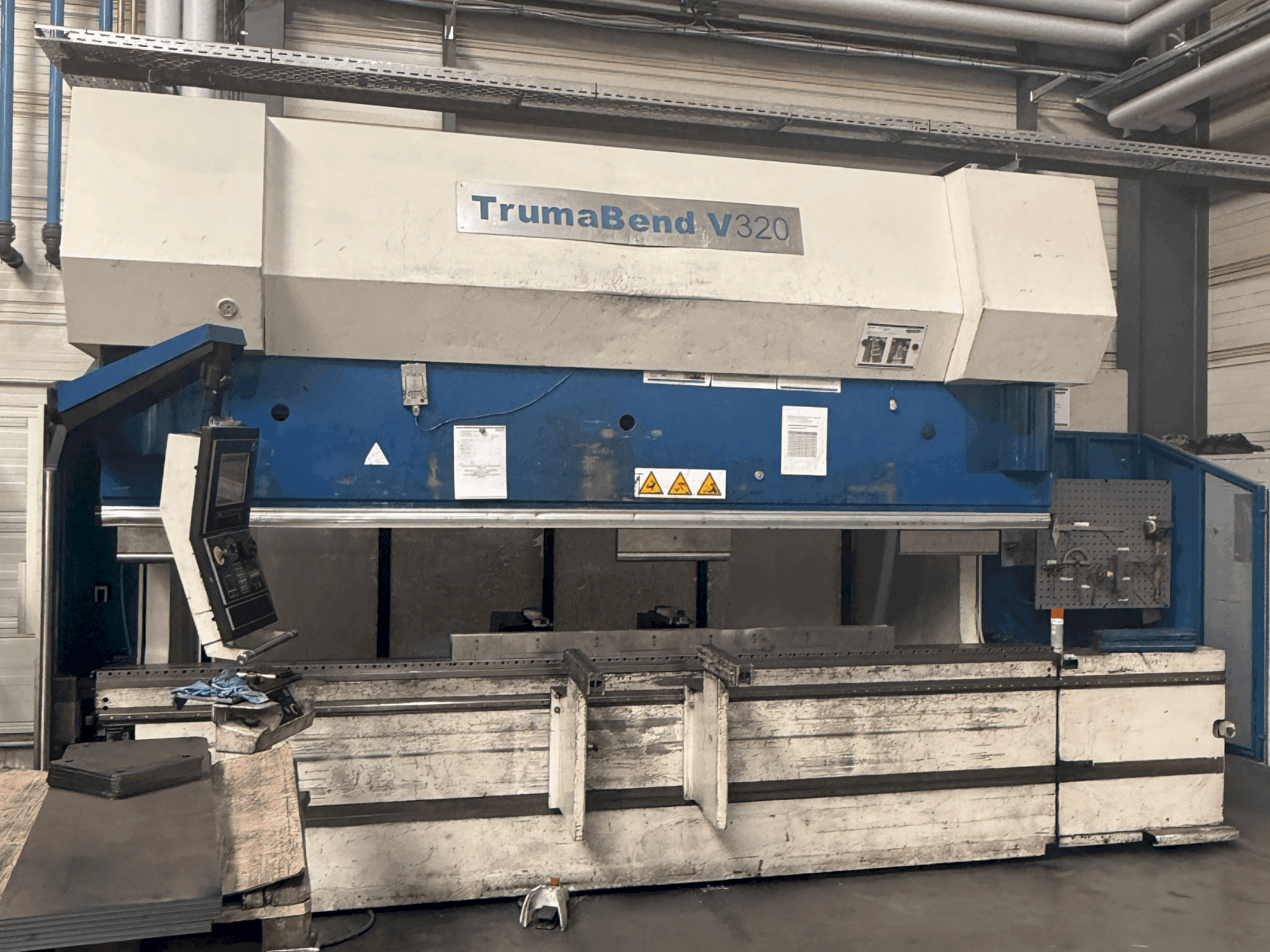

Front view of TRUMPF TrumaBend V320 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V320

Photo Gallery

TRUMPF - TrumaBend V320DE-BEN-TRU-2003-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TrumaBend V320 Press For Sale | gindumac.com

This TRUMPF TrumaBend V320 press brake was manufactured in 2003. It features a press force of 3200 kN and a bending length of 4080 mm. Equipped with a 2D graphic control DA 69 on a Windows platform and a 10.4" color screen, it ensures precision and ease of use. The machine includes a sturdy all-steel frame and electro-hydraulic top drive. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2003
MODEL: TrumaBend V320
production hours: 47953
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V320

Dimensions

Machine Weight: 24000 kg

Technical Specification

Bending Length: 4080 mm
Pressing Force: 3200 Kn

Additional Information

Additional equipment

Backgauge system: 5-axis backgauge system with control cabinet air conditioning
Safety device: BendGuard safety device
Foot switch

Machine Benefits

Technical Machine Benefits

Sturdy machine frame with welded all-steel construction
Pressure beam with high bending strength
Upper tool holder system "modufix", manual
Lower tool holder for ev dies, manual clamping, movement programmable
Cnc backgauge with rack and pinion drive for x and r axes
Safe movement of the stop fingers from the front
Electro-hydraulic top drive via proportional valves
Modern block hydraulics
Control system: 2d graphic control da 69 on windows with 10. 4" color screen

Extra Information

Electrical equipment: For three-phase current 400 V / 50 Hz Paint finish: Textured paint white RAL 9002 / gentian blue RAL 5010 Material handling: 2x support consoles, front; 1x bending aid with 900 mm parking position; Table extension for base table / additional table Table Tool clamping: Hydraulic and hardened upper tool clamping; Hydraulic lower tool clamping Crowning: CNC crowning Workpiece Free column clearance: 3680 mm Installation height: 535 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
