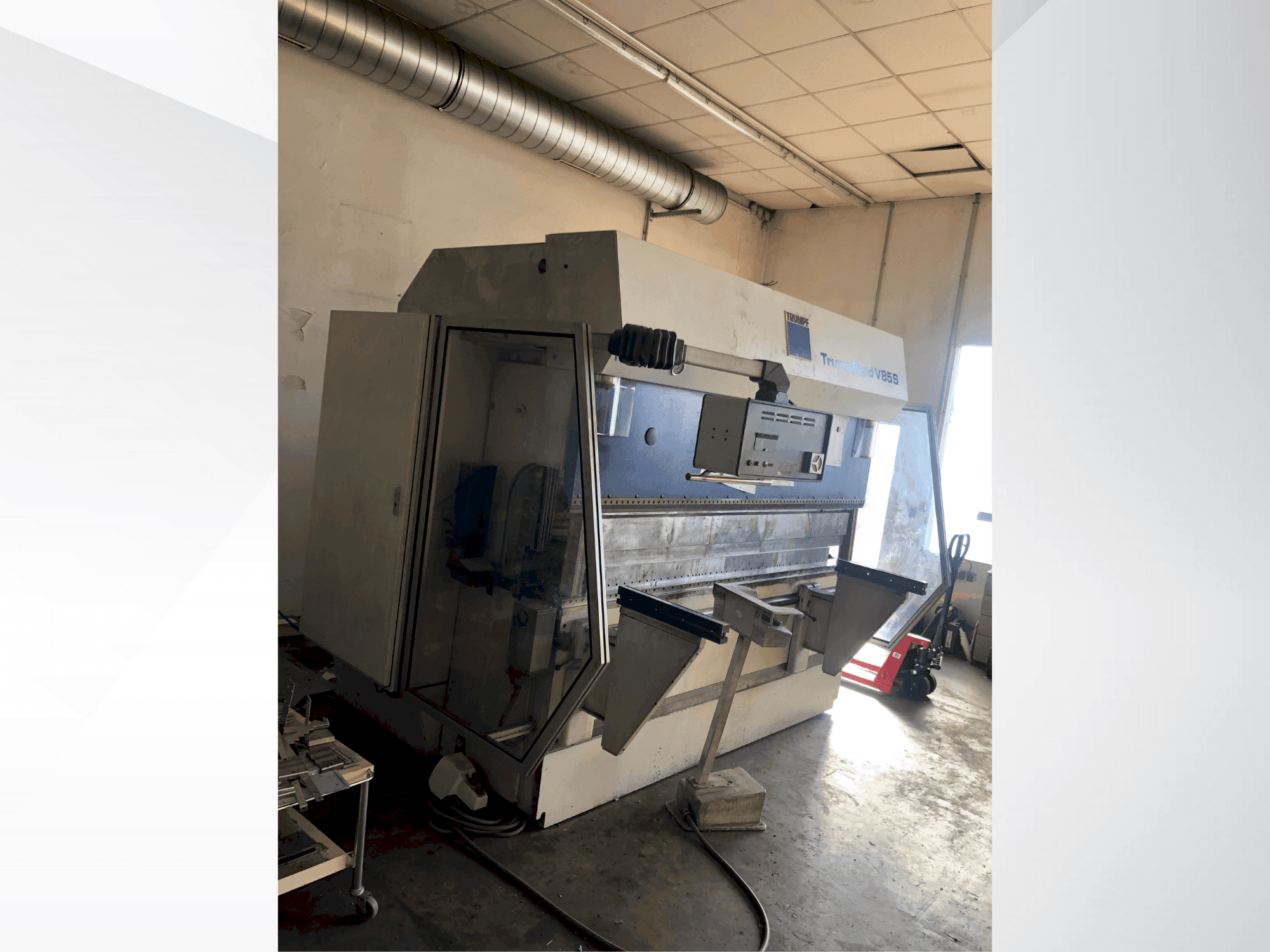

Front view of TRUMPF TrumaBend V85S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V85S

TRUMPF - TrumaBend V85SAT-BEN-TRU-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TrumaBend V85S Press For Sale | gindumac.com

This TRUMPF TrumaBend V85S was manufactured in 2000. A robust press brake with a pressing force of 85 tonnes and a bending length of 2,500 mm. It has been operated for 44,455 hours and can handle substantial workloads with a stroke of 215 mm. Weighing approximately 8,750 kg, the TRUMPF TrumaBend V85S machine we have for sale is built to last. Contact us for further details.

Overview

brand: TRUMPF
year: 2000
MODEL: TrumaBend V85S
production hours: 44455
application type: Bending
Location: Austria
machine type: Press Brake
availability: Sold

Technical Information - TRUMPF TrumaBend V85S

General Data

Measurements width: 3190mm
Measurements depth: 1950mm
Measurements height: 2375mm
Machine weight: 9750 KG

Main drive

Pressing force: 850 kN (85 tonnes)
Bending length: 2550mm
Stroke: 365mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between the columns: 2100 mm
- - X-axis: travel 600mm / positioning accuracy 0. 04mm / travelling speed 0-500 mm/s
- - Y-axis travel 250mm / positioning accuracy 0. 08mm / travelling speed 0-300mm/s / stroke 215mm inclination +-10mm max. / stop range x 860mm
- - Z-axis travel distance 1970mm / positioning accuracy 1. 00mm / travelling speed 0-1000 mm/s
- - Free stand clearance 2260mm
- - Throat 410mm
- - Worktable width 120mm / installation height 385mm / working height with lower tool 100mm: 1050mm
- - Y rapid speed 200 mm/s / y working speed 1-10mm/s / y retraction speed 135 mm/s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
