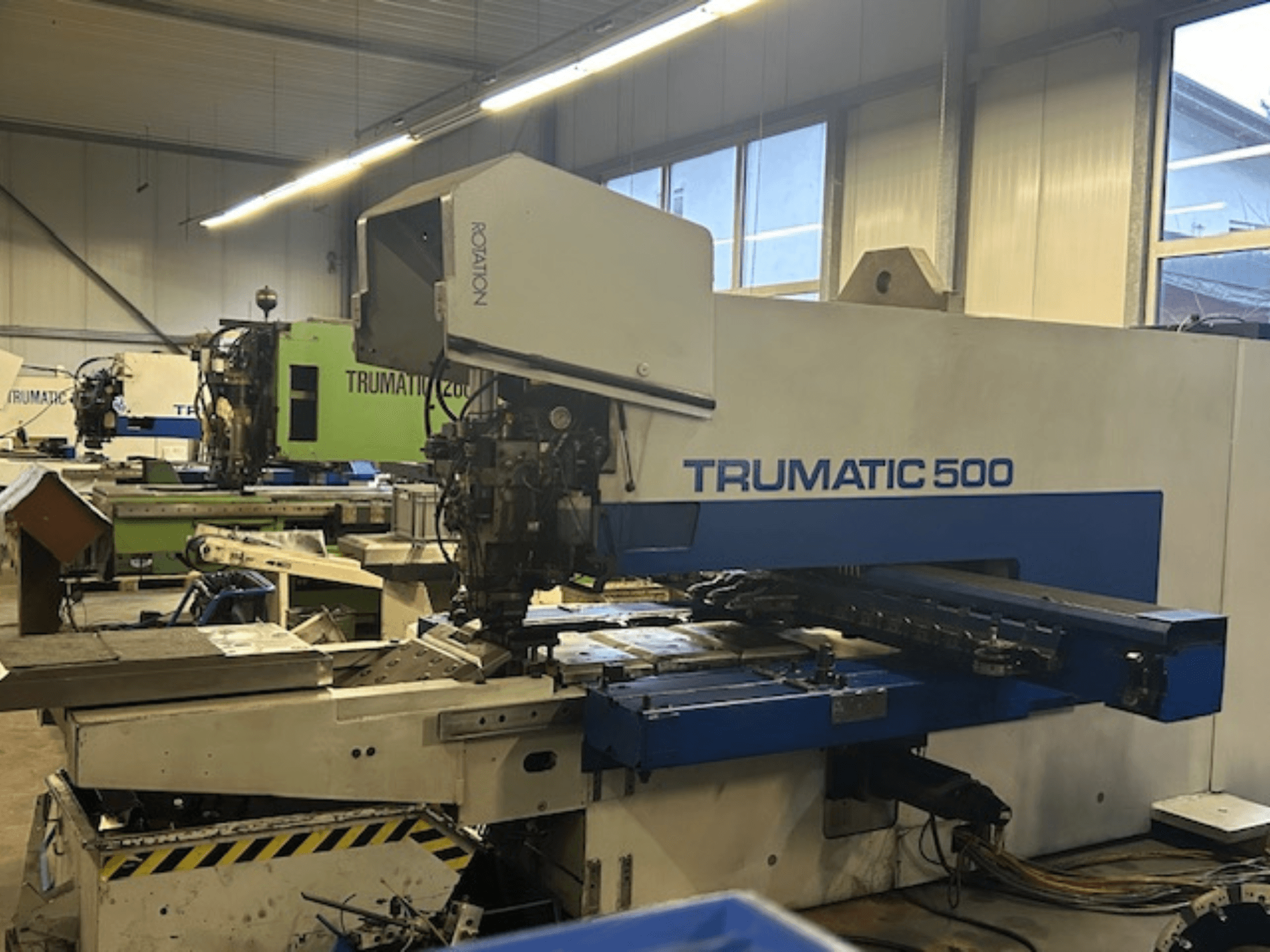

CNC punching machine manufactured in 1995. This TRUMPF TRUMATIC 500 features a maximum punching force of 220 kN and a working area of 2,500 mm. It is multitool capable and comes with 2 tools in a cassette for commissioning. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 500 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 1995
- MODEL: TRUMATIC 500
- production hours: 40507
- application type: Punching
- Location: Germany
- machine type: CNC Punching Machine
- control unit brand: BOSCH
Technical Information - TRUMPF TRUMATIC 500
Control Unit
- Control Brand: BOSCH
Dimensions
- Machine Weight: 11050 kg
Movement
- Number of Axes: 2
- X-axis Travel: 2500 mm
Technical Specification
- Punching Force: 220 Kn
Additional Information
Programming system: Trumagraph
Supply voltage: 400 V / 50 Hz
Connected load: 17 kVA
Control voltage: 24 V
Required fuse protection: 3 × 35 A
Compressed air requirement: 6 bar
Multitool capable
Documentation available
Condition: Partially overhauled
Operating hours: 40,507 h
Additional equipment
2 tools with cassette (for commissioning)
