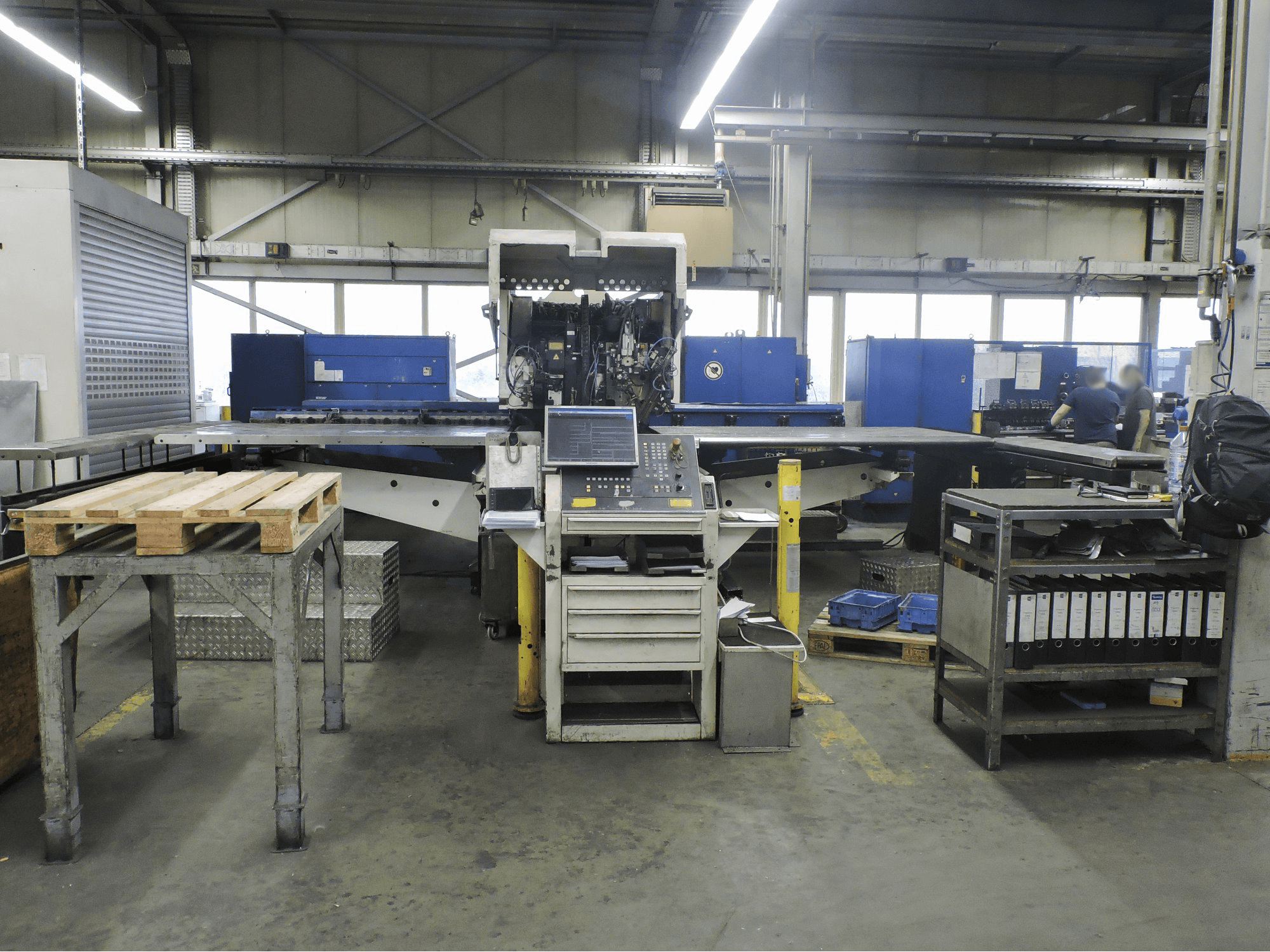

This Trumpf Trumatic 600L Laser Punch Combination Machine was manufactured in Germany in 1997 and has a working record of approximately 95000 working hours. This large span punching machine is equipped with three clamps and a SIEMENS 840D Control unit with RS232 interface. In the past, this equipment has worked mostly on up to 2 mm thick mild steel, but can handle materials with a thickness up to 6 mm and stands in a very good condition, including the complete machine head assembly that has been aligned last year. Station cartridges and tools are included as additional equipment.
Overview
- brand: TRUMPF
- year: 1997
- MODEL: Trumatic 600L
- production hours: 95000
- application type: Punching
- Location: Germany
- machine type: Laser Punch Combination Machine
- availability: Sold
- control unit brand: Siemens
- GINDUMAC ID: DE-PUN-TRU-1997-00001
Technical Information
General Data
- Machine weight: 23000 kg
Control Unit
- Brand: Siemens
- Model: SINUMERIK 840D
- Interface: RS232
Main drive
- Laserpower: 2.2 kW
- Laser type: Co2
- Punching force: 220 kN
- Maximum sheet thickness: 6 mm
- Laser brand: Trumpf
Movement
- X-AXIS Movement: 2500 mm
- Y-AXIS Movement: 1500 mm
Table
- Max punching diameter: 76.2 mm
Tools
- Number of index: 18
- Number of stations: 18
- Max tool diameter: 76.2 mm
Max Material thickness
- Steel: 6 mm
- Stainless steel: 4 mm
- Aluminum: 6 mm
Machine specific data
- Power meas. by software: 1975 W
- Power meas. at head: 2000 W
- Number of cutting heads: 1
- Size of cutting head 1: 5"
- Laser turbine details: Oil turbine
- TASC Version: 3
Media
- Main electronic connection: 400 V
- Power consumption: 66 kVA
- Air pressure: 7 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
