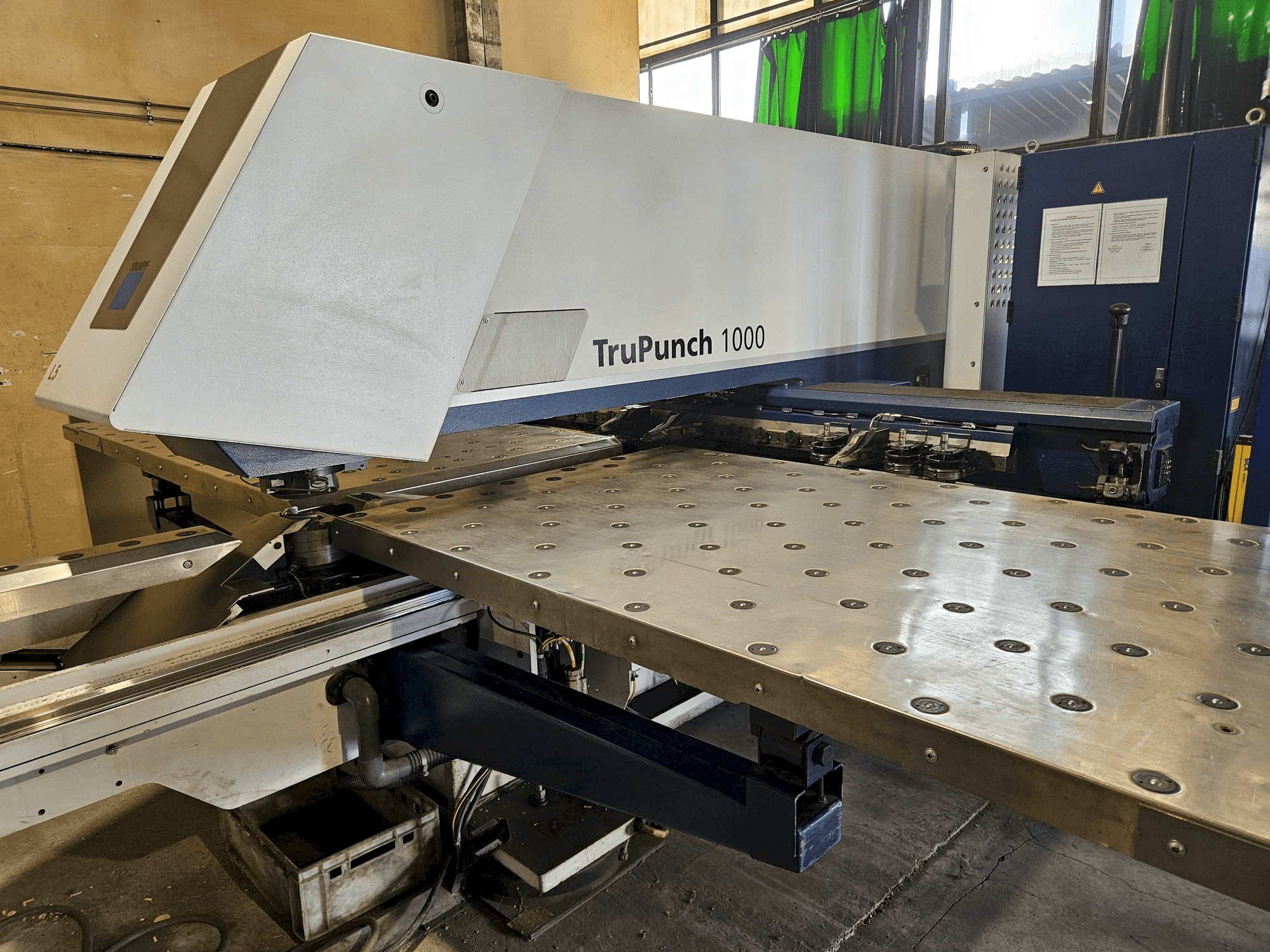

Front view of Trumpf TruPunch 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 1000

Photo Gallery

TRUMPF - TruPunch 1000PL-PUN-TRU-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruPunch 1000 Punching machine

This Trumpf TruPunch 1000 Punching machine was manufactured in the year 2013 in Germany and has 16248 production hours. It is equipped with a Trumpf BOSCH PNC-P control unit. The machine has a punching force of 165 kN.

Overview

brand: TRUMPF
year: 2013
MODEL: TruPunch 1000
production hours: 16248
application type: Punching
Location: Poland
machine type: CNC Punch Press
control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 1000

General Data

Measurements width: 6550 mm
Measurements depth: 7144 mm
Measurements height: 2155 mm

Control Unit

Brand: TRUMPF
Model: PNC-P

Main drive

Punching force: 165 kN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1300 mm

Media

Main electronic connection: 400 V 50 Hz

Additional Information

Additional equipment

Full service history and full documentation available

Machine Benefits

Qualitative Machine Benefits

Included in the offer: 3 tool cassettes with punches dia. 3 , dia. 5, 25x5 - all these tools with peelers, dies + punch and die mounting
The machine is in very good working condition, ready for tests. Full documentation available. Full service history. New pump and line amplifier installed in 2020
Electro-hydraulic punching head
Rotary, single-station tool holder
Programmable downholder
Tool length compensation
Tool lubrication
Chip evacuation through the table
Forming
Extended machine programming

Technical Machine Benefits

Max sheet thickness: 6. 4 mm
Number of tool slots: 15 pcs
Max. Material weight: 150 kg
Tool magazine with 15 tool stations
Maintenance-free servo drives
Repositioning via programmable downholder
Ball table
Part removal
Automatic switch-off
Chip container

Extra Information

offline software licence is not included in the offer
