BOSCHERT - MULTIPUNCH 1250PL-PUN-BOS-2013-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used BOSCHERT MULTIPUNCH 1250 For Sale | gindumac.com

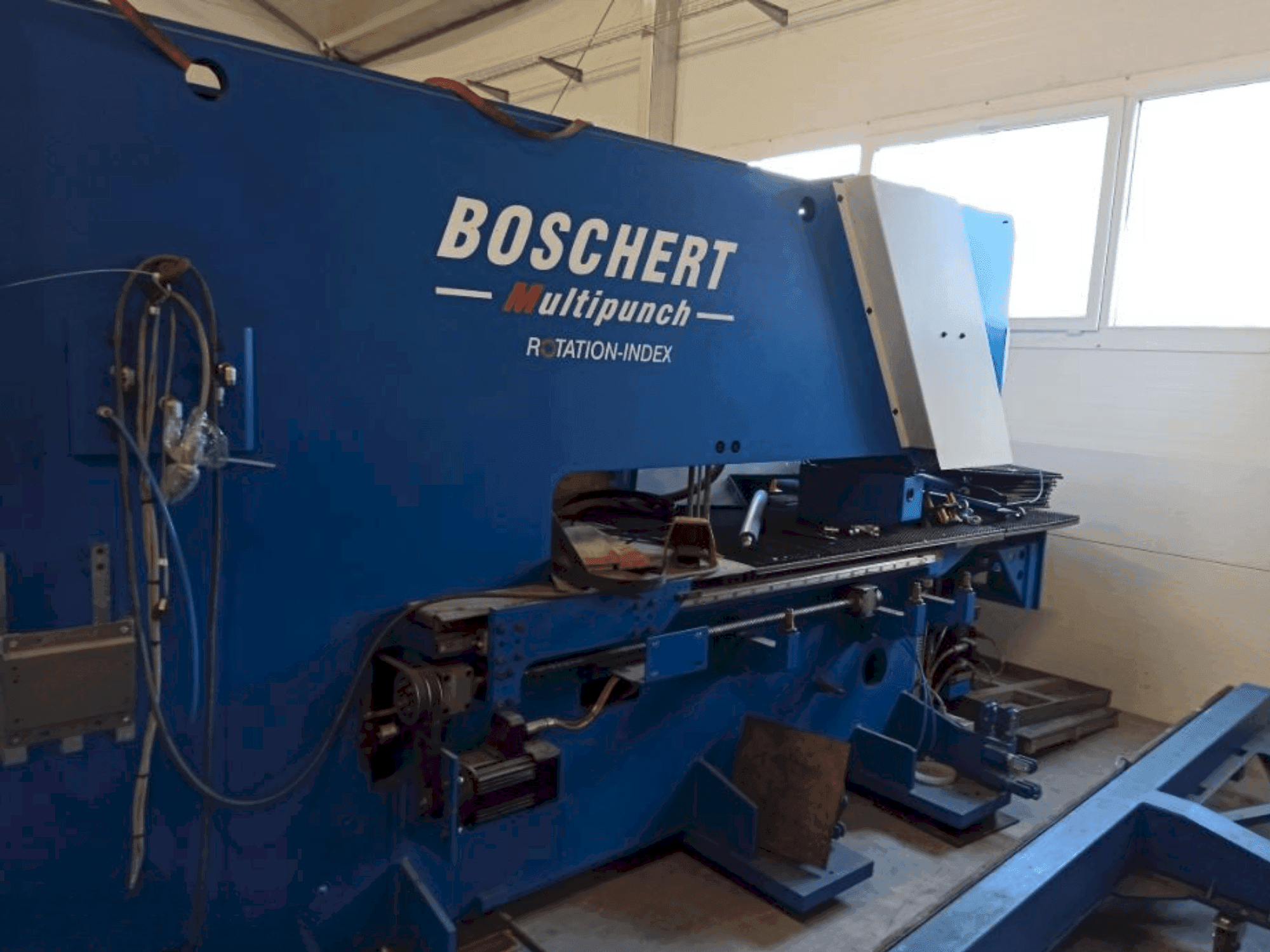

This BOSCHERT MULTIPUNCH 1250 was manufactured in 2013. Ideal for those in need of a reliable CNC punching machine. Contact us for more information.
Overview
- brand: BOSCHERT
- year: 2013
- MODEL: MULTIPUNCH 1250
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
Technical Information - BOSCHERT MULTIPUNCH 1250
Dimensions
- Machine Depth: 1250 mm
- Machine Weight: 14000 kg
Additional Information
Additional equipment
- Options included: 3x Revotool/ Tool holders, sizes 1 and 2 / Some additional tools as shown in the photos
Machine Benefits
Qualitative Machine Benefits
- The machine had a general overhaul in 2020 and was in operation until 2023.
- In 2023, the x-axis started to fail – it lost accuracy when punching holes.
- The hydraulic system is expected to be in working condition.
- The electrical system is mostly complete, but a few components are missing: one servo drive, one motor protection fuse, and one cabinet fan.
Technical Machine Benefits
- Max. Positioning speed (x-axis): 60 m/min/max. Positioning speed (y-axis): 60 m/min/max. Positioning speed (x & y simultaneous): 85 m/min
- Max. Workpiece weight: 200 kg
- Max. Sheet thickness: 7 mm/max. Sheet length: 9999 mm (by repositioning)
- Revotool: 4 mm/tooling system: trumpf® tooling system/max. Punching diameter: 70 mm or any shape within 70 mm/tool changing time: 1–5 seconds
- Max. Hydraulic punching power: 280 kn
- Max. Strokes (standard hydraulic): 250 strokes/min/max. Strokes (fast hydraulic): 800 strokes/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
