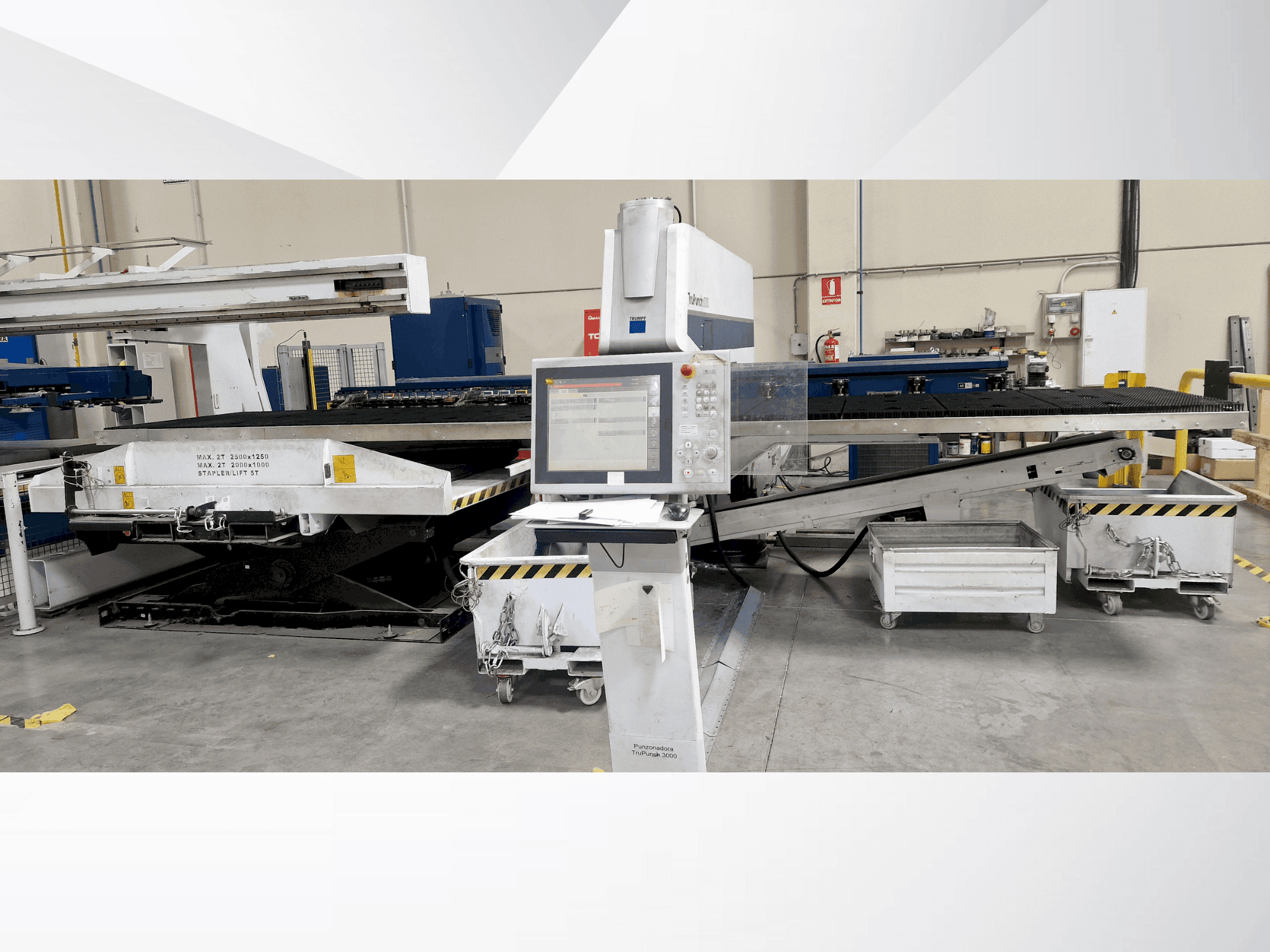

TRUMPF - Trupunch 3000ES-PUN-TRU-2015-00001

Additional equipment

• safety light bars (X x Y): 6550 x 5000 mm (32.75 m²)
• Stopa SheetMaster
• Color monitor, TFT: 17" Touchscreen
• USB interface

Machine Benefits

Qualitative Machine Benefits

• Based on bosch rexroth: mtx cmp70
• Efficient operation with multitool change time of 0. 3 s
• Tool size: punching: size 1, 2, forming: size 1, 2, 5
• Max. Contour size: punching: 76. 2 mm, forming: 100 mm
• Max. Acceleration: x-axis: 12 m/s², y-axis: 6 m/s²
• Precision: minimum programmable movement: 0. 001 mm
• Nc program memory capacity: 80 gb
• Power connection: approx. Power consumption: 5. 9 kw, electrical connection: approx. 18 kva/50 hz
• Compressed air connection: 6 ±1 bar, compressed air consumption: 10 m³/h

Technical Machine Benefits

• Max punching speed: 1000 strokes/min
• X/y simultaneous speed: 108 m/min
• C-axis speed: 330 strokes/min
• Linear tool storage: number of tools / clamps: 18/2
• Part evacuation: max. Part size (with residual grid): 500 x 500 mm, max. Part size (without residual grid): 500 x 500 mm
• High punching speed of 1000 strokes/min
• Large working area of 2500 x 1250 mm
• Punching and hold-down force: max. Hold-down force: 20 kn
• Max. Stroke rate: marking: 2500 strokes/min
• Threading: 330 strokes/min

Extra Information

Machine still under power
