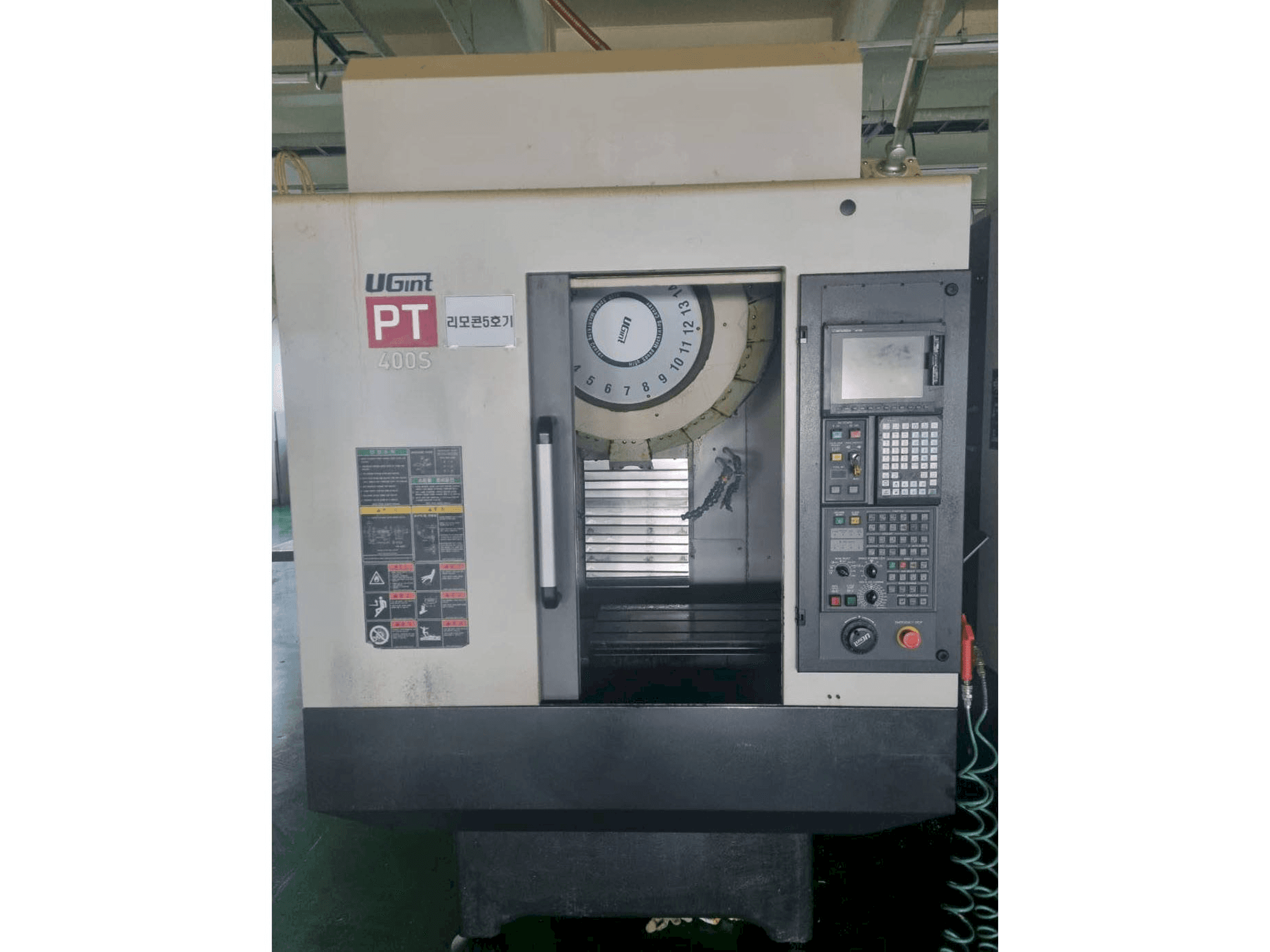

Front view of UGINT PT400S  machine

UGINT PT400S

UGINT - PT400S

2017

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This UGINT PT400S vertical machine center was made in the year 2017. It is equipped with an MITSUBISHI M700 control unit. The machine has a spindle speed of 24000 rpm.

Overview

  • brand: UGINT
  • year: 2017
  • MODEL: PT400S
  • application type: Milling
  • Location: South Korea
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: MITSUBISHI
  • GINDUMAC ID: KR-MIL-UGI-2017-00001

Technical Information

General Data

  • Measurements width: 2115 mm
  • Measurements depth: 1560 mm
  • Measurements height: 2443 mm
  • Machine weight: 2850 kg

Control Unit

  • Brand: MITSUBISHI
  • Model: M700

Main drive

  • Spindle speed range: 24000 1/MIN
  • Spindle motor power: 3.7/2.2 kW
  • Tool taper: NT #30

Movement

  • X-AXIS Movement: 520 mm
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 350 mm
  • Z-AXIS Rapid traverse: 60 m/min

Table

  • Outer length: 620 mm
  • Outer width: 390 mm
  • Table load: 150 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Spindle torque 17. 7 n. M
      • - Atc: 20 tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
