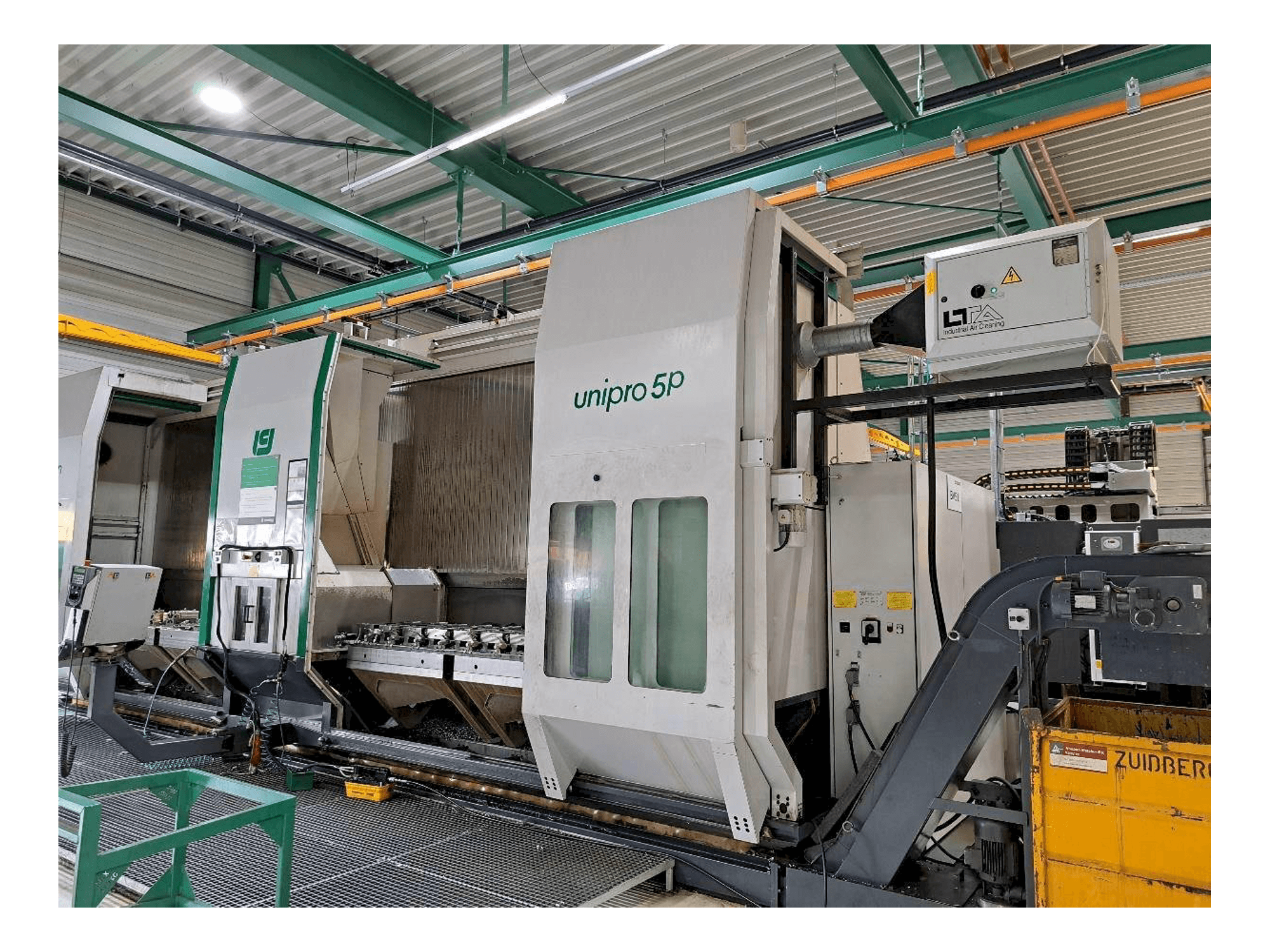

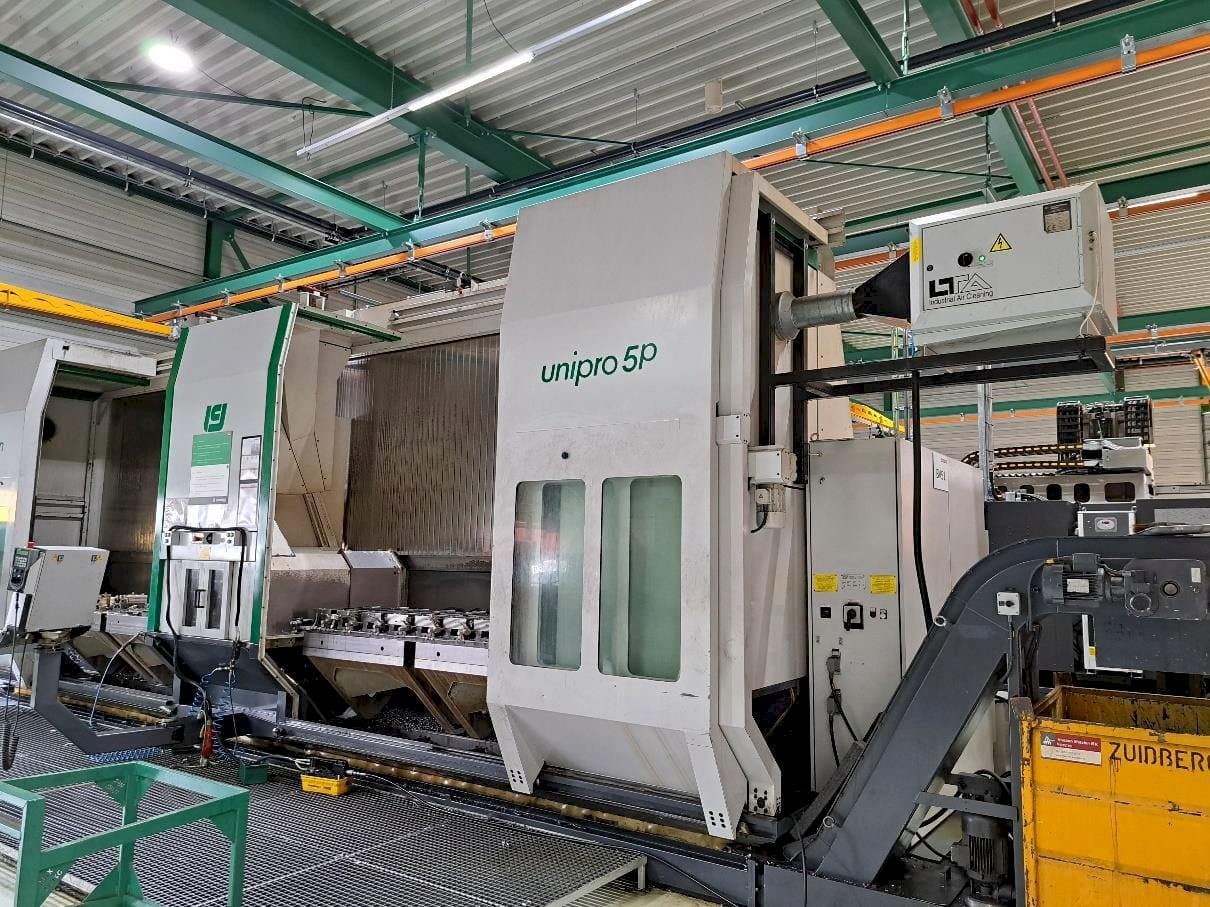

Unisign Unipro 5P Drilling and Vertical Machining center

This Unisign Unipro 5P Drilling and Vertical Machining center was manufactured in the year 2004 in Netherlands. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a spindle speed of 12000 rpm and a drill pressure of 1300 kN.

Overview

brand: Unisign
year: 2004
MODEL: Unipro 5P
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Unisign Unipro 5P

General Data

Measurements width: 10500 MM
Measurements depth: 4500 mm
Measurements height: 3700 mm
Machine weight: 20500 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 2 x 2000 mm
X-AXIS Rapid traverse: 60000 mm/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 60000 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 60000 mm/min

Table

Table load: 2000 kg

Tools

Slots in storage: 63 + 99 (Extra magazine)
Max weight: 10 kg
Max tool diameter: 95 mm
Max tool length: 350 mm
Type of tool holder: HSK 63 A

Additional Information

Machine Benefits

Technical Machine Benefits

Drill pressure: 1300 kn
Torque spindle 180 nm
Main bearing diameter d = 70 mm
Tool change time, approx. 4. 5 sec
Drilling in c45 d = 50 mm
Tapping in c45 m30
Milling in c45 400 cm3/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
