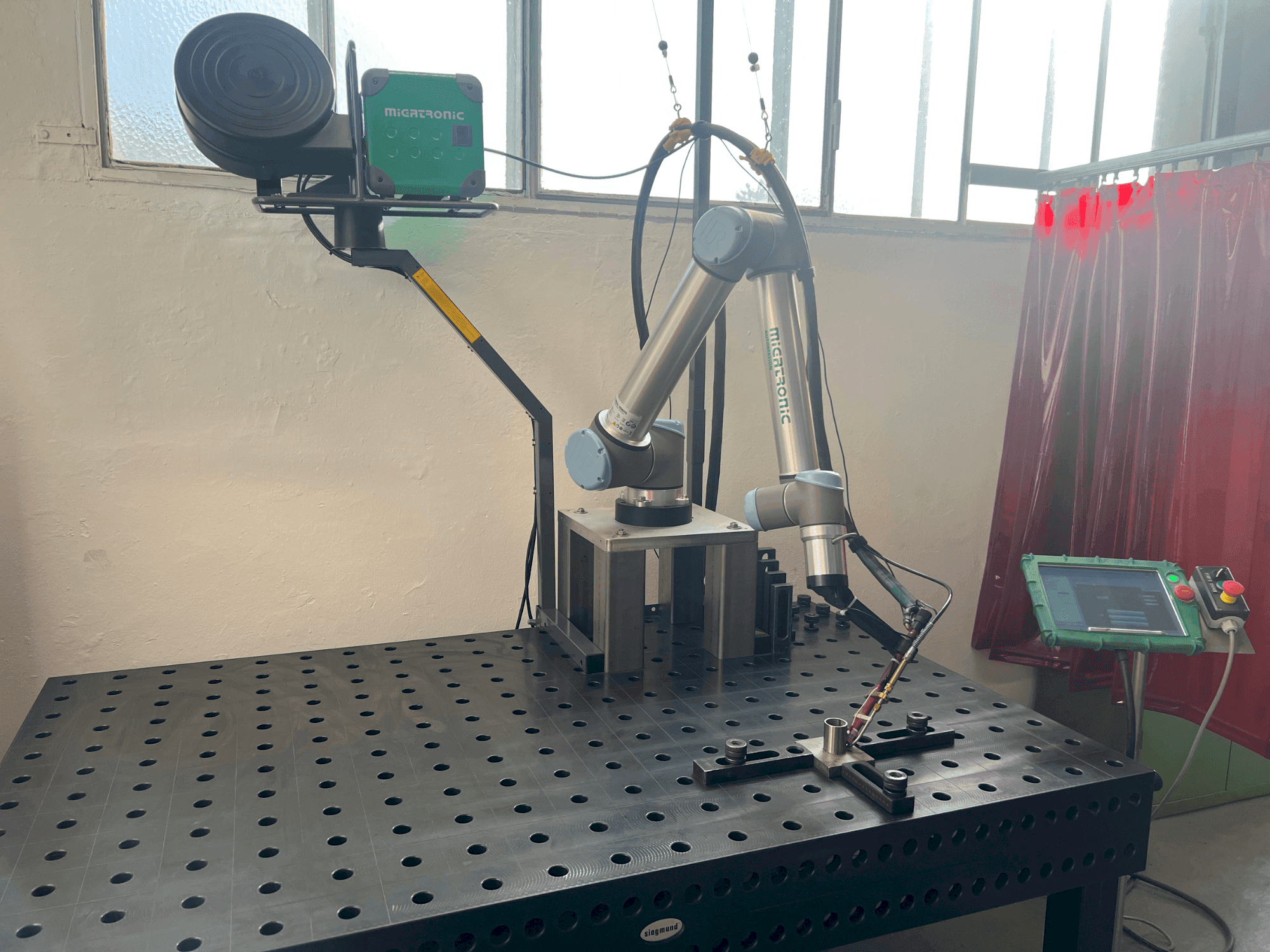

Front view of Universal Robots UR10 (2021) machine
Front view of Universal Robots UR10 (2021) machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Universal Robots - UR10DE-ROB-UNI-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 6-axis Universal Robots UR10 was manufactured in 2021, featuring a payload capacity of 10 kg and a reach of 1300 mm. It offers six rotating joints, operates within an ambient temperature range of 0−50°C, and has a noise level of 72dB(A). The robot can be mounted in any position and is IP54 rated, suitable for ISO Class 5 cleanrooms. If you are looking to get high-quality automation capabilities consider the Universal Robots UR10 machine we have for sale. Contact us for more information.

Overview

  • brand: Universal Robots
  • year: 2021
  • MODEL: UR10
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - Universal Robots UR10

Dimensions

  • Machine Weight: 28.9 kg

Movement

  • Number of Axes: 6

Additional Information

  • Reach: 1300 mm / 51.2 in

  • Degrees of freedom: 6 rotating joints

  • Repeatability: ±0.1 mm / ±0.0039 in (4 mils)

  • Ambient temperature range: 0–50 °C

  • Noise: 72 dB(A)

  • Robot mounting: Any

  • IP classification: IP54

  • ISO cleanroom class: 5

  • Footprint: Ø190 mm

  • Materials: Aluminium, PP plastics

  • Tool connector type: M8

  • Cable length: 6 m / 236 in

  • I/O ports: 2 digital in, 2 digital out, 2 analog in, 0 analog out

  • I/O power supply (tool): 12 V / 24 V, 600 mA

Joint ranges and max speeds (as provided)

  • Base: ±360°, ±120°/s

  • Shoulder: ±360°, ±120°/s

  • Elbow: ±360°, ±180°/s

  • Wrist 1: ±360°, ±180°/s

  • Wrist 2: ±360°, ±180°/s

  • Wrist 3: ±360°, ±180°/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
