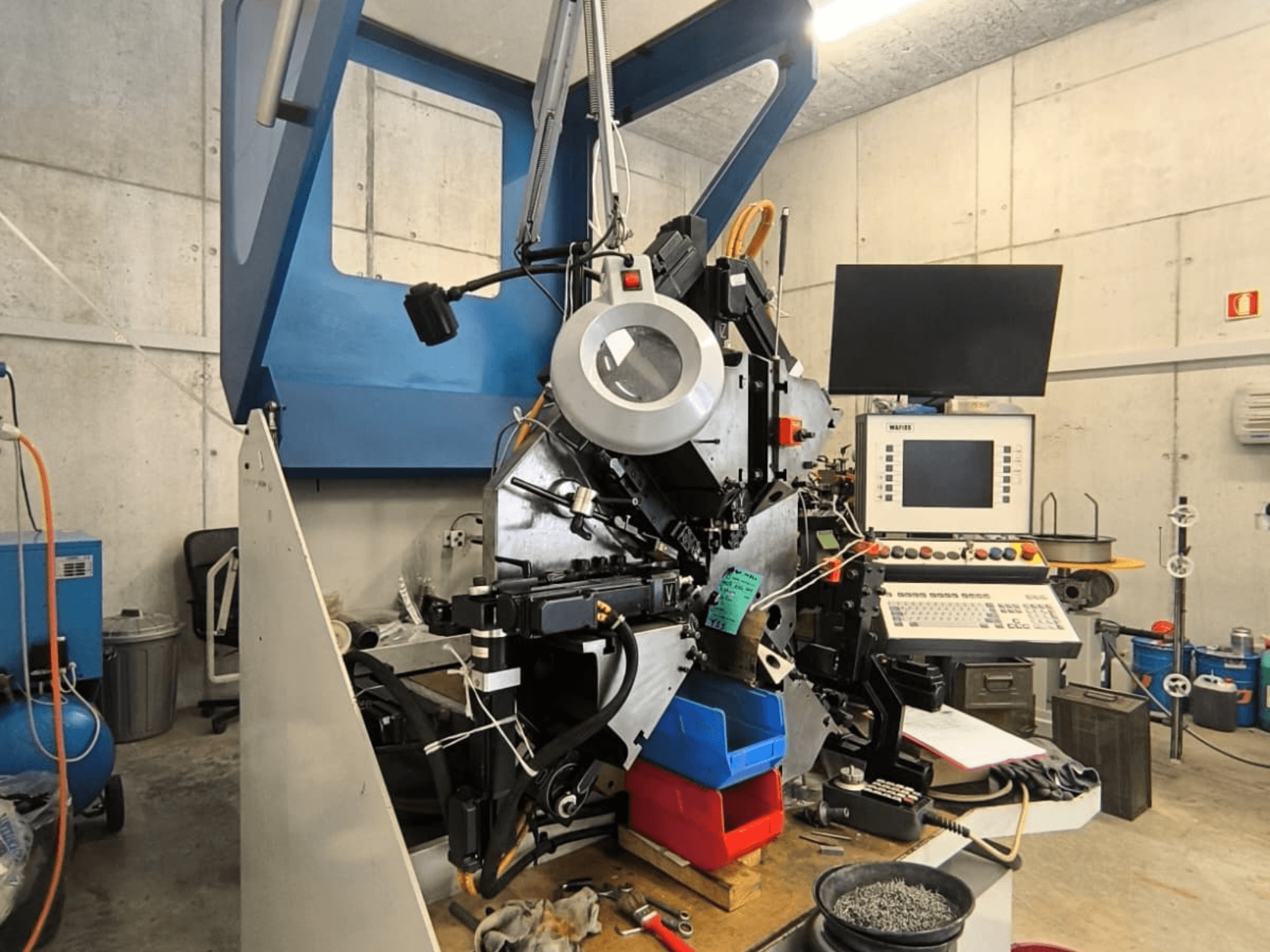

WAFIOS - Fmu1CH-BEN-WAF-2000-00001

- Phase/Connection: 3 ~

- Voltage: 400 V

- Frequency: 50 Hz

- Control Voltage: 24 V DC / 230 V AC

- Fuse Protection (Amps): 35 A (Main) / 25 A

- Control Interface: Integrated CNC control panel with full physical QWERTY keyboard, function keys, and secondary overhead display monitor.

- Included/Attached Components: Circular multi-tooling slide configuration, integrated wire straightener feed mechanism, workpiece transfer/manipulator station, protective hood enclosure (blue), inspection magnifying lamp, status tower light (Red/Green)

- Application: Production of springs and bent parts

- Operation: Automatic CNC programmable command (7 to 12 axes)

- Wire Diameter Range: 0.4 - 1.6 mm

- Wire Feed Length: Freely programmable, unlimited

- Feed Speed: Max. 100 m/min

- Rotation Length: Max. 68 mm

- Coiling-Bending Unit Stroke: Max. 80 mm

- Programming Precision (Feed C-axis): 0.001 mm

- Programming Precision (Wire Rotation A-axis): 0.005°

- Programming Precision (Coiling Head Y-axis rotation): 0.01°

- Programming Precision (Coiling Head Z-axis longitudinal): 0.001 mm

- Programming Precision (CNC Slides): 0.005 mm

- Programming Precision (Raised CNC Spinner): 0.05°

- Working Height: 1200 mm (wire center)

- Production Rate: Max. 150 pcs/min

- Installed Power: 8 kW

- Air Consumption: Approx. 1 - 8 l/min at approx. 6 bar (depending on accessories)

- Noise Level: Approx. 70 dB/A

- Nominal Operating Voltage Tolerance: -10% / +6%

- Operating Ambient Temperature: +10°C to +50°C

- Transport and Storage Temperature: -10°C to +50°C

- Operating Humidity: Max. 70% relative humidity at 25°C (Spraying not allowed)

- Storage/Transport Humidity: Max. 90% relative humidity

- Height with Open Hood: 2500 mm
