WAGNER - WDE 500DE-TUR-WAG-2012-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used WAGNER WDE 500 For Sale | gindumac.com

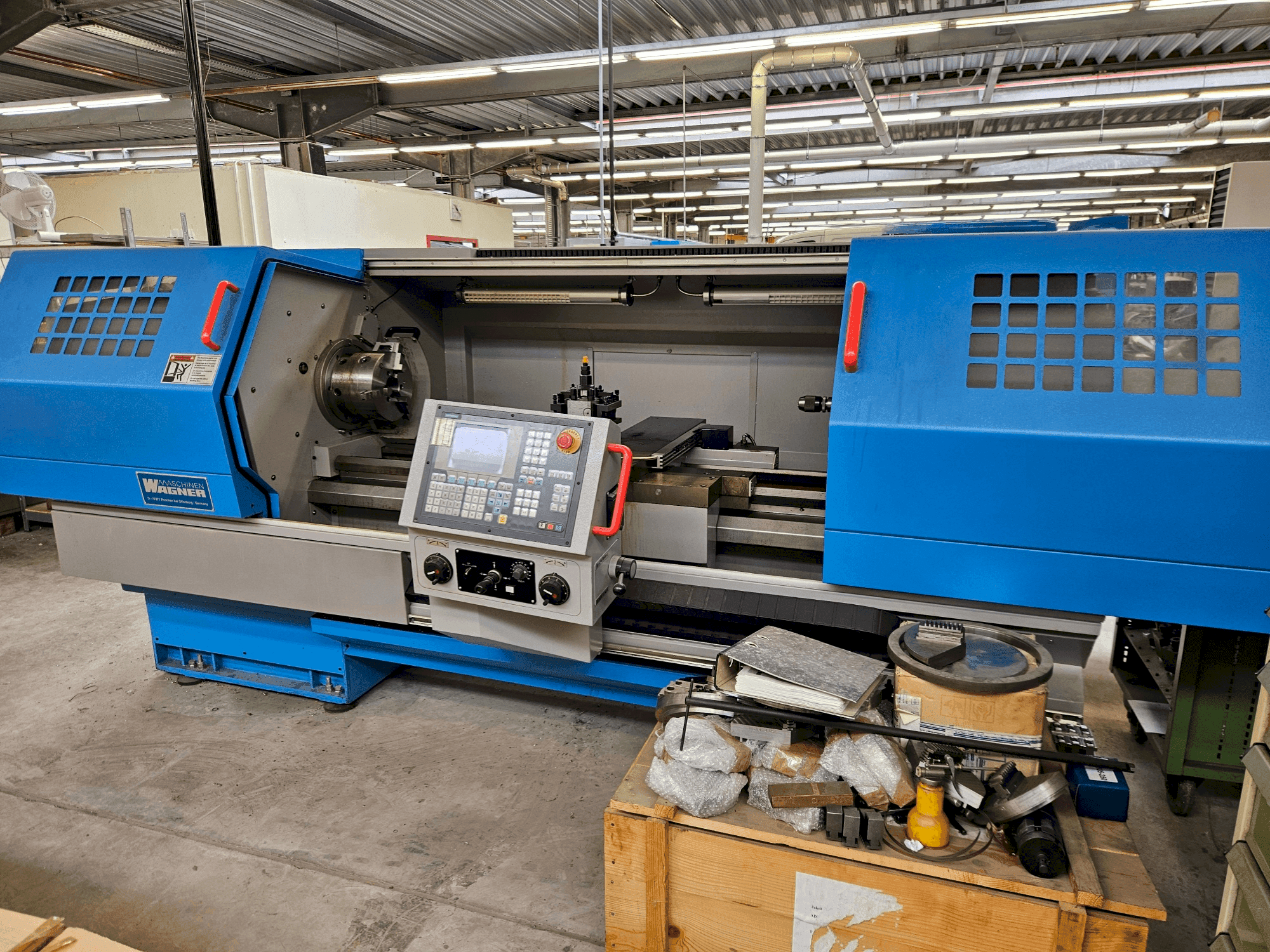

This WAGNER WDE 500 was manufactured in 2012. A robust horizontal turning machine featuring a Siemens 802-C control interface, it includes a three-jaw lathe chuck, quick-change tool post, and manual tailstock. The machine is equipped with a complete coolant system and an enclosure with safety features. If you are looking to get high-quality turning capabilities consider the WAGNER WDE 500 machine we have for sale. Contact us for more information.
Overview
- brand: WAGNER
- year: 2012
- MODEL: WDE 500
- application type: Turning
- Location: Latvia
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - WAGNER WDE 500
Control Unit
- Brand: SIEMENS
- Model: 802-C
Main drive
- Number of axis: 2
Additional Equipment
- - Complete electrical equipment 400 V / 50 Hz
- - RS 232 interface
- - Electronic handwheels with increment preselection
- - Mechanical spindle engagement lever
- - Right and left rotation
- - Pilot lever for feed with detent function
- - Rapid traverse override as a push button
- - Movable control panel
- - Constant cutting speed
- - Bed guideways induction-hardened, ground, and Turcite-coated
Additional Information
- Technical Machine Benefits:
- - Center distance: 1500 mm
- - Siemens 802-c with manual machine interface
- - Additional Equipment Precision recirculating ball screws hardened and ground Three-jaw lathe chuck 250 mm, spiral ring design Quick-change tool post head size B (Multifix system) Manual tailstock, MT 5 quill 2 fixed MT 5 live centers Automatic central lubrication system Machine light Complete coolant system Enclosure with two sliding doors and safety glass viewing window 1 set of foundation bolts Operating tools / Operating and programming instructions
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
