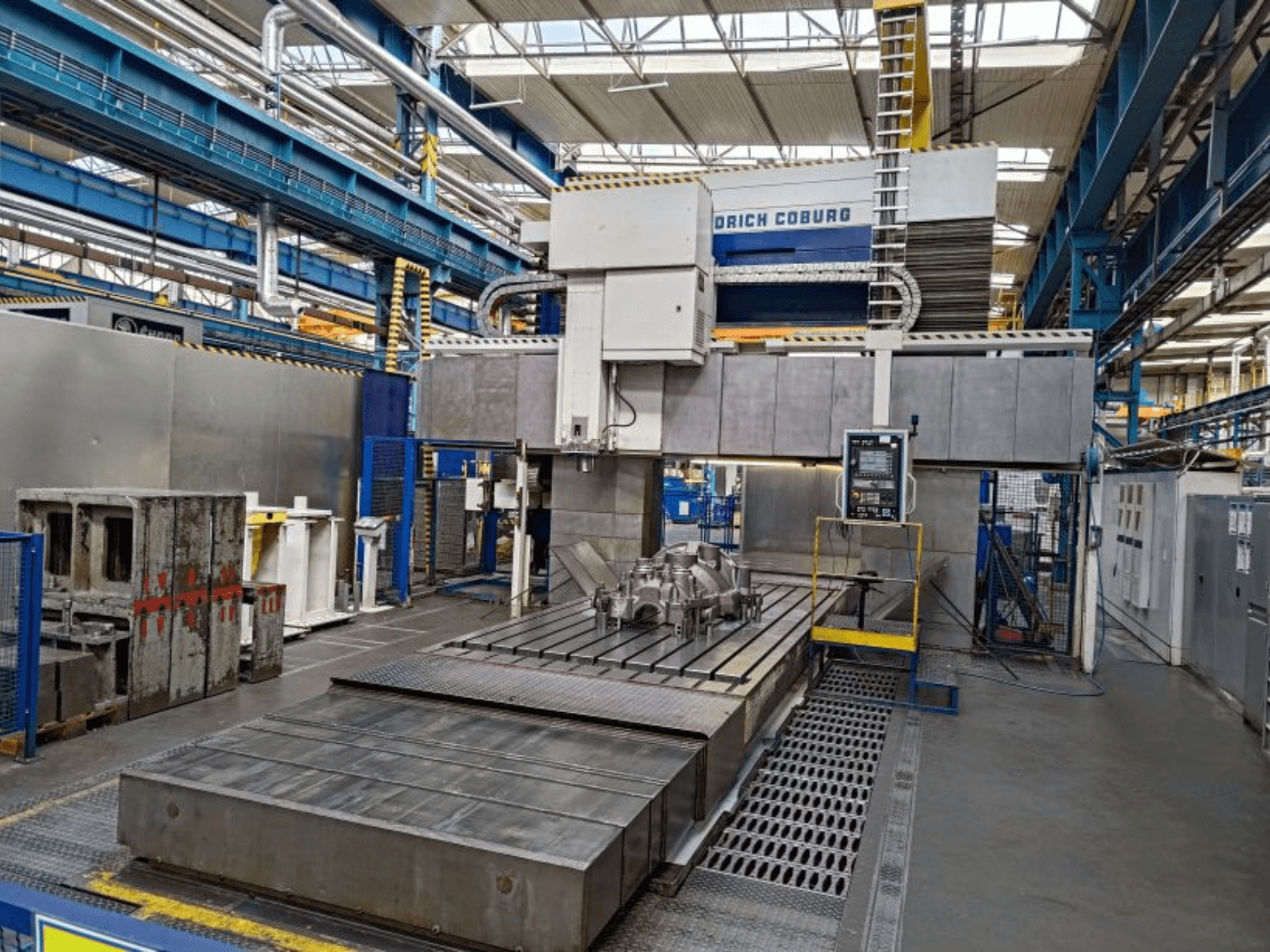

This 5-axis WALDRICH COBURG 17-10 FP NC/5 was manufactured in 1985 and lastly retrofitted in 2011. It features a maximum workpiece weight of 60 tons and a substantial table size of 2,500 mm by 5,000 mm. The machine is equipped with a Sinumerik 840 control system, ensuring precision in operations. If you are looking to get high-quality milling capabilities, consider the WALDRICH COBURG 17-10 FP NC/5 gantry milling machine we have for sale. Contact us for further details.
Overview
- brand: WALDRICH COBURG
- year: 1985
- MODEL: 17-10 FP NC/5
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - WALDRICH COBURG 17-10 FP NC/5
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840
Dimensions
- Machine Height: 125000 mm
- Table Length: 5000 mm
- Table Width: 2500 mm
Movement
- Number of Axes: 5
- X-axis Travel: 2500 mm
Technical Specification
- Spindle Speed: 2000 RPM
Additional Information
Max. workpiece weight: 60 tons
Tool Taper: ISO 60
Milling Width without Column Covers: 3000 mm
Milling Width with Column Covers: 2850 mm
Cross Travel of the Milling Support: 5270 mm
Distance Table to Face of Vertical Spindle: 2750 mm
Vertical Travel of the Cross Rail: 2250 mm
Clamping Length: 5000 mm
Longitudinal Travel of the Table: 5700 mm
Table Height Above Floor: 500 mm
Machine was retrofitted in 2011, 2008 and 1997.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
