Waldrich Siegen - V/H-AR

1990

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

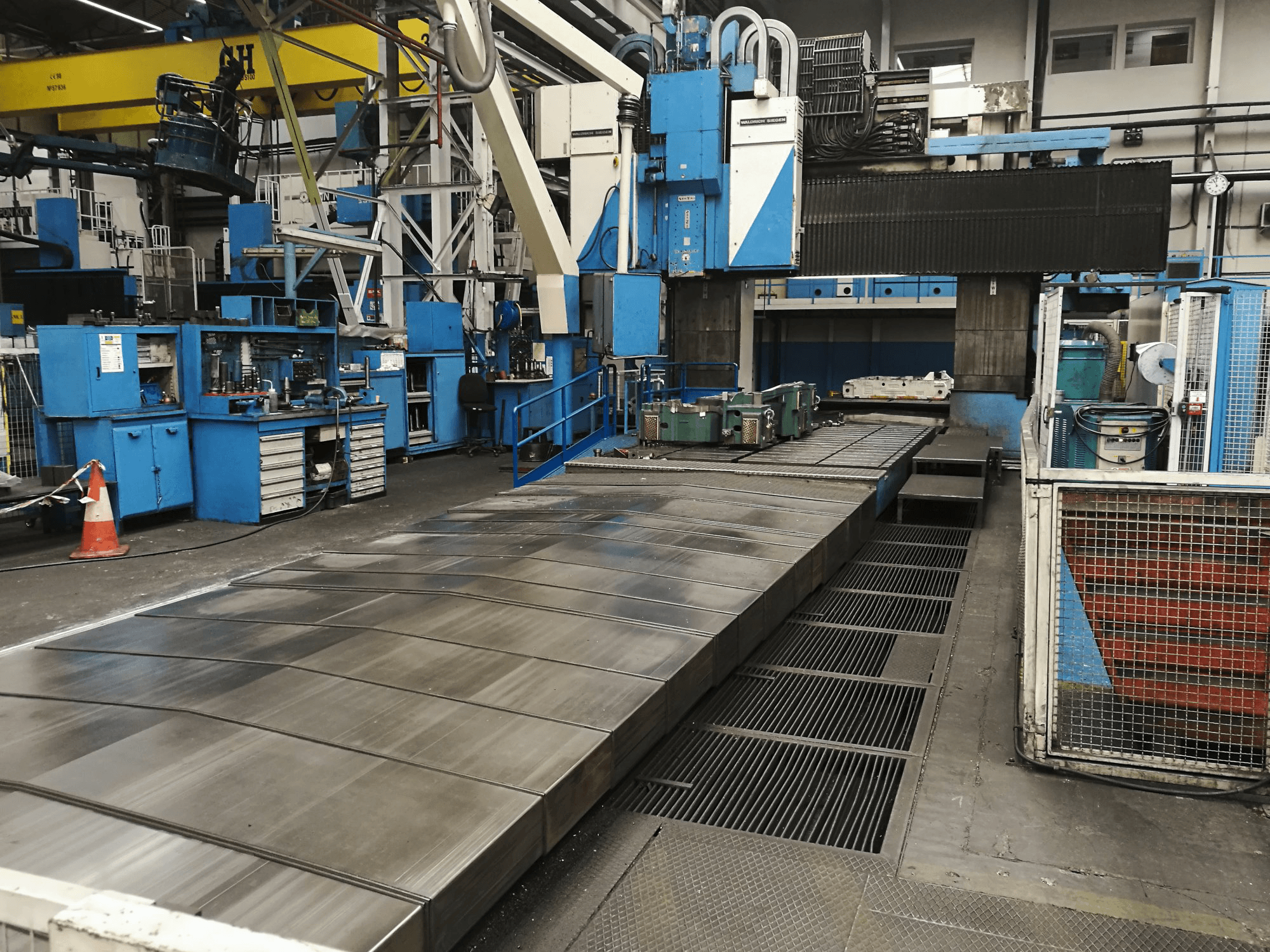

Waldrich Siegen V/H-AR Milling Machine

This Waldrich Siegen V/H-AR Milling Machine of German manufacture dates from the year 1990, and is equipped with a NUM 760 Control unit. This machine stands out through its robustness and great working capacity: the V/H-AR is able to work on almost 12-meter-long pieces, and can support up to 100 tons on each of its tables, allowing a combined 200-ton load.

Overview

brand: Waldrich Siegen
year: 1990
MODEL: V/H-AR
application type: Milling
Location: Spain
machine type: Milling Machine
availability: Sold
control unit brand: NUM
GINDUMAC ID: ES-MIL-WAL-1990-00001

Technical Information

General Data

Measurements width: 12500 mm
Measurements depth: 6500 mm
Measurements height: 7000 mm

Control Unit

Brand: NUM
Model: 760

Main drive

Spindle speed range: 2000 1/min
Spindle motor power: 40 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 11753 mm
X-AXIS Feed Force: 40000 N
X-AXIS Rapid traverse: 15000 mm/min
Y-AXIS Movement: 2800 mm
Y-AXIS Feed Force: 40000 N
Y-AXIS Rapid traverse: 15000 mm/min
Z-AXIS Movement: 2500 mm
Z-AXIS Feed Force: 40000 N

Workpiece

Workpiece weight: 100000 kg

Tools

Max weight: 55 kg
Max tool diameter: 155 mm
Max tool length: 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
