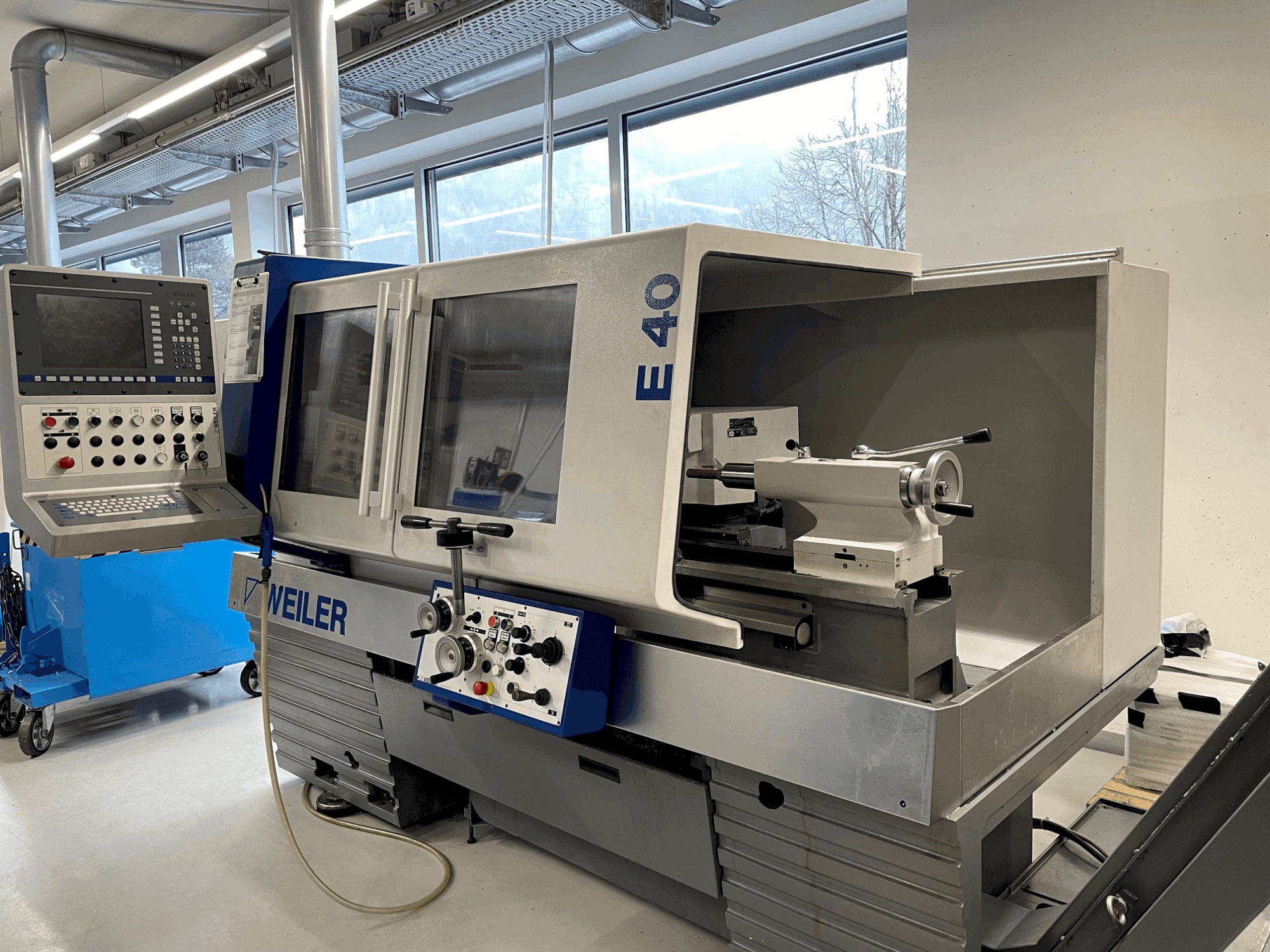

Front view of Weiler E 40 x 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Weiler E 40 x 1000

Photo Gallery

Weiler - E 40 x 1000AT-TUR-WEI-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WEILER E 40 x 1000 - 2012 - Lathe | gindumac.com

This WEILER E 40 x 1000 was manufactured in 2012. It features a centre distance of 1000mm, a circulation diameter in the bed of 435mm, and a spindle bore of 66mm. The machine has a speed range of 1-3,500rpm and weighs 3400kg. This opportunity to buy the WEILER E 40 x 1000 lathe could be ideal for a variety of turning applications. Contact us for further details regarding this lathe.

Overview

brand: Weiler
year: 2012
MODEL: E 40 x 1000
production hours: 14601
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - Weiler E 40 x 1000

General Data

Machine weight: 3400 kg

Main drive

Spindle speed range: 1-3500 1/MIN
Spindle bore: 66 mm

Movement

X-AXIS Feed Force: 10000 N
X-AXIS Rapid traverse: 8/4 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Centre distance: 1,000 mm
- - Circulation diameter via flat slide: 200 mm
- - Circulation diameter in the bed: 435 mm
- - Circulation diameter via flat slide: 200 mm
- - Sliding movement: 260 mm
- - Max. Torque of the spindle: 450 nm
- - Spindle diameter in front bearing: 110 mm
- - Tailstock quill diameter: 65 mm
- - Feed range: 0. 001-50 mm/rev

Extra information

- machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
