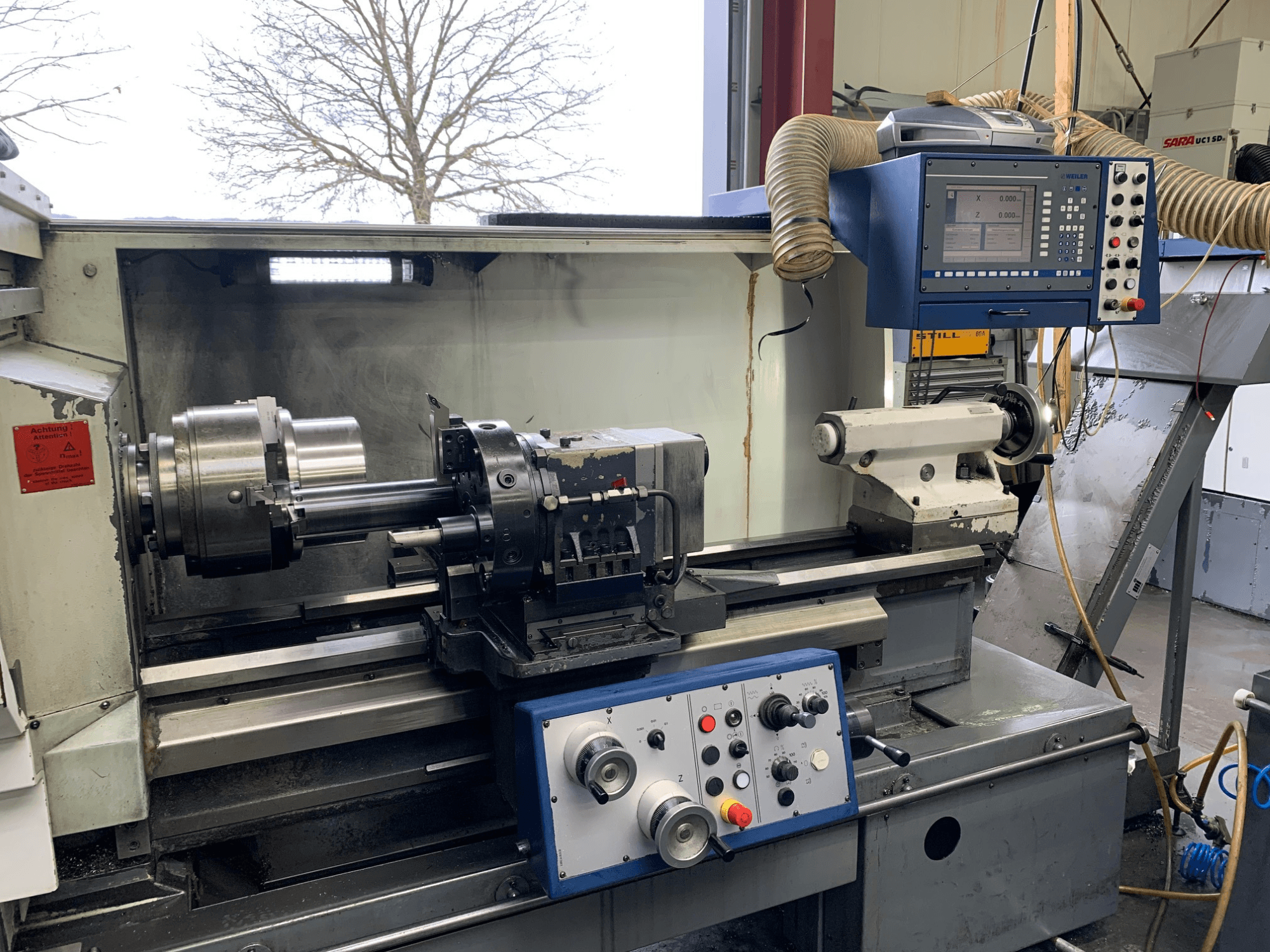

Horizontal turning machine manufactured in 2004. This Weiler E55X1000 features a maximum chuck diameter of 315 mm and a spindle diameter of 120 mm. It includes a robust tool system with a turret and offers a cutting speed of 140 m/min. If you are looking to get high-quality turning capabilities, consider the Weiler E55X1000 machine we have for sale. Contact us for further details.
Overview
- brand: Weiler
- year: 2004
- MODEL: E55X1000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Weiler E55X1000
Dimensions
- Machine Height: 1750 mm
- Machine Length: 2850 mm
- Machine Weight: 3800 kg
- Machine Width: 1850 mm
Movement
- Number of Axes: 2
- X-axis Travel: 340 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 2500 RPM
Additional Information
Total connected load: 20 kW
Total power requirement: 27 kVA
Internal taper: metric 90
Spindle diameter in front bearing: 120 mm
Spindle bore: 83 mm
Flange diameter: 500 mm
Maximum chuck diameter: 315 mm
Maximum torque: 1600 Nm
Tool system: turret (VDI 40)
Tool shank size: 32 x 25 mm
Number of longitudinal slides: 1
Number of cross slides: 1
Center distance: 1100 / 2100 mm
Cross travel: 340 mm
Tailstock taper: MK 5
Tailstock quill diameter: 80 mm
Tailstock quill stroke: 200 mm
Maximum tailstock travel: 1000 / 2000 mm
Feed rate longitudinal: 0.001 – 20 mm/rev
Feed rate cross: 0.001 – 20 mm/rev
Rapid traverse longitudinal: 10 m/min
Rapid traverse cross: 5 m/min
Feed force longitudinal: 10000 N
Feed force cross: 7000 N
Metric thread range: 0.1 – 250 mm
Whitworth thread range: 1/4 – 56 threads/inch
Module range: 0.125 – 28
DP range: 0.05 – 48
Maximum cutting cross section: 2.25 mm²
Cutting speed: 140 m/min
Gear stage I: 89 rpm at 100% duty cycle
Gear stage II: 355 rpm at 100% duty cycle
Coolant consumption (normal): 30 l/min at 0.4 bar
Coolant consumption (increased): 30 l/min at 3.5 bar
Noise level: 80 dB(A)
Electrical:
Operating voltage: 400 V
Control voltage: DC 24 V
Connected load: 30 kVA
Nominal current: 43 A
Frequency: 50 Hz
Main fuses: 50 A
Condition note: A small actuator that switches between the gear stages is defective; both gear stages are functioning.
Additional equipment
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
