Weinbrenner GP400

Photo Gallery

Weinbrenner - GP400DE-BEN-WEI-2006-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

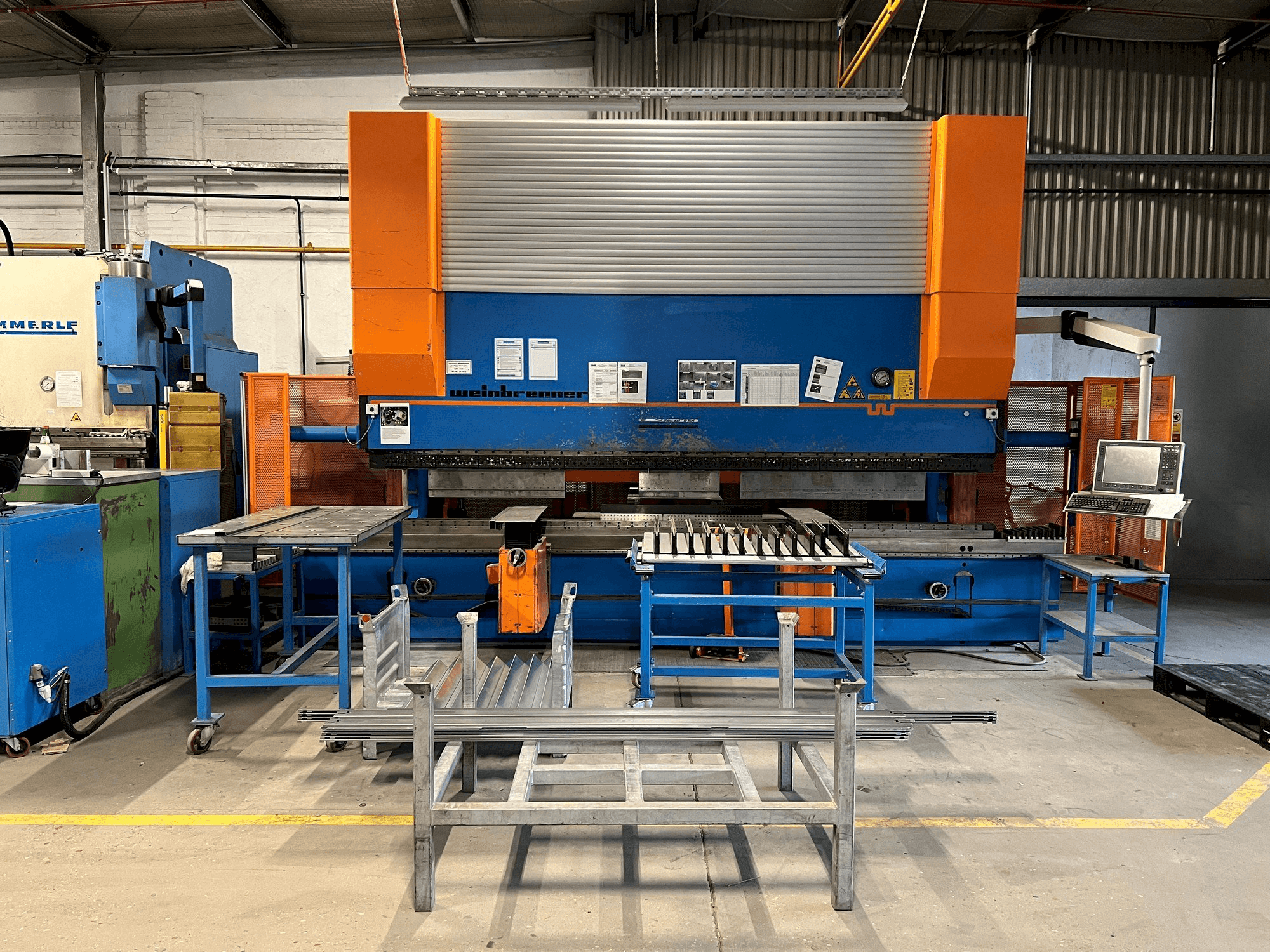

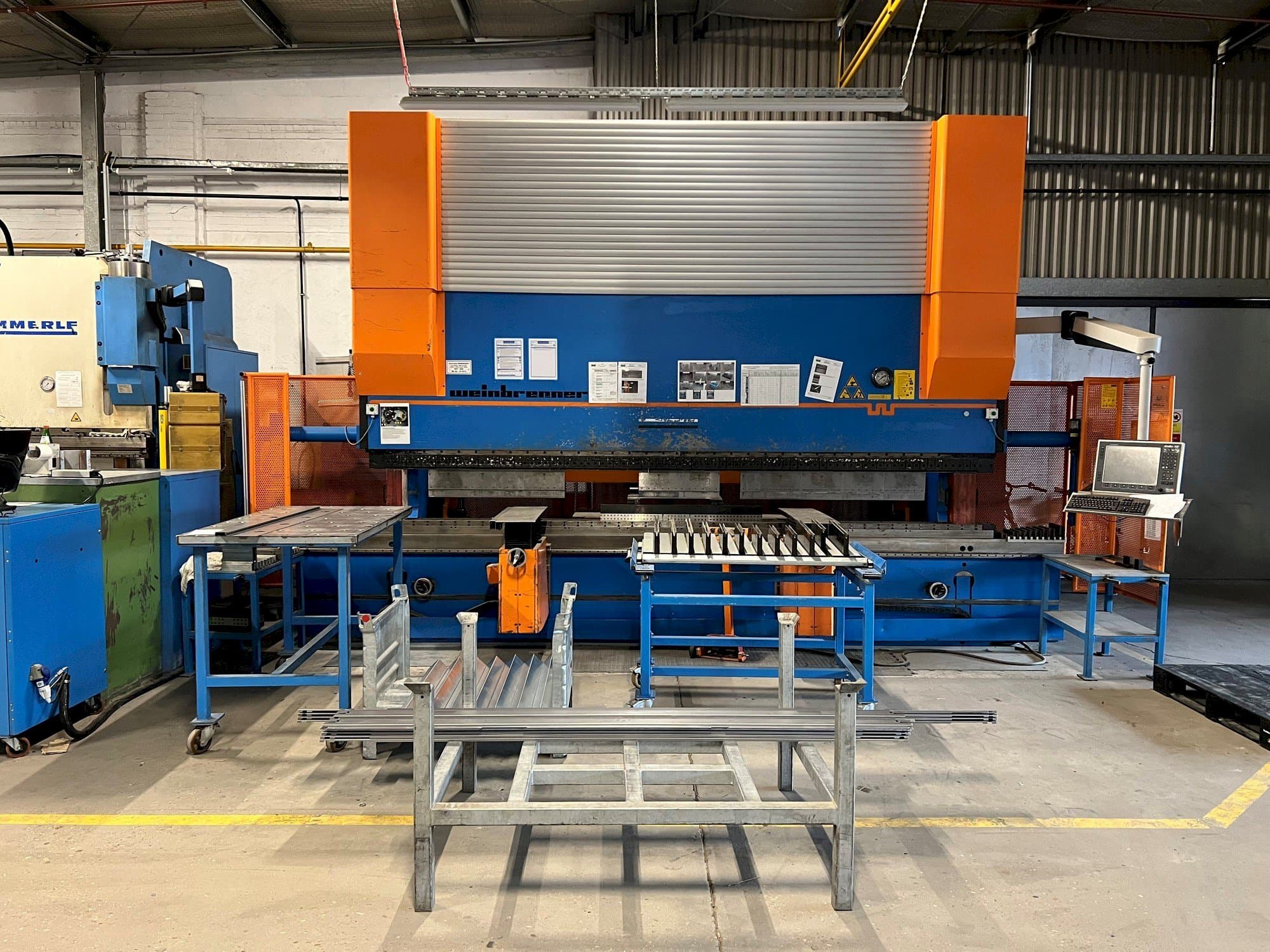

Weinbrenner GP400 Bending machine

This Weinbrenner GP400 Bending machine was manufactured in the year 2006 and has 60000 production hours. It is equipped with a Cybelec ModEva 15S control unit. The machine has a pressing force of 4000 kN and a bending length of 4550 mm.

Overview

brand: Weinbrenner
year: 2006
MODEL: GP400
production hours: 60000
application type: Bending
Location: Germany
machine type: Hydraulic Press

Technical Information - Weinbrenner GP400

General Data

Measurements width: 9500 mm
Measurements depth: 6500 m MM
Measurements height: 3800 m MM

Controller

Brand: Cybelec
Model: ModEva 15S

Main drive

Pressing force: 4000 kN
Bending length: 4550 mm

Additional Information

Additional equipment

Various punches (R1; R3; doe foot with R1) and dies (V07; V09; V10; V12; V16; V20/24)
Double edging tool 300 mm segments (3 mm / 10.5 mm / 12 mm / 15.5 mm / 16.5 mm)
Safety device: AKAS rotating safety light grid

Machine Benefits

Qualitative Machine Benefits

Estimated status: operating hours 60,000 h
Bends: 5,141,840 strokes + 724,223 strokes since control unit replacement
Space requirement: 6. 5 m x 9. 5 m x 3. 8 m (d x w x h)
Control system cybelec modeva 15s
New control system was installed in 03/2018 and runs under windows 7
Extended machine equipment: two bending aids at the rear cnc controlled // two bending aids at the front cnc-controlled die shift with four positions (pneumatic) // quick-change device for punch // quick clamping for dies

Technical Machine Benefits

Basic machine pressing force 4,000 kn
Bending length 4,550 mm
Clear stand width 4,050 mm
Working stroke 450 mm
Stand projection 400 mm
Ram stroke 450 mm
Tool holder 25 mm
Ral5015 sky blue / ral2003 pastel orange

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
