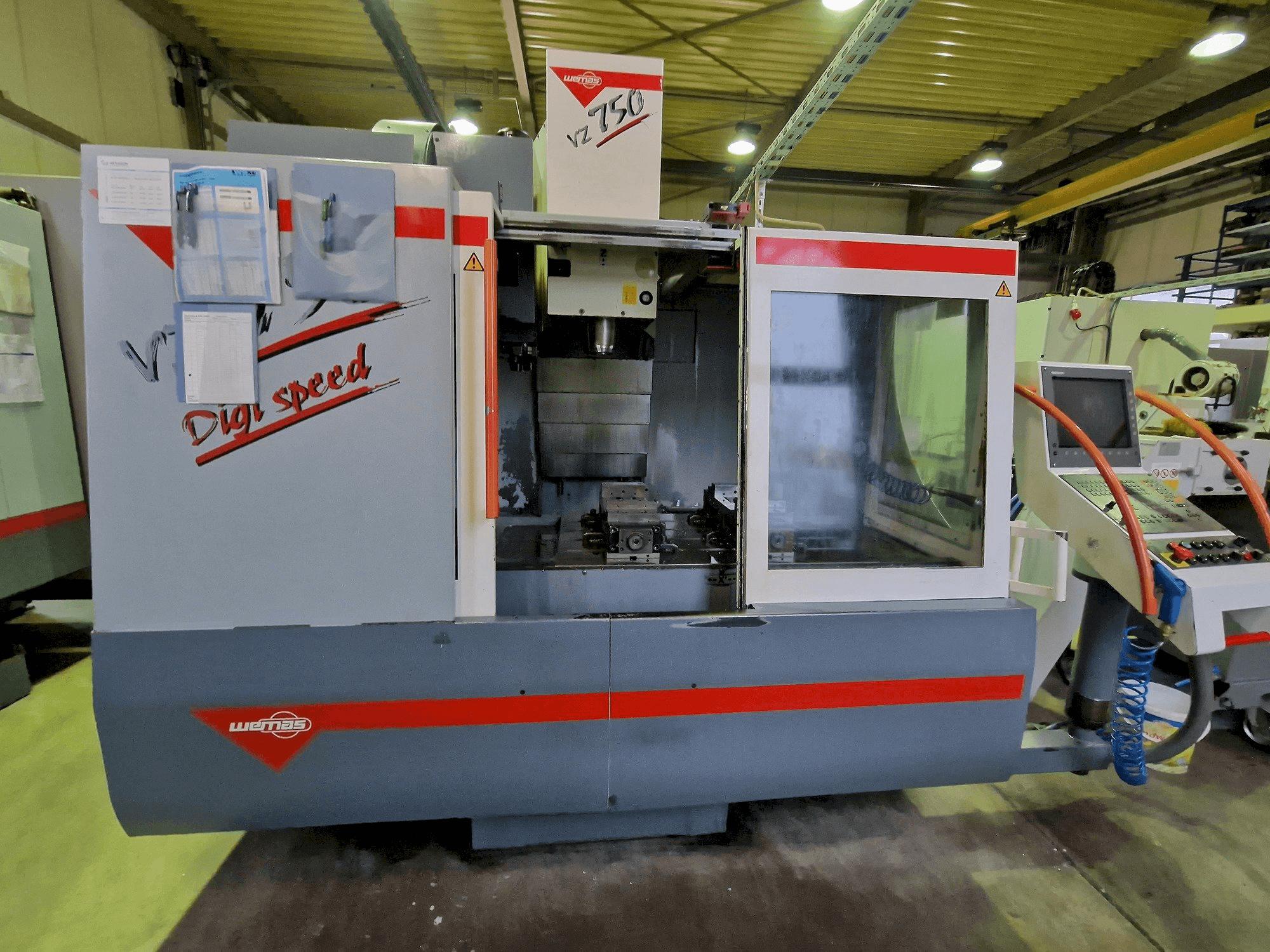

WEMAS VZ 750 Vertical Machining center

This WEMAS VZ 750 Vertical Machining center was made in 2003 and has new spindle with 20455 spindle hours. It is equipped with a HEIDENHAIN 530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: WEMAS
year: 2003
MODEL: VZ 750
production hours: 20455
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Heidenhain

Technical Information - WEMAS VZ 750

Control Unit

Brand: Heidenhain
Model: 530

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 11 kw
Number of axis: 3

Movement

X-AXIS Movement: 750 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 45 m/min

Table

Outer length: 1000 mm
Outer width: 640 mm
Table load: 650 kg

Tools

Type of tool holder: HSK63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motor spindle
- - Scraper belt conveyor
- - Distance clamping surface - spindle nose: 149-649 mm
- - Max. Tool weight: 5100 kg
Qualitative Machine Benefits:
- - 2012 new spindle - 20455h
- - High speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
