- ➤ Used WEMAS VZ 750 For Sale | gindumac.com

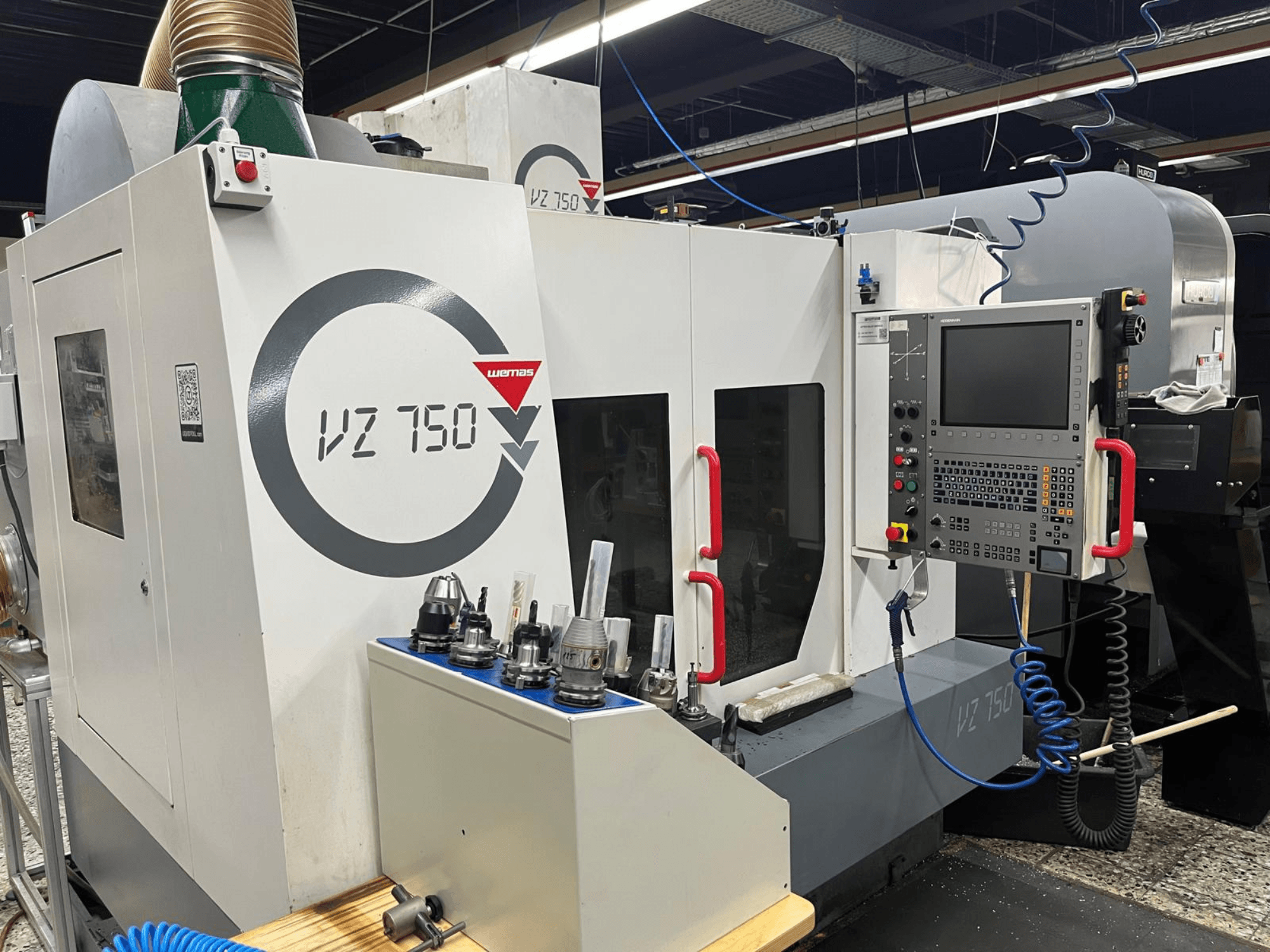

This 3-axis WEMAS VZ 750 was manufactured in 2006. It features a HEIDENHAIN control unit with an iTNC 530 style interface, a T-slotted work table equipped with dual manual/hydraulic vises, and a mechanical spindle interface with coolant nozzles. If you are looking to get high-quality vertical machining capabilities, consider the WEMAS VZ 750 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: WEMAS
- year: 2006
- MODEL: VZ 750
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - WEMAS VZ 750
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 3
- X-axis Travel: 750 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 8000 RPM
Additional Information
Axis movement: X/Y/Z, vertical orientation
Spindle/tool clamping: Mechanical clamping with coolant nozzles at spindle
Work table: T-slotted table
Electrical cabinet: HEIDENHAIN drive system; Siemens/Phoenix Contact modules; EPCOS filter
Machine features: Full enclosure; integrated work light; air and coolant lines
Additional equipment
Workholding: Dual vises (manual/hydraulic)
Tooling: Assorted BT/SK tool holders on external rack
Extraction: External extraction ducting
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
