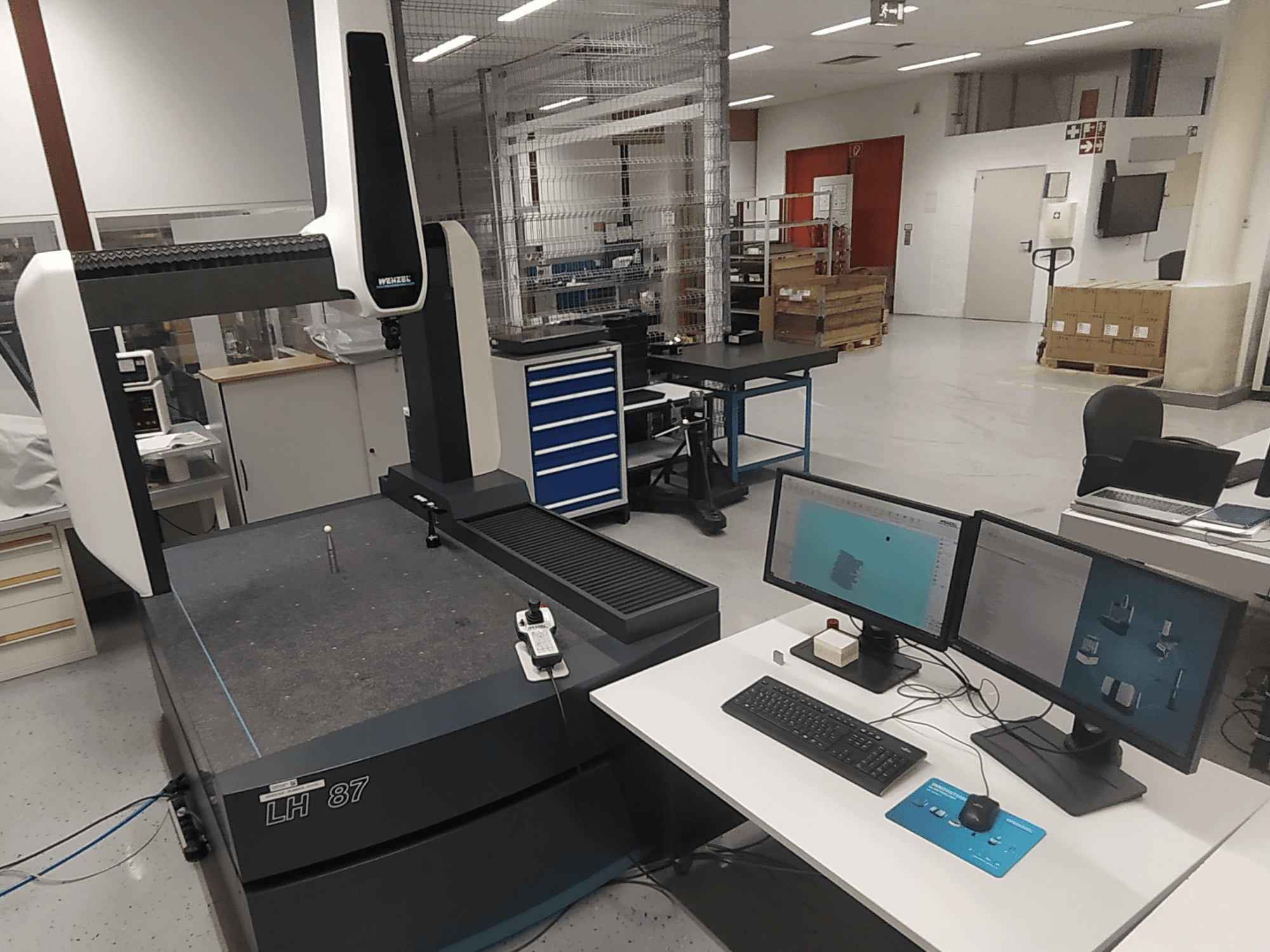

This 3-axis Wenzel LH 87 CMM machine was manufactured in 2014. It features a measuring range of 800 mm in X, 1000 mm in Y, and 700 mm in Z, with a maximum component weight capacity of 800 kg. The machine is equipped with an air-bearing system across all axes and a Renishaw PH10M Plus motorized indexing probe head. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 87 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Wenzel
- year: 2014
- MODEL: LH 87
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Wenzel LH 87
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 700 mm
Additional Information
- Volumetric Length Measuring Error (E0, MPE): 2.2 µm + (L / 300.0 mm) µm
- Length Measuring Error along Optical Axis (E150, MPE): 2.2 µm + (L / 300.0 mm) µm
- Max. Component / Workpiece Weight: 800 kg
- Axis Bearings: Air-bearing system integrated across all axes
- CNC Control Unit: WPC 3-axis contouring configuration
- Controller Hardware: WPC2040 Basic combined with Renishaw PHC10-3 PLUS controller rack unit
- Machine Control Panel: Wenzel HT400 wired manual joystick control handbox
- Probe Head System: Renishaw PH10M Plus motorized indexing probe head
- Probing Sensor System: Renishaw TP200 high-precision strain-gauge touch-trigger probe
- Change Rack System: Renishaw SCR200 6-port autonomous stylus changer bridge (5 ports actively equipped in visual configuration)
- Active Stylus Configurations (on-rack):
* Port 1: Taster 1001 (Ø 1.00 mm)
* Port 2: Taster 2001 (Ø 2.0 mm Cylindrical)
* Port 3: Taster 3001 (Ø 2.00 mm Ruby Ball)
* Port 4: Taster 4001
* Port 5: Port 5 configured (Visual confirmation: angled/star setup)
- Evaluation PC Hardware: Fujitsu Esprimo Desktop PC Tower housed in a dedicated lower-desk controller bay compartment
- Visual Workstation Monitors: 2 x BenQ 24" TFT flat screen displays
- Input Peripherals: Wired keyboard, mouse, and Wenzel-branded workflow mousepad
- Core Operating System: Windows 10 Pro (Version 10.0, Build 19045, 64-bit Edition)
- Metrology Software Suites:
* Wenzel WM | Quartis Standard (Build R2025-1 / R2025-2 back-compatible ecosystem)
* CM Wenzel CNC Control Geometry Software Module
* CM Wenzel CNC Free-Form Surface Software Module
- Software Licensing & Security: Metrokey Dongle Protection (ID: 45984, Status: Valid, Local Workstation), Driver Version 7.6.0
- Native CAD Data Core Interfaces: STEP, NX, VDA-FS, IGES, EMD (Q-DAS), IMPEX-ELEM, CURVE, SURF, IPH, PRC
- Optional Extension Interfaces: CATIA, Pro-E, SolidWorks
- Included Calibration Accessories: High-purity Ceramic Reference Calibration Sphere complete with base extension column block
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
