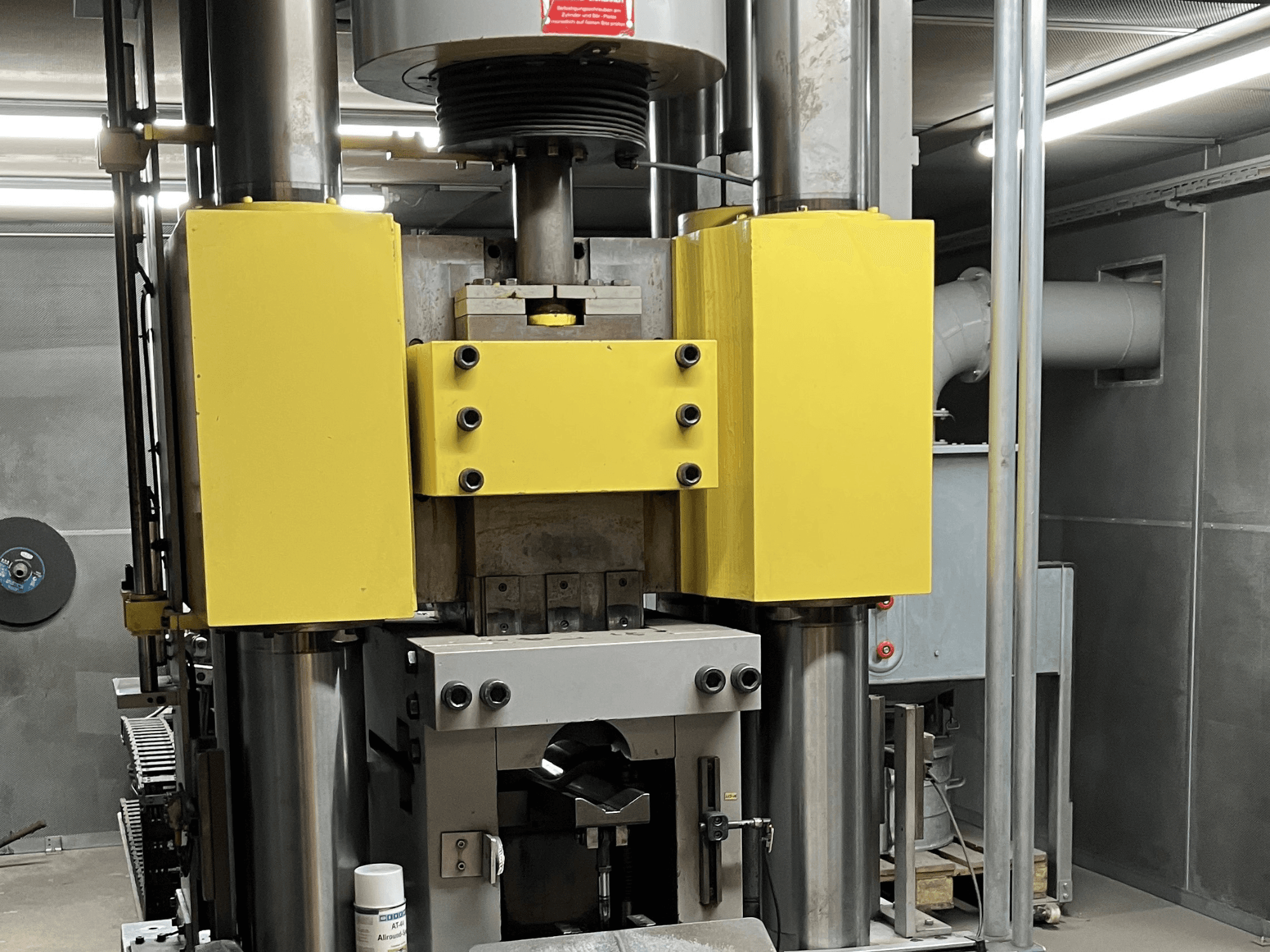

Hydraulic press manufactured in 2015. This WINTER VSP 350 features a holding force of 3500 kN and a trimming force of 2500 kN. It offers a holding stroke of 50 mm and a trimming stroke of 100 mm, ensuring efficient operation. With a robust table size of 1290 x 1200 mm, this machine is designed for heavy-duty tasks. If you are looking to get high-quality pressing capabilities, consider the WINTER VSP 350 hydraulic press we have for sale. Contact us for further details.
Overview
- brand: WINTER
- year: 2015
- MODEL: VSP 350
- production hours: 20652
- application type: Bending
- Location: Germany
- machine type: Hydraulic Press
- control unit brand: SIEMENS
Technical Information - WINTER VSP 350
Control Unit
- Control Brand: SIEMENS
- Control Model: S7-300 PLC
Dimensions
- Machine Height: 3029 mm
- Machine Weight: 7500 kg
- Machine Width: 2405 mm
- Table Length: 1290 mm
- Table Width: 1200 mm
Technical Specification
- Pressing Force: 3500 Kn
Additional Information
MACHINE
Holding Stroke: 50 mm
Holding Speed at 500 kN: approx. 30 mm/s
Holding Speed at 3500 kN: approx. 4 mm/s
Holding Return Speed: 60 mm/s
Trimming Force: 2500 kN
Trimming Stroke: 100 mm
Trimming Speed at 500 kN: approx. 30 mm/s
Trimming Speed at 2500 kN: approx. 5 mm/s
Trimming Return Speed: 60 mm/s
Impact Damping Stroke: 20 mm
Opening Width: 1000 mm
Machine Depth: 1230 mm
HYDRAULIC UNIT
Hydraulic Unit Weight: 13000 kg
Pump Power: 2 × 15 kW
Cooler Power: 3 kW
Pump Unit Power: 3 kW
Hydraulic Pipe Diameter: 2 × Ø38 × 4 mm
Hydraulic Pipe Diameter: 2 × Ø30 × 4 mm
Hydraulic Pipe Diameter: 1 × Ø20 × 3 mm
Colour Hydraulic Unit: RAL7004
Rated Voltage: 400 V
Frequency: 50 Hz
Rated Current: 97 A
Installed Power: 36 kW
Operating Hours Hydraulic Unit 1: 20652.8 h
Operating Hours Hydraulic Unit 2: 20641.8 h
Operating Hours Hydraulic Unit 3: 20802.8 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
