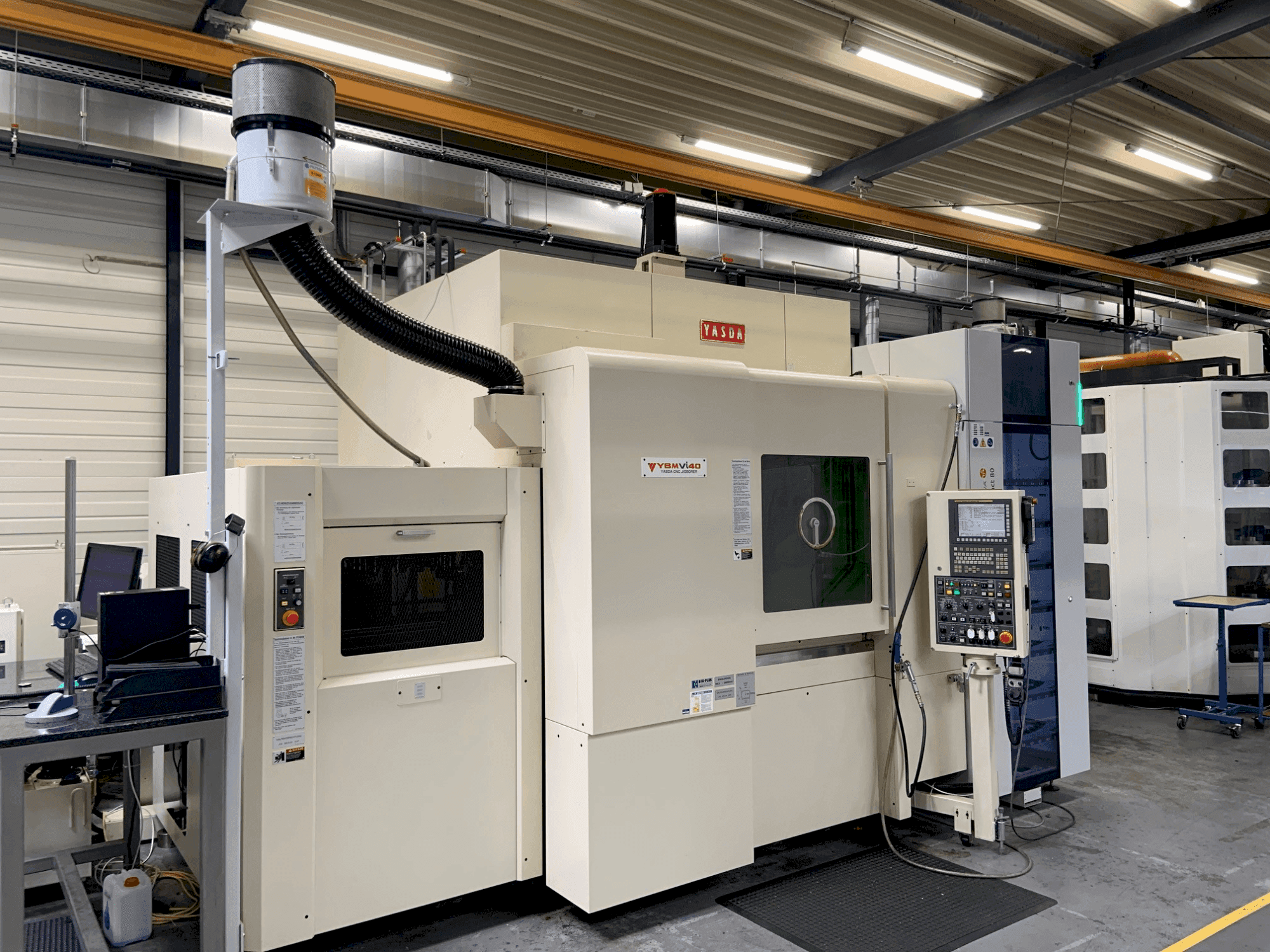

Front view of YASDA YBM Vi40  machine
Front view of YASDA YBM Vi40  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

YASDA YBM Vi40

Photo Gallery
An SVG of an eye

YASDA - YBM Vi40DE-MIL-YAS-2017-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Machine Tools
  • ➤ Used YASDA YBM Vi40 For sale | gindumac.com
Show in original language

This 5-axis YASDA YBM Vi40 vertical machining center was manufactured in 2017. It features a FANUC 31i B5 control unit, a spindle speed range up to 24000min-1, and a rapid traverse speed of 20000mm/min. The machine includes a rotary table with B and C axes, offering a 360-degree rotation and ±110-degree tilt. With a tool holding capacity of 100 places, this YASDA YBM Vi40 machine we have for sale represents a significant opportunity. Contact us for further details.

Overview

  • brand: YASDA
  • year: 2017
  • MODEL: YBM Vi40
  • production hours: 48
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - YASDA YBM Vi40

General Data

  • Measurements width: 3320 MM
  • Measurements depth: 3850 MM
  • Measurements height: 3515 MM
  • Machine weight: 15,000 KG

Control Unit

  • Brand: FANUC
  • Model: 31i B5

Main drive

  • Spindle speed range: 100 - 24000 1/MIN

Movement

  • X-AXIS Movement: 900 mm
  • X-AXIS Rapid traverse: 5000 mm/min
  • Y-AXIS Movement: 500 mm
  • Y-AXIS Rapid traverse: 5000 mm/min
  • Z-AXIS Movement: 450 mm
  • Z-AXIS Rapid traverse: 5000 mm/min
  • AXIS 1 Movement: 360 °
  • AXIS 1 Rapid traverse: 100min-1
  • AXIS 2 Movement: ±110 °
  • AXIS 2 Rapid traverse: 20min-1

Table

  • Min distance between vertical spindle and table: 100 mm
  • Max distance between vertical spindle and table: 550 mm
  • Table load: 200 kg
  • Max punching diameter: 400 mm

Tools

  • Slots in storage: 100
  • Max weight: 7 kg
  • Max tool diameter: 70 mm
  • Max tool length: 250 mm

    Additional Equipment

    • - Measuring probe
    • - Calibration mandrel
    • - Over 300 BBT 40 milling holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Permissible load moment on the table: 200nm
        • - Table surface configuration 44-m12 tap
        • - Max. Rotation speed of rotary axis (1-axis): 100min-1
        • - Max. Rotation speed of tilt axis (2-axis): 20min-1
        • - Inner diameter of spindle bearing diameter: 65mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
