Zoller - SMILE PILOT 1,0RO-MEA-ZOL-2019-00001

Name: Zoller SMILE PILOT 1,0
Brand: Zoller
SKU: RO-MEA-ZOL-2019-00001
Price: 15000 EUR
Availability: InStock

15,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Zoller SMILE PILOT 1,0 For Sale | gindumac.com

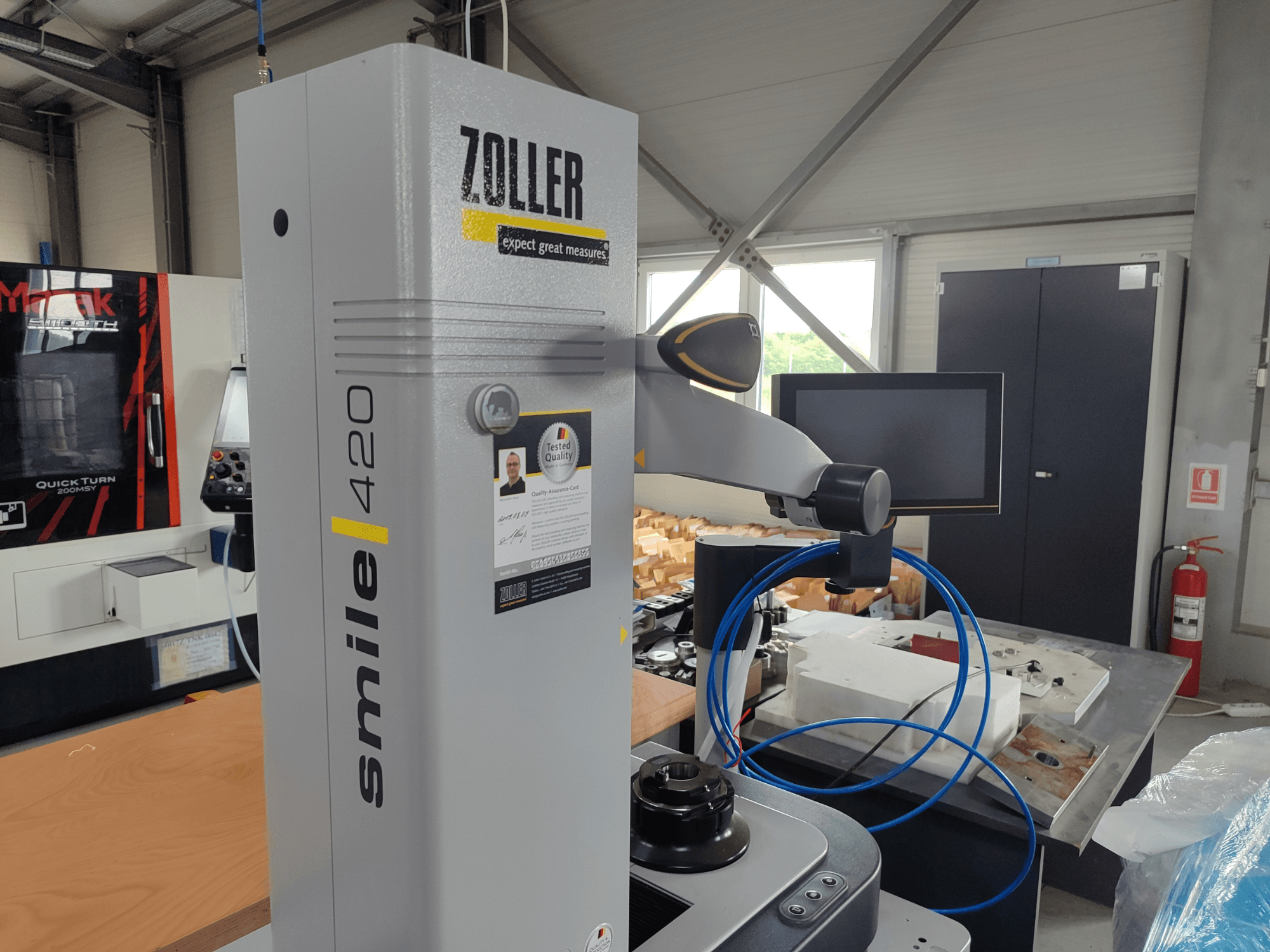

This Zoller SMILE PILOT 1,0 was manufactured in 2019. It features image processing technology Pilot 1.0, a Z-axis length of 400 mm, and a radius on the X-axis of 200 mm. The machine can handle diameters up to 400 mm and snap gauge diameters of 100 mm. Weighing 175 kg and standing 1620 mm tall, it requires a power input of 1000-2000 mA. Consider the opportunity to buy this Zoller SMILE PILOT 1,0 optical measurement machine. Contact us for more information.

Overview

brand: Zoller
year: 2019
MODEL: SMILE PILOT 1,0
application type: Measuring
Location: Romania
machine type: Optical Measurement Machine

Technical Information - Zoller SMILE PILOT 1,0

Additional Information

Additional information

Machine Weight: 175 kg
Dimensions of Machine (LxWxH): Provided height is 1620 mm

Measuring system: Image processing technology Pilot 1.0
Length Z-axis: 400 mm
Radius X-axis: 200 mm
Diameter D: Ø400 mm
Snap gauge D1: Ø100 mm
Concentricity: 2 µm
Setting accuracy: 2 µm
Display accuracy: 1 µm
Repeating accuracy: 2 µm
Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated
Electrical Data (Pilot 1.0):
Voltage: 115–230 V
Frequency: 50/60 Hz ±2%
Power consumption: 230 VA
Power input: 1000–2000 mA
Fuse: F6A (slow)
Operating humidity: 10–95% (non-condensing)
Measurement humidity: 80% (non-condensing)
Noise level: <45 dBA during normal operation, up to 53 dBA with printer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
