ACCUWAY UT-200M

Photo Gallery

ACCUWAY - UT-200MHR-TUR-ACC-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ACCUWAY UT-200M For Sale | gindumac.com

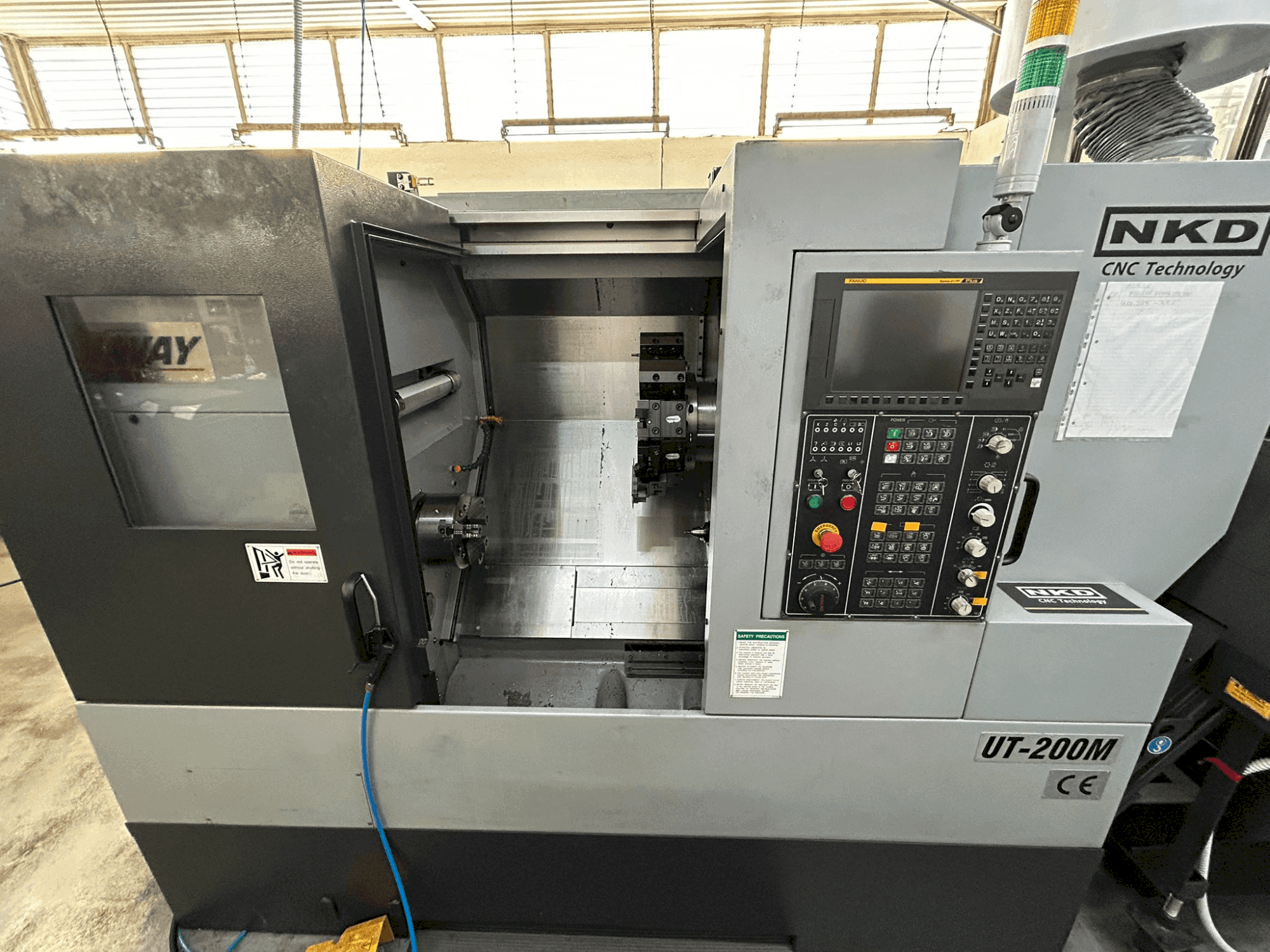

This 2-axis ACCUWAY UT-200M horizontal turning machine was manufactured in 2023. It features a maximum turning diameter of 260 mm and a length up to 470 mm, supported by a robust box guide way. Equipped with a high-speed spindle capable of 6000 rpm and a 12-station turret, it's ideal for precision machining. Consider the opportunity to buy this ACCUWAY UT-200M horizontal turning machine. Contact us for more information about this machine.

Overview

brand: ACCUWAY
year: 2023
MODEL: UT-200M
application type: Turning
Location: Croatia
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ACCUWAY UT-200M

Control Unit

Control Brand: FANUC
Control Model: 0i-T

Dimensions

Machine Depth: 2900 mm
Machine Height: 1900 mm
Machine Weight: 3600 kg

Movement

Number of Axes: 2
X-axis Travel: 220 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Gantry loader system
Auto door
Loader interface
0° rotary tool holder
90° rotary tool holder
Set of additional driven tools for axial and radial milling from Heimatec
Air purification filter retrofitted to the machine

Machine Benefits

Technical Machine Benefits

Maximum turning diameter: 260 mm
Maximum turning length: 470 mm / 370 mm (depending on configuration)
Tailstock body travel: 545 mm
Quill travel: 80 mm

Extra Information

Control Unit FANUC 0i-T controller 10.4” colored LCD monitor RJ-45 interface Rigid tapping Heat exchanger for electric cabinet Lubrication system 4-bar coolant system Three-color warning light Air cooler for electric cabinet Transformer CE version Linear scale Turret Tooling system: BMT / VDI Turret driven type: Servo mechanical Number of tool stations: 12 Square tool shank: 20 mm Round tool shank: 32 mm Maximum rotary tool speed: 6000 rpm Rotary tool power: 3.7 / 5.5 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
