AgieCharmilles - FI 640 CCPL-EDM-AGI-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used AgieCharmilles FI 640 CC For Sale | gindumac.com

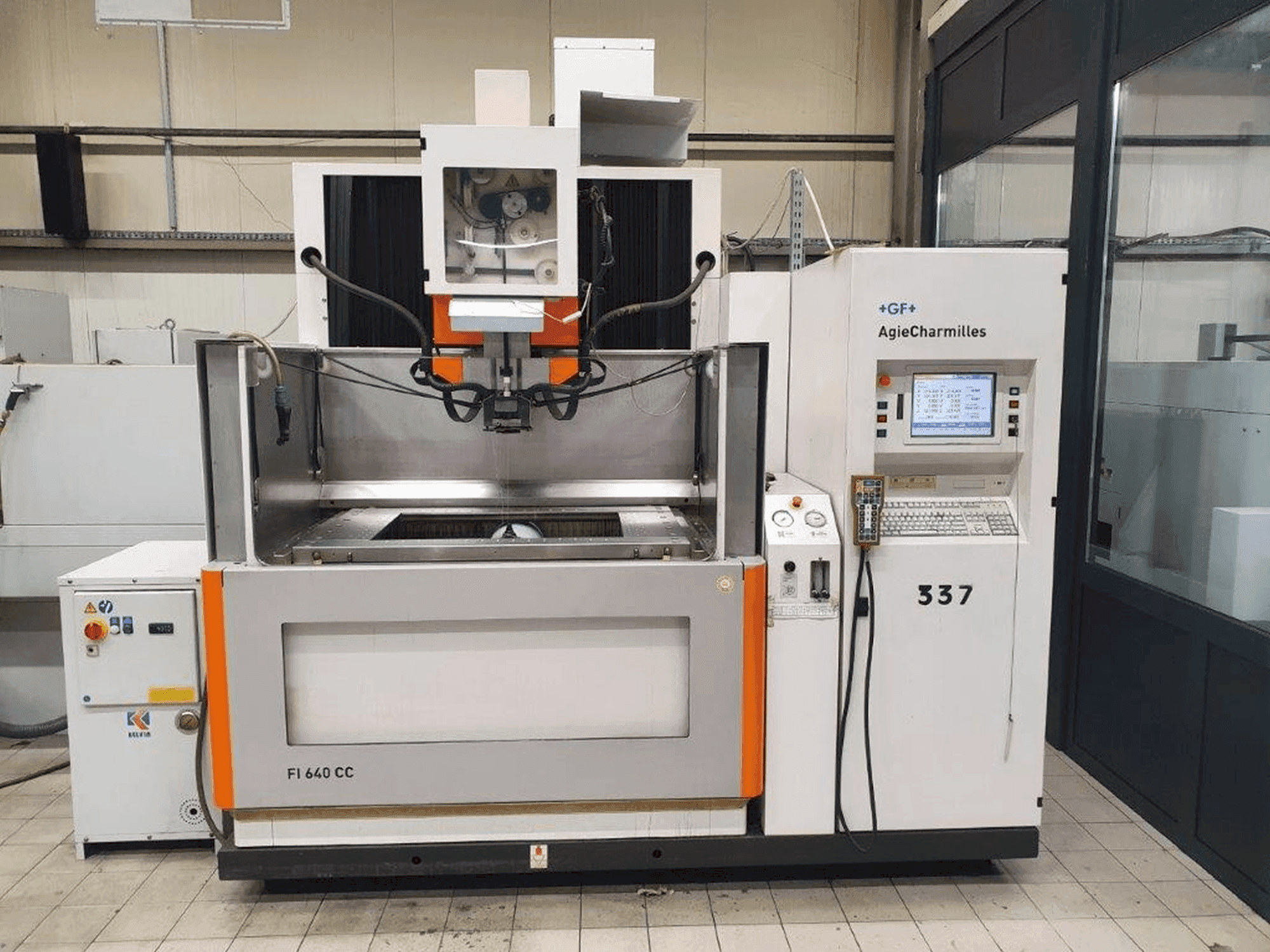

This 5-axis AgieCharmilles FI 640 CC was manufactured in 2008, featuring a robust design with machine dimensions of 2550 × 2700 × 2545 mm and a weight of 5500 kg. It supports a maximum workpiece weight of 3000 kg and dimensions up to 1300 × 1000 × 510 mm. Equipped with collision protection and automatic wire threading, it's ideal for precise wire EDM tasks. Contact us for more information about this machine.
Overview
- brand: AgieCharmilles
- year: 2008
- MODEL: FI 640 CC
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - AgieCharmilles FI 640 CC
General Data
- Measurements width: 2700 mm
- Measurements depth: 2550 mm
- Measurements height: 2545 mm
- Machine weight: 5500 kg
Control Unit
- Brand: FANUC
- Model: PC
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 550 mm
- Z-AXIS Movement: 510 mm
- V-Axis Movement: 550 mm
- U-Axis Movement: 800 mm
Workpiece
- Workpiece weight: 3000 kg
Media
- Power consumption: 12 kVA
Additional Information
- Technical Machine Benefits:
- - Max. Wire tilt angle: ±30°
- - Feed rate: 0 – 1500 mm/min
- - Maximum workpiece dimensions: 1300 × 1000 × 510 mm
- - Maximum cutting height (in immersion): 510 mm
- - Standard supply voltage: 380 or 400 v
- - Frequency: 50 or 60 hz
- - Collision protection: x, y, z, u, v
- - Tools Standard wire guide diameter: 0.25 mm Optional wire guide diameters: 0.1, 0.15, 0.2, 0.3, 0.33 mm Automatic wire threading Automatic re-threading Max. threading height: 510 mm Min. hole diameter for threading: 0.6 mm
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
