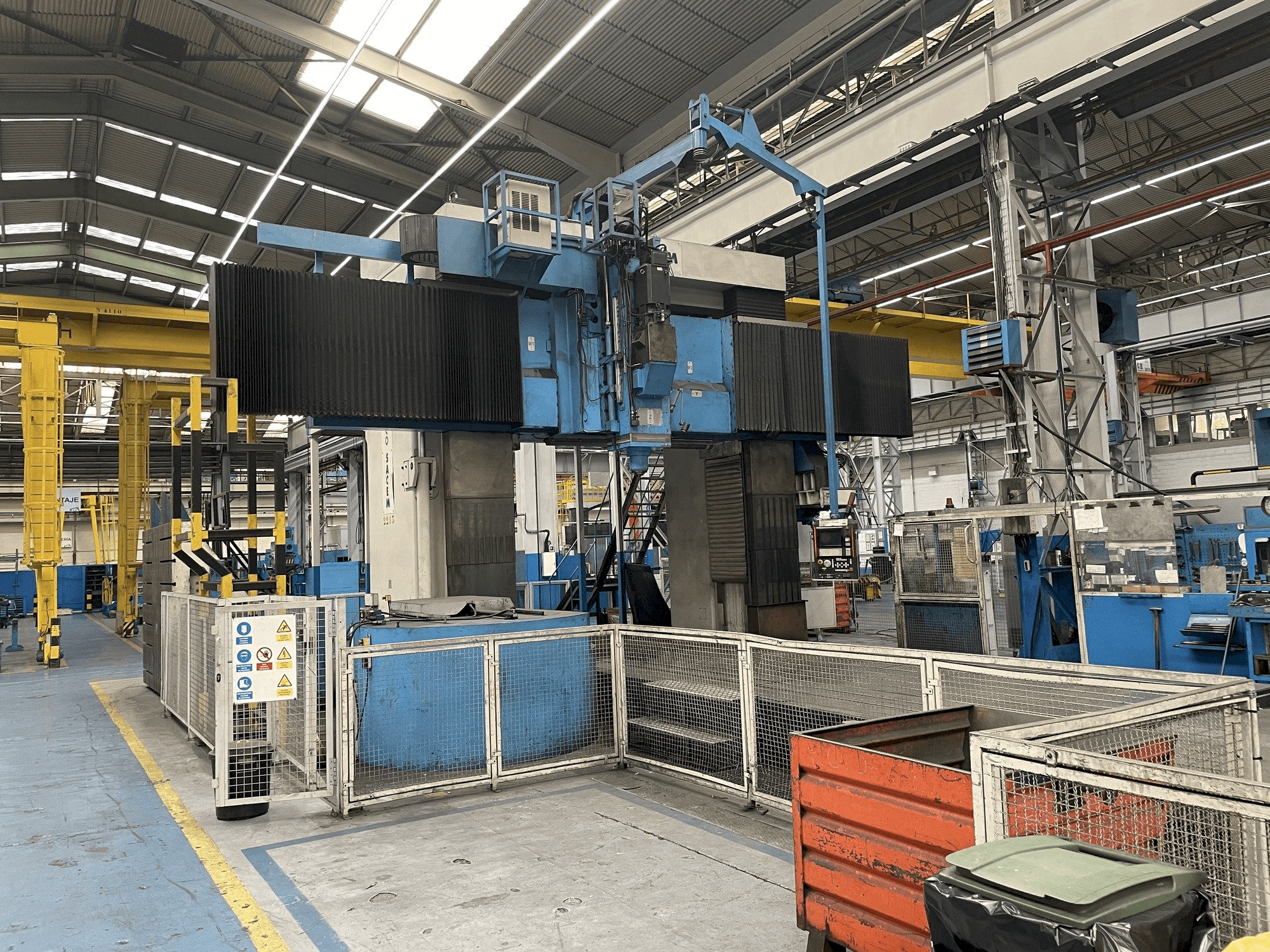

This AMCO-SACEM FPF1-3300 Milling machine was manufactured in the year 2000. It is equipped with an NUM 1060 control unit and has 5 axis. The machine has a spindle speed of 4-3000 rpm.
Overview
- brand: AMCO-SACEM
- year: 2000
- MODEL: ACEM FPF1-3300
- application type: Milling
- Location: Spain
- machine type: Milling Machine
- availability: IMMEDIATELY
- control unit brand: NUM
Technical Information - AMCO-SACEM ACEM FPF1-3300
General Data
- Machine weight: 190000 KG
Control Unit
- Brand: NUM
- Model: 1060
Main drive
- Spindle speed range: 4-3000 1/MIN
- Spindle motor power: 40 KW
- Number of axis: 5
Additional Information
- Technical Machine Benefits:
- - Ram dimensions 570 x 525 mm.
- - Vertical stroke of the crosshead (axes "w1 and w2) 1. 500 mm.
- - Ram vertical stroke (axis "z") 1. 000 mm.
- - Longitudinal table stroke ("x" axis) 6. 000 mm.
- - Transversal course spindle ("y" axis) 5. 200 mm.
- - Cnc spindle rotation "c" axis n x 360°.
- - Cnc spindle rotation "a" axis +- 95°.
- - Working feeds of all axes 3 to 10. 000 mm/min.
- - Rapid traverse on all axes 10. 000 mm/min.
- - Total installed power 175 kva, compressed air flow rate 11 m'/hour
- Qualitative Machine Benefits:
- - Maximum torque on the main spindle 1 360 nm.
- - Nominal speed main spindle 281 грm.
- - Inner cone of the main spindle waldrich-siegen
- - Outer centering diameter 280 mm.
- - Type of tool clamping adapter waldrich-siegen
- - Has 3 heads
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
