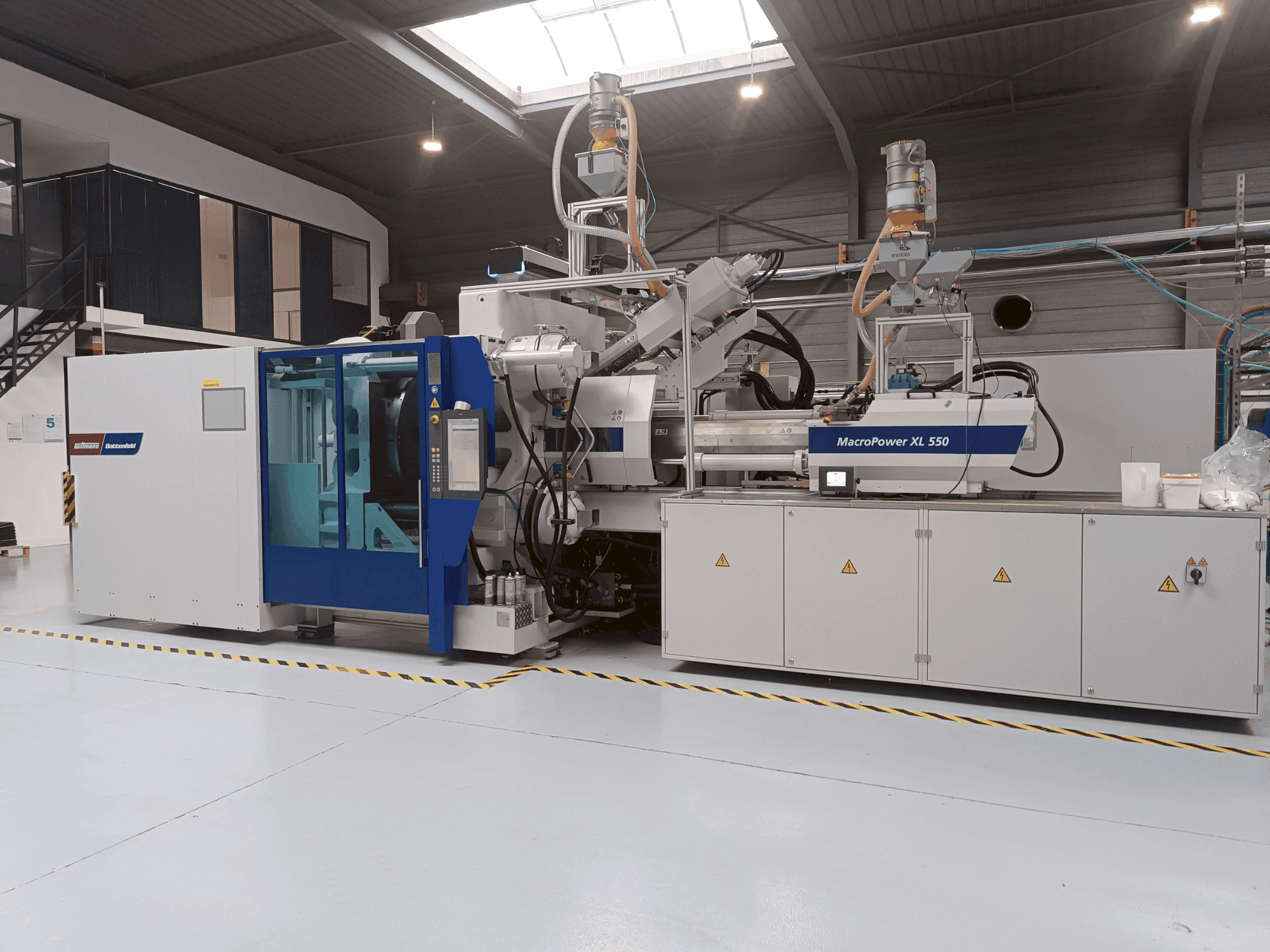

Front view of Battenfeld MacroPower 550XL 2250H-350S 3K  machine
Front view of Battenfeld MacroPower 550XL 2250H-350S 3K  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld MacroPower 550XL 2250H-350S 3K

Photo Gallery
An SVG of an eye

Battenfeld - MacroPower 550XL 2250H-350S 3KFR-INJ-BAT-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Plastics Processing Machinery
  • ➤ Used Battenfeld MacroPower 550XL 2250H-350S 3K For sale
Show in original language

This injection moulding machine was manufactured in 2018. The Battenfeld MacroPower 550XL 2250H-350S 3K features a robust clamping force of 5500 kN and a screw diameter of 65mm for the main injection unit. It supports a maximum platen distance of 2050mm and an opening stroke of 1600mm. Ideal for diverse molding applications, the machine includes a rotary table and is equipped with comprehensive German documentation. Reach out for more information about this injection moulding machine.

Overview

  • brand: Battenfeld
  • year: 2018
  • MODEL: MacroPower 550XL 2250H-350S 3K
  • application type: Injection Moulding
  • Location: France
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - Battenfeld MacroPower 550XL 2250H-350S 3K

Control Unit

  • Model: UNILOG B8

Injection Unit

  • Screw diameter: 65 mm
  • Shot weight: 981.0 g
  • Stroke volume: 1078 cm³
  • Injection pressure: 2070 bar

Clamping unit

  • Clamping force: 5500 kN
  • Opening stroke: 1600 mm
  • Distance between bars: 1120 x 970 mm
  • Mould height min: with/without turntable: 270 mm-450 mm
  • Mould height max: with/without turntable: 1179 mm-1359 mm
  • Size of mold platens: with/without turntable: 1870 mm - 2050 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Injection unit 350l:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
      • - Injection unit 350s:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
      • - Voltage: 230/400v/3p+n-tn/tt 50hz
      • - Documentation: german (including robot + conveyor + fences + rotary table)

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
