bielomatik K3216
bielomatik - K3216
2014
49,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- bielomatik K3216 Vibration welding machine for plastic

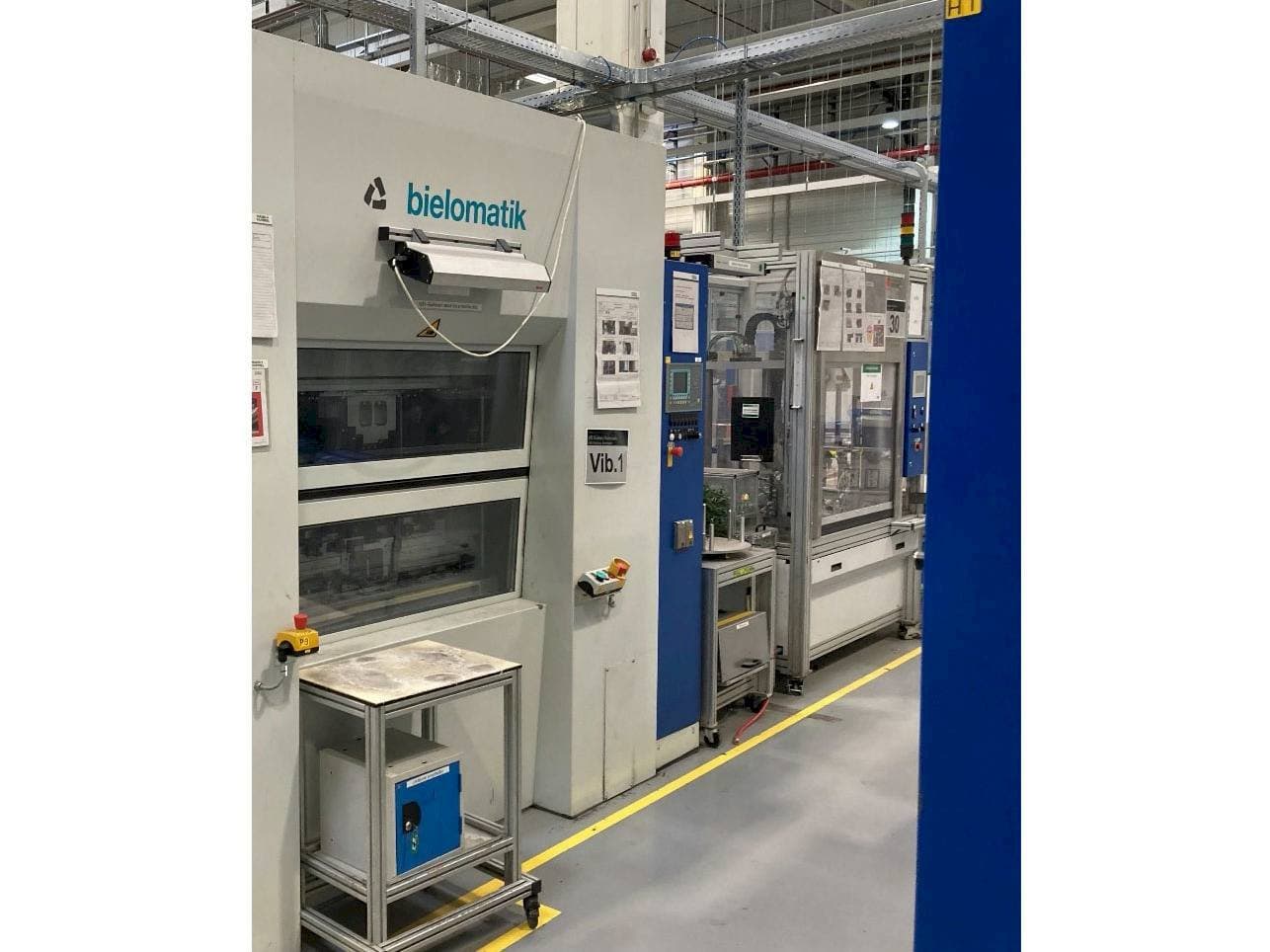

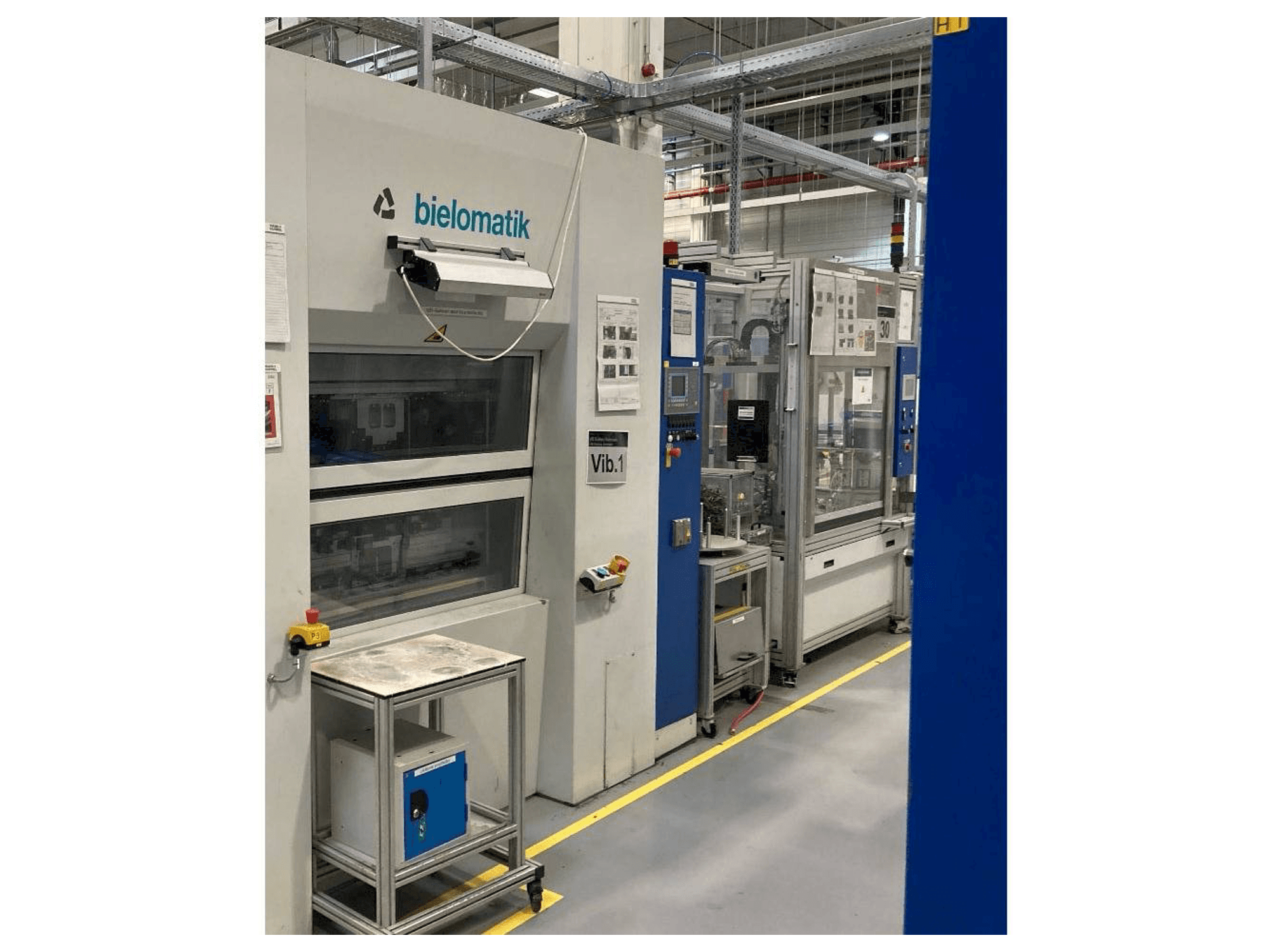

This bielomatik K3216 Vibration welding machine for plastic was manufactured in the year 2014 in Germany. It is equipped with a Siemens S7 with an OP277 control unit.
Overview
- brand: bielomatik
- year: 2014
- MODEL: K3216
- application type: Other (IMM)
- Location: Germany
- machine type: Other
- availability: Immediately
- control unit brand: Siemens
- GINDUMAC ID: DE-OTH-BIE-2014-00001
Technical Information
General Data
- Measurements width: 3200 mm
- Measurements depth: 1960 mm
- Measurements height: 2780 mm
- Machine weight: 4500 kg
Control Unit
- Brand: Siemens
- Model: S7 with OP277
Media
- Main electronic connection: 400 V
- Power consumption: 20 kva
Additional Information
- Technical Machine Benefits:
- - Upper vibration head size: 1220 x 530 mm
- - Standard upper tooling plate: 1220 x 530 mm
- - Lower machine table size: 1320 x 540 mm
- - Standard lower tooling plate: 1320 x 540 mm
- - Clearance between the table and the head: 770 mm
- - Table stroke: 550 mm
- - Min. Tooling height: 220 mm
- - Clamp force (machine table): 24800 n
- - Drive force vibration drive: 16500 n
- - Frequency - variable, depending on tool weight: 170 - 240 hz
- Qualitative Machine Benefits:
- - Amplitude - adjustable: max 1. 3 mm
- - Tooling weight: up to 90 kg
- - Positioning accuracy depth measuring: for machine: +/- 0. 05 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
