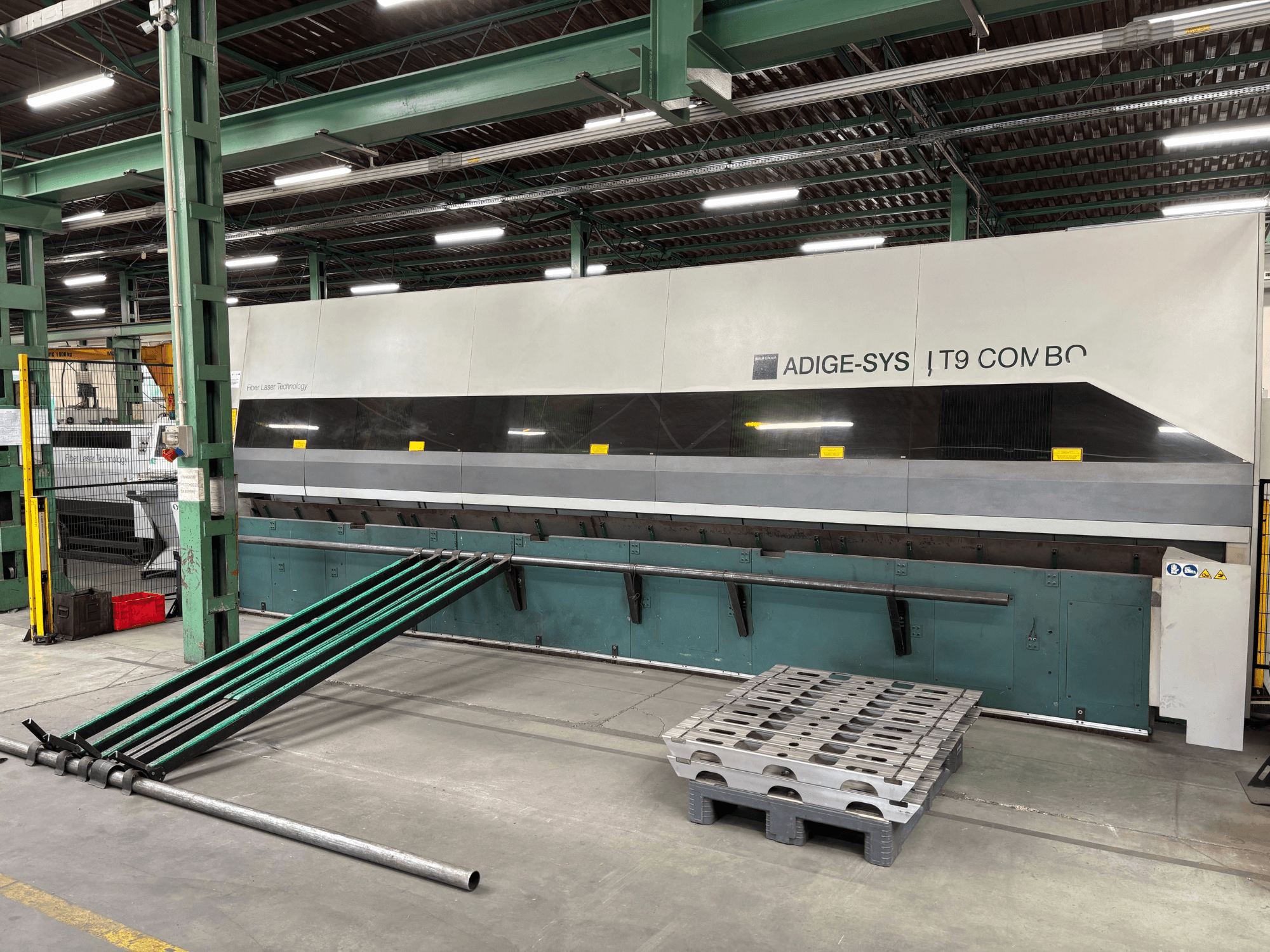

This 3-axis BLM Adige LT9 Combo Fiber 3kW was manufactured in 2012. It features a maximum raw material length of 6,500 mm and can process round tubes with a diameter of up to 225 mm. The machine is equipped with a powerful 3 kW fiber laser, ideal for cutting tubes, profiles, and sheet metal. If you are looking to get high-quality cutting capabilities, consider the BLM Adige LT9 Combo Fiber 3kW machine we have for sale. Contact us for further details.
Overview
- brand: BLM
- year: 2012
- MODEL: Adige LT9 Combo Fiber 3kW
- application type: Cutting
- Location: Poland
- machine type: Tube Cutting Machine
- Available from: 01/09/2026
- control unit brand: SIEMENS
Technical Information - BLM Adige LT9 Combo Fiber 3kW
Control Unit
- Control Brand: SIEMENS
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 3 kW
Additional Information
Rated voltage: 400–460 V AC, 3-phase
Frequency: 50/60 Hz
Full load current: 30.8 A
Tube and profile processing
Max raw material length: 6,500 mm
Max finished part length: 6,000 mm
Max round tube diameter: 225 mm
Max square profile: 160 x 160 mm
Max rectangular profile: 200 x 100 mm
Min round tube diameter: 16 mm
Min square profile: 16 x 16 mm
Min rectangular profile: 16 x 16 mm
Max bar weight (below 6 m): 200 kg
Max linear weight: 35 kg/m
Max finished part weight: 200 kg
Sheet metal processing
Max sheet size: 3,000 x 1,500 mm
Max sheet thickness / table capacity: 20 mm
Machine electrical data
Power supply: 3-phase, without neutral
Supply voltage: 400 V +/- 10%
Frequency: 50 Hz
Installed machine power: 55 kVA
Rated current: 80 A
Cable cross-section: 35 mm²
Connection socket: 125 A
Circuit breaker: 125 A
Protection rating: IP54 / IP20
Additional equipment
Cooling unit
Manufacturer: STULZ
Model: WRAA64
Power supply: 3-phase, without neutral
Supply voltage: 400 V (460 V) +/- 10%
Frequency: 50–60 Hz
Installed power: 12 kVA
Rated current: 17.2 A
Connection socket: 32 A
Circuit breaker: 32 A
Tank capacity: 150 liters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
