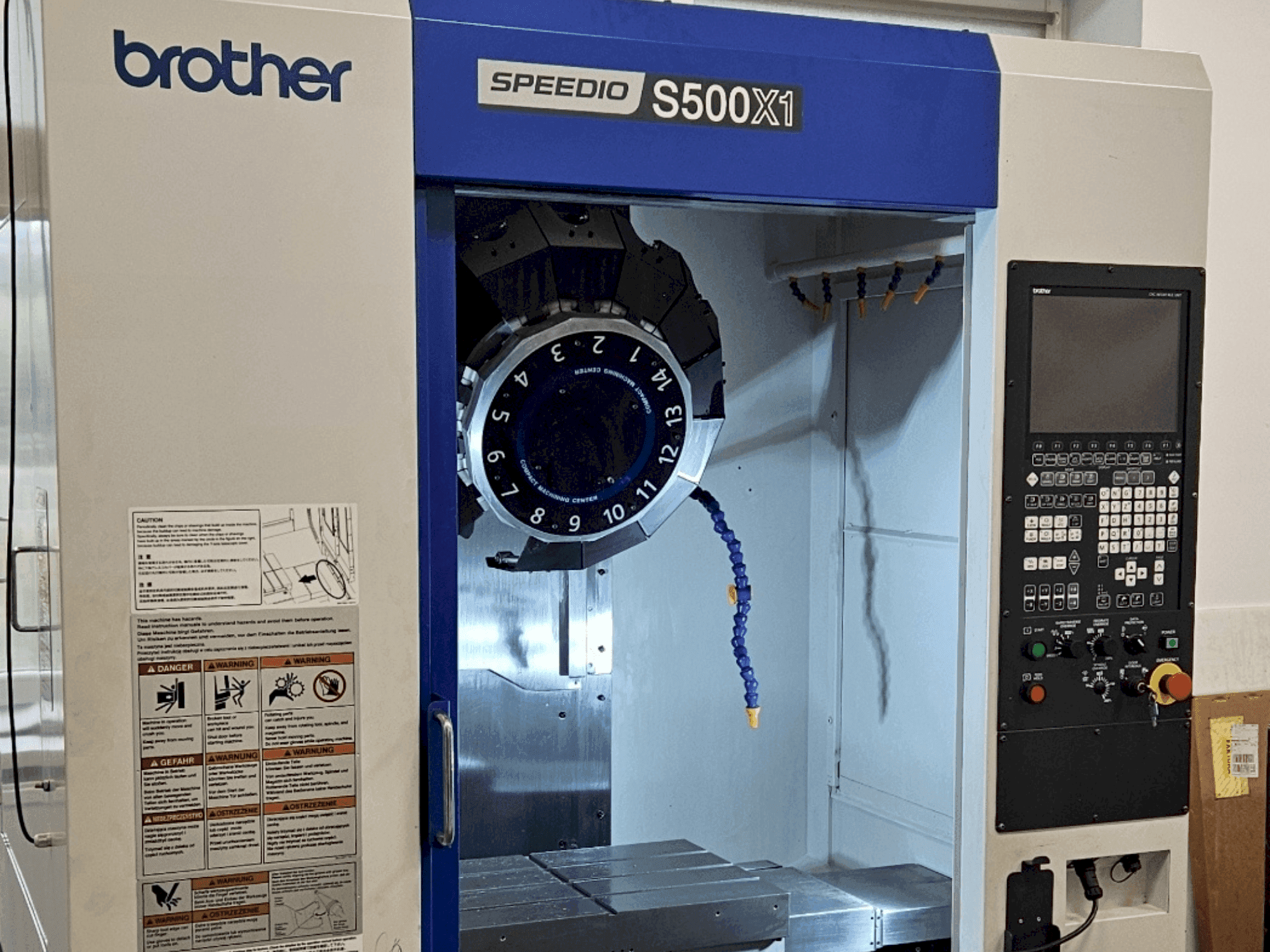

Front view of Brother Speedio S500X1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Brother Speedio S500X1

Photo Gallery

Brother - Speedio S500X1PL-MIL-BRO-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Brother Speedio S500X1 For Sale | gindumac.com

This 3-axis Brother Speedio S500X1 vertical machining center was manufactured in 2018. It features a spindle speed of 16000 rpm, a rapid traverse rate of 50 × 50 × 56 m/min, and a tool storage capacity of 14. With X, Y, Z travels of 500 mm, 400 mm, and 300 mm respectively, and a max loading capacity of 250 kg, the Brother Speedio S500X1 machine we have for sale is a robust choice. Contact us for further details regarding this vertical machining center.

Overview

brand: Brother
year: 2018
MODEL: Speedio S500X1
production hours: 442
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - Brother Speedio S500X1

General Data

Measurements width: 2220 mm
Measurements depth: 1560 mm
Measurements height: 2497 mm

Main drive

Number of spindles: 1
Spindle speed range: 16000 rpm 1/MIN
Tool taper: MAS-BT30
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 300 mm

Tools

Max weight: 3 kg
Max tool diameter: 110 mm
Max tool length: 250 mm

Additional Information

Additional equipment

Included machine: 1 vise, 2 milling heads, around 30 tool holders.

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Distance table and spindle: 180–480 mm
Work area size: 600 × 400 mm
Table max loading capacity: 250 kg
Rapid traverse rate: 50 × 50 × 56 m/min
Cutting feed rate: x, y, z axis: 1–30,000 mm/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
