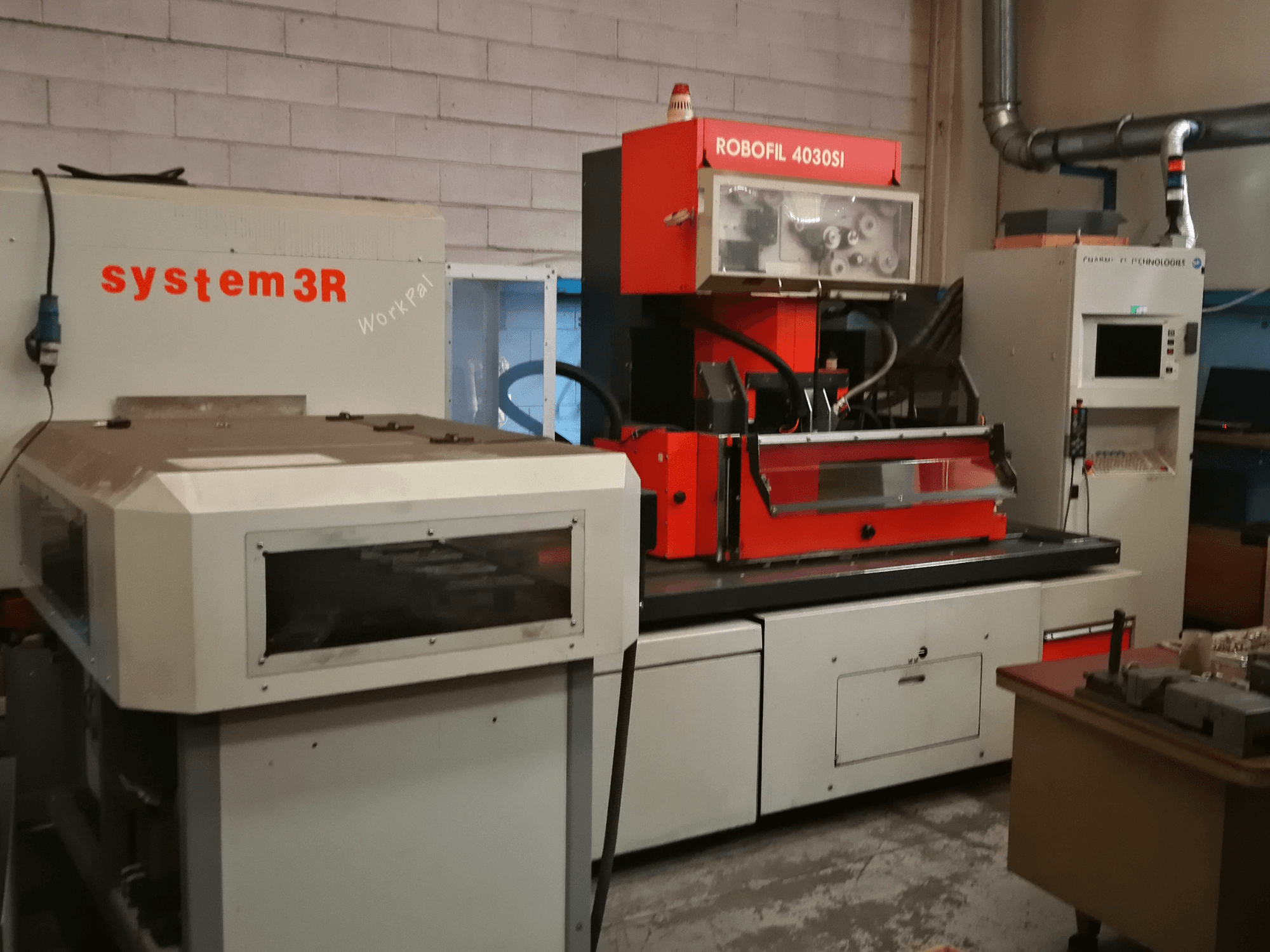

This 4-axis CHARMILLES ROBOFIL 4030 Si was manufactured in 1999. It features a maximum workpiece dimension of 1200 x 700 x 400 mm and can handle a weight of up to 1500 kg. The machine is equipped with a wire diameter range of 0.05 – 0.30 mm and a maximum cutting speed of 500 mm²/min. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES ROBOFIL 4030 Si machine we have for sale. Contact us for further details.
Overview
- brand: CHARMILLES
- year: 1999
- MODEL: ROBOFIL 4030 Si
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
Technical Information - CHARMILLES ROBOFIL 4030 Si
Dimensions
- Machine Height: 2430 mm
- Machine Length: 4010 mm
- Machine Weight: 4170 kg
- Machine Width: 3340 mm
Movement
- Number of Axes: 4
- X-axis Travel: 400 mm
- Z-axis Travel: 250 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.05 mm
Additional Information
Workpiece:
Max workpiece dimensions: 1200 x 700 x 400 mm
Max workpiece weight: 1500 kg
Axes travels:
Y-axis: 300 mm
U/V axes: ±48 mm
Wire EDM:
Max wire speed: 15 m/min
Max cutting speed: 500 mm²/min
Tank / dielectric:
Tank dimensions: 850 x 600 mm
Dielectric volume: ~800 l
Electrical:
Power consumption: 45 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
