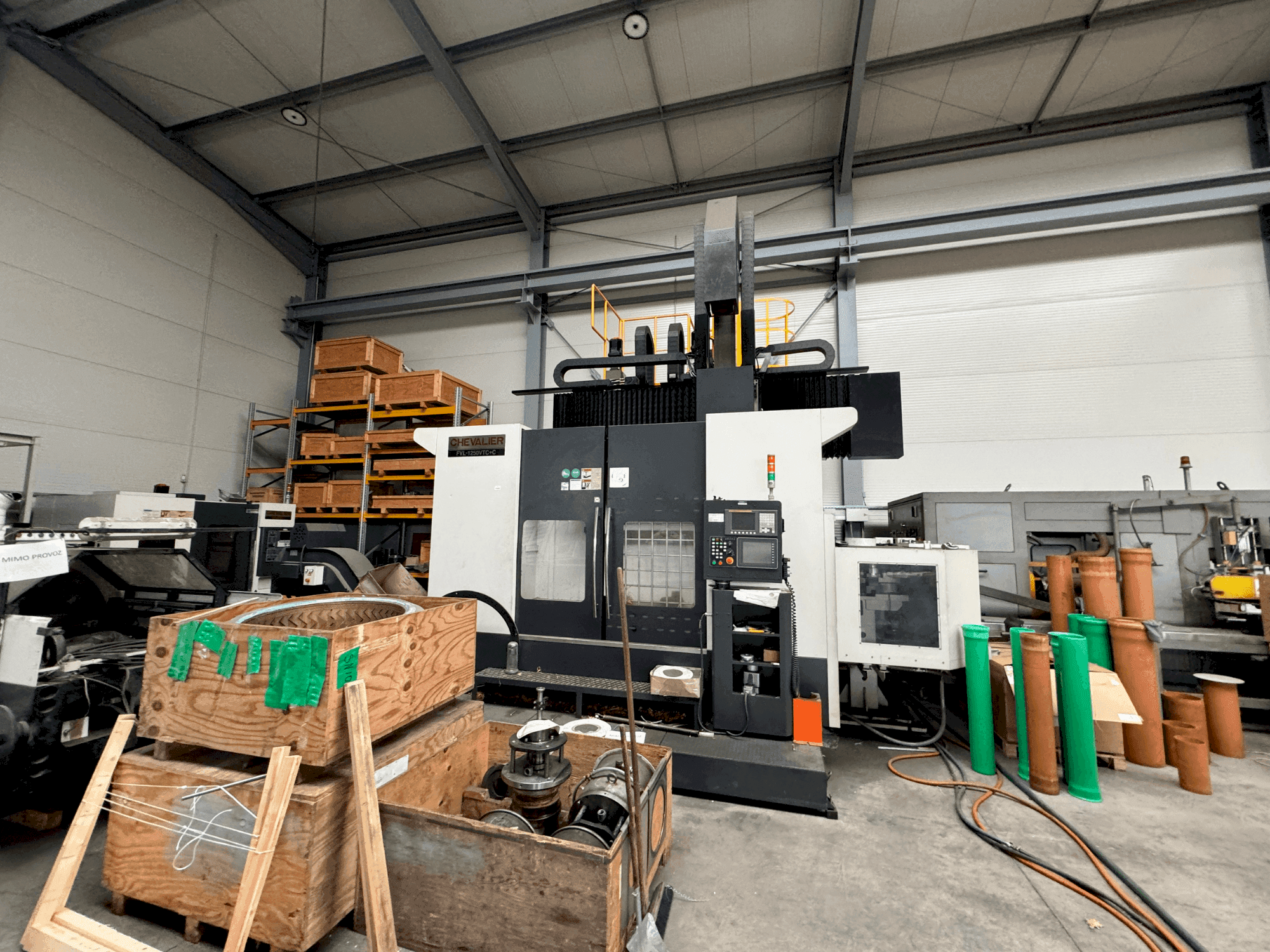

Front view of Chevalier FVL-1250VTC+C  machine

Chevalier - FVL-1250VTC+CCZ-TUR-CHE-2015-00001

335,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-Axis lathe manufactured in 2015, the CHEVALIER FVL-1250VTC+C, is equipped with high-precision capabilities. It boasts a max. swing and cutting diameter of 1,600 mm, and a turning height of 1,200 mm. With a spindle speed up to 2,500 rpm and a robust table capable of supporting 8,000 kg, this machine ensures high-torque operations. The addition of a C Axis with a minimum index angle of 0.001° enhances versatility. The CHEVALIER FVL-1250VTC+C machine we have for sale is like new, having only been tested. Contact us to learn more about this opportunity.

Overview

  • brand: Chevalier
  • year: 2015
  • MODEL: FVL-1250VTC+C
  • application type: Turning
  • Location: Czech Republic
  • machine type: Vertical Turning Machine
  • availability: IMMEDIATELY

Technical Information - Chevalier FVL-1250VTC+C

General Data

  • Measurements width: 7480 MM
  • Measurements depth: 5900 MM
  • Measurements height: 5580 MM
  • Machine weight: 22000 KG

Main drive

  • Spindle speed range: 25 ~ 2,500 rpm 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 665 mm
  • Y-AXIS Movement: 960 mm
  • Z-AXIS Movement: 900 mm

Table

  • Table load: 8000 KG

    Additional Equipment

    • - Tool shank BT50

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Swing diameter 1,600 mm // max. Cutting diameter 1,600 mm
        • - Max. Turning height 1,200 mm
        • - Max. Torque 11,461 nm
        • - Table diameter 1,250 mm
        • - Speed range high: 151 ~ 300 rpm / low: 3 ~ 150 rpm
        • - Height from table to ground 900 mm
        • - Spindle taper iso 7/24 no. 50
        • - Distance from spindle nose to table surface 1,400 mm
        • - W-beam travel 800 mm // x, z-axis rapid traverse 10 m/min
        • - C axis min. Index angle 0. 001° // rotation speed 3. 3 rpm
      • Qualitative Machine Benefits:
        • - Machine like new, only tested.

      Extra information

      • - MACHINE STILL UNDER POWER

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
