CME FCM 6000

Photo Gallery

CME - FCM 6000BE-MIL-CME-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

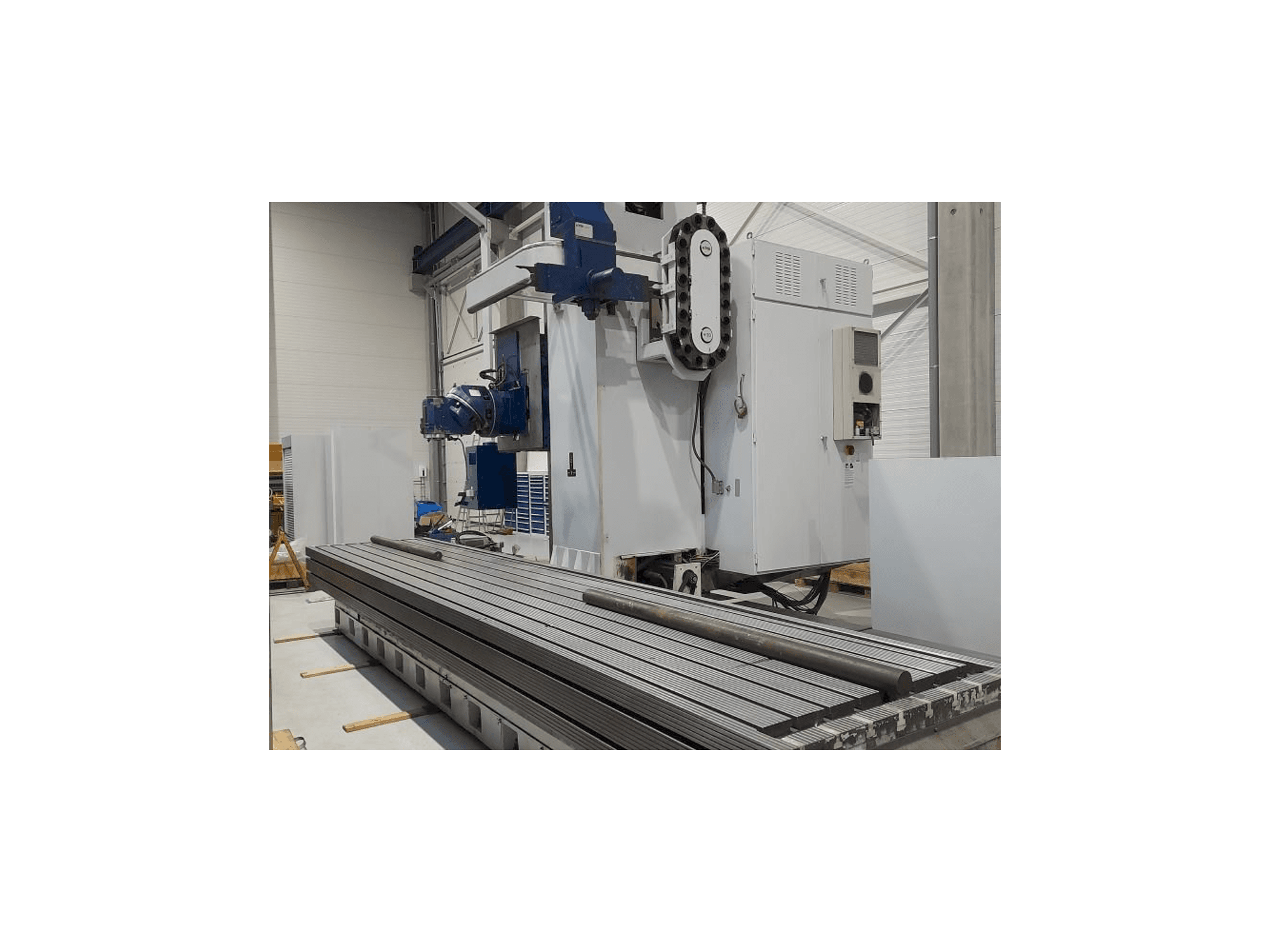

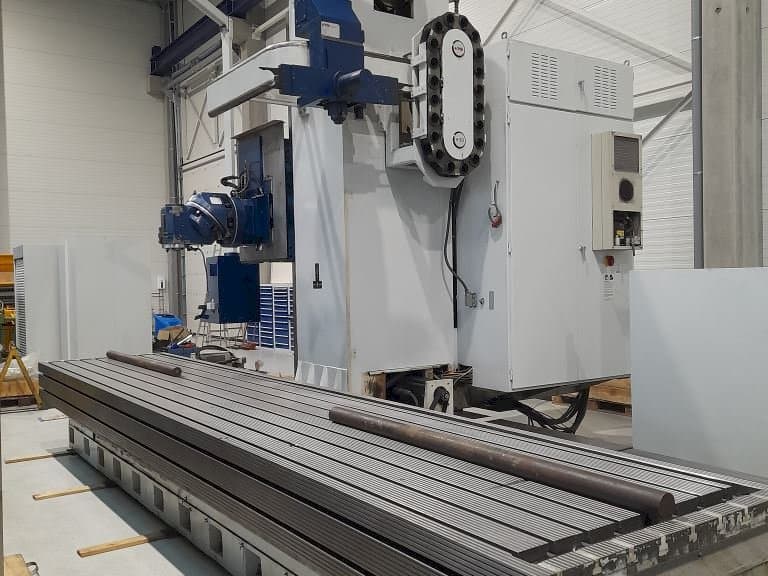

CME FCM 6000 Milling Machine

This CME FCM 6000 Milling Machine was manufactured in the year 2000. It is equipped with a HEIDENHAIN TNC 426 CB control unit. This 4 axis machine works with a spindle speed 3000 rpm. It presents very good working conditions, as it was well maintained and serviced.

Overview

brand: CME
year: 2000
MODEL: FCM 6000
application type: Milling
Location: Belgium
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CME FCM 6000

General Data

Measurements width: 12100 mm
Measurements depth: 4700 mm
Measurements height: 4600 mm
Machine weight: 40000 kg

Control Unit

Model: TNC 426 CB
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 0 - 3000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Rapid traverse: 1200 mm
Z-AXIS Movement: 2000 mm

Table

Outer length: 6500 mm
Outer width: 1200 mm

Tools

Slots in storage: 20
Type of tool holder: ISO 50

Media

Main electronic connection: 400 V/50
Power consumption: 30 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc contouring control include color screen
- - T-slots 22 h8/140
- - Distance table-spindle (horizontal): 275 - 2275 mm
- - Distance table-spindle (vertical): 25-2025 mm
- - Feed range (linear axes): 10000 mm/min
- - Feed force (linear axes): 25000 n
Qualitative Machine Benefits:
- - This machine is in a very good, well maintained and serviced condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
