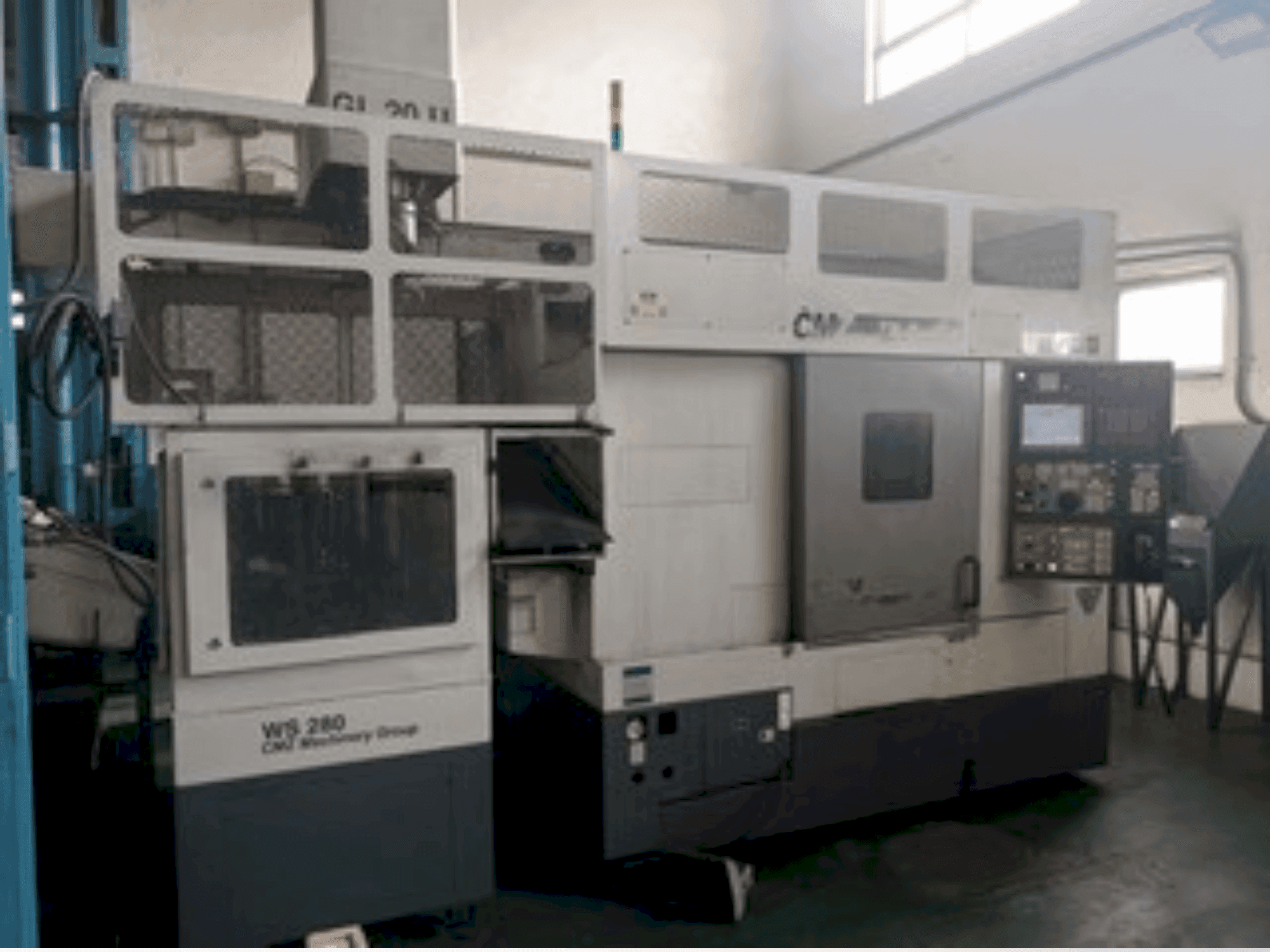

CMZ TA 30-400

Photo Gallery

CMZ - TA 30-400ES-TUR-CMZ-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CMZ TA 30-400 - Lathe For Sale | gindumac.com

This CMZ TA 30-400 lathe was manufactured in 2015. It features a maximum turning diameter of 460 mm and supports bar diameters up to 78 mm. The spindle reaches speeds up to 3500 rpm, powered by a robust 42 kW motor, ensuring high torque of 1020 Nm. Equipped with a 12-position turret, rapid speeds on X and Z axes are 30 m/min, enhancing productivity. A great opportunity to buy this CMZ TA 30-400 lathe. Contact us for further details regarding this lathe.

Overview

brand: CMZ
year: 2015
MODEL: TA 30-400
application type: Turning
Location: Spain
machine type: Turn-Mill Centre

Technical Information - CMZ TA 30-400

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 42 kW (max.), 27 kW (S6 40%)
Tool taper: ASA 8" A2
Number of axis: 2

Movement

X-AXIS Movement: 310 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 30 m/min
B-AXIS Movement: 400 mm
B-AXIS Rapid traverse: 11 m/min

Workpiece

Workpiece drm over bed: 760 mm
Workpiece drm over support: 600 mm
Workpiece drm: 460 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Tool change time: 30° 0. 2 s – 180° 0. 5 s
Locking force at 45 bar: 5090 kgf
High spindle power of 42 kw (max. ), rapid speeds on x, z, and b axes for efficient machining, robust torque for heavy-duty operations
Precision with rapid speeds and axis acceleration of 1g

Technical Machine Benefits

Axis acceleration: 1g = 9. 8 m/s²
Distance between spindle and tailstock center: 449 mm
Bearing outer diameter: 200 mm
Bearing inner diameter: 130 mm
Spindle inner diameter: 86 mm
Bar diameter: 78 mm
Chuck diameter: 250 / 315 mm
Chuck bore diameter: 77 mm
Torque: 1020 nm (maximum), 720 nm (s6 40%)
Tool section: 25 x 25 (50) mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
