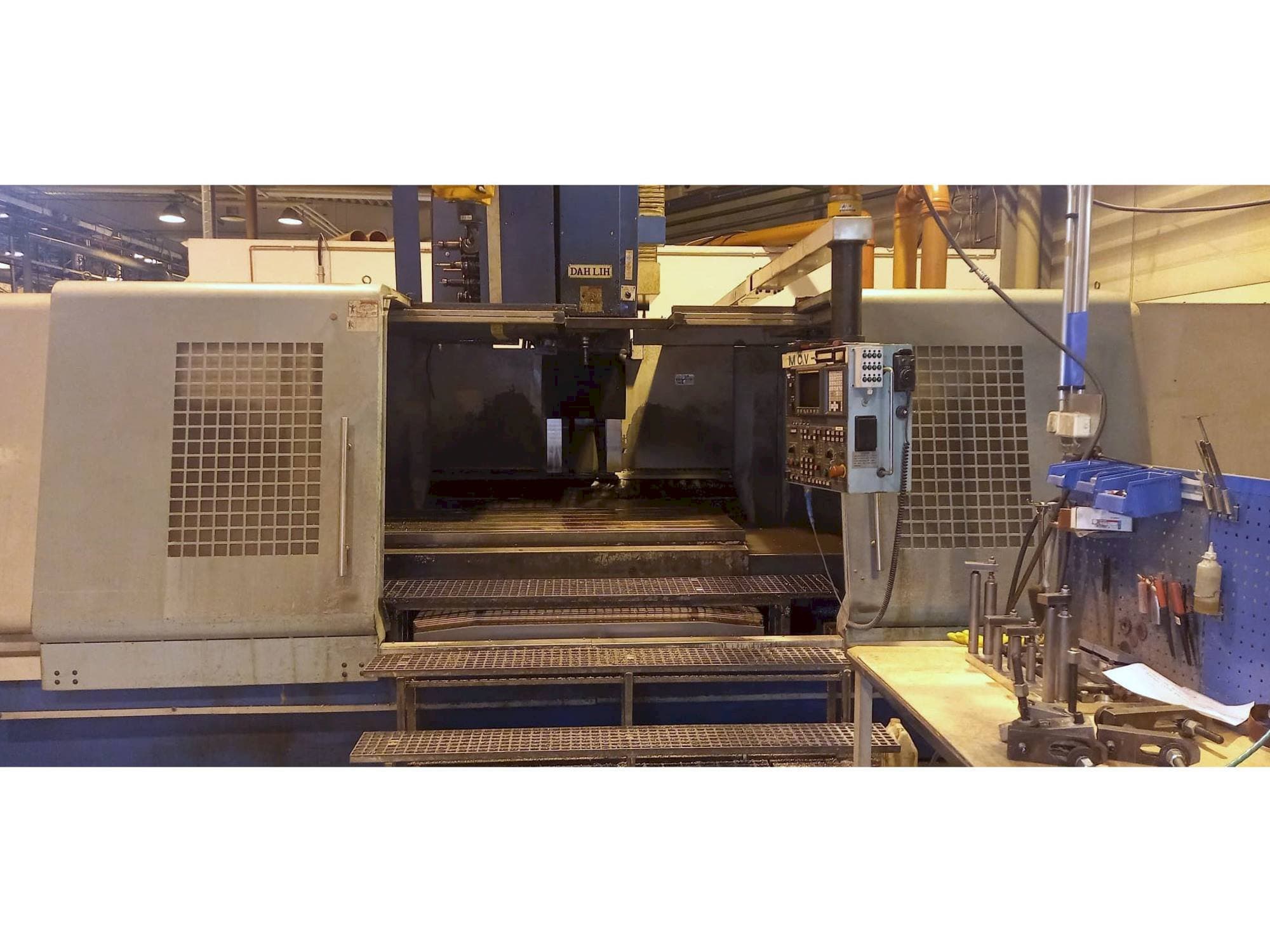

Front view of DAH LIH MCV 2600  machine

DAH LIH - MCV 2600FI-MIL-DAH-2003-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Dah-Lih MCV 2600 Vertical Machining Center was manufactured in the year 2003 in Taiwan and has 13300 production hours. It is equipped with a Fanuc Series Oi- MB control unit and has 4 axis. The machine has a spindle speed 35-3500 rpm.

Overview

  • brand: DAH LIH
  • year: 2003
  • MODEL: MCV 2600
  • production hours: 13300
  • application type: Milling
  • Location: Finland
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fanuc

Technical Information - DAH LIH MCV 2600

General Data

  • Measurements width: 7430 mm
  • Measurements depth: 4135 mm
  • Measurements height: 3496 mm
  • Machine weight: 16000 kg

Control Unit

  • Brand: Fanuc
  • Model: Series Oi-MB

Main drive

  • Number of spindles: 1
  • Spindle speed range: 35-3500 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 2600 mm
  • Y-AXIS Movement: 850 mm
  • Z-AXIS Movement: 750 mm

Workpiece

  • Workpiece weight: 3000 kg

Table

  • Outer length: 2300 mm
  • Outer width: 800 mm

Tools

  • Slots in storage: 32
  • Max weight: 15 kg
  • Max tool diameter: 125 mm
  • Max tool length: 350 mm
  • Type of tool holder: BT50

Media

  • Main electronic connection: 400 V

    Additional Equipment

    • - Heidenhain touch probe for measuring products

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
