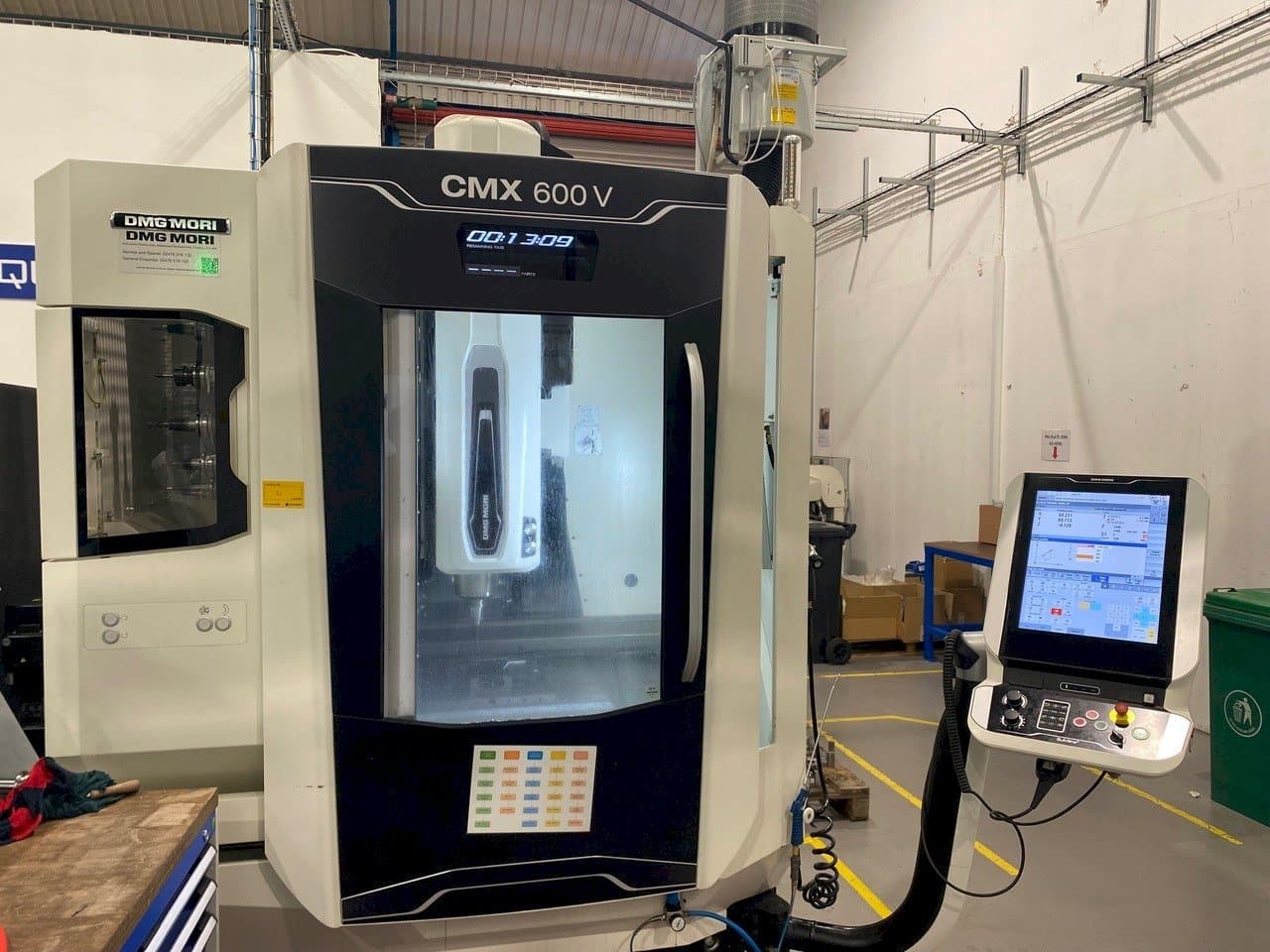

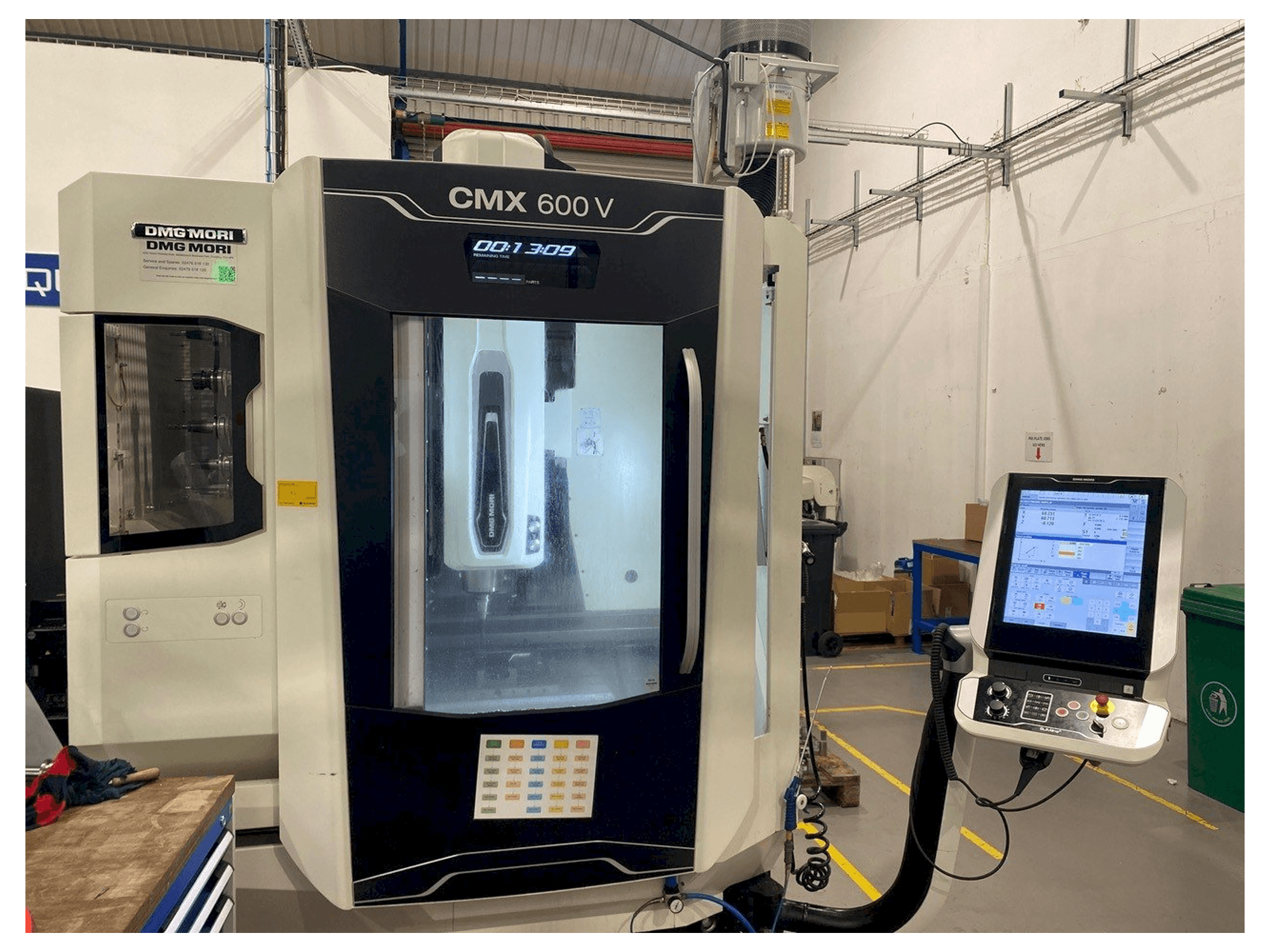

Front view of DMG CMX 600 V  machine

DMG CMX 600 V

DMG - CMX 600 V

2018

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG CMX 600 V vertical machine center was built in the year 2018 in Poland and has 14603 hours, of which 4740 are spindle hours. It is equipped with a Siemens 840D SL Slimline Multi-Touch Operate 4.7 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition.

Overview

  • brand: DMG
  • year: 2018
  • MODEL: CMX 600 V
  • production hours: 14603
  • application type: Milling
  • Location: United Kingdom
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: GB-MIL-DMG-2018-00001

Technical Information

General Data

  • Measurements width: 2954 mm
  • Measurements depth: 2757 mm
  • Measurements height: 2935 mm
  • Machine weight: 5000 kg

Control Unit

  • Brand: Siemens
  • Model: 840D SL Slimline Multi Touch Operate 4.7

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 13/9 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 560 mm
  • Z-AXIS Movement: 510 mm

Workpiece

  • Workpiece weight: 600 kg

Table

  • Outer length: 900 mm
  • Outer width: 560 mm

Tools

  • Slots in storage: 30
  • Max weight: 8 kg
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT 40

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Min-max height under spindle 120 - 630 mm
      • - Rapid feed rates 30m/minute
      • - Tool setter
      • - Swarf conveyor
      • - Tool change time (chip to chip) 6. 7 seconds
      • - 3-axis controlled
    • Qualitative Machine Benefits:
      • - Very good condition

    Extra information

    • - oil mist filter and the clamping unit which was on the table it's not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
