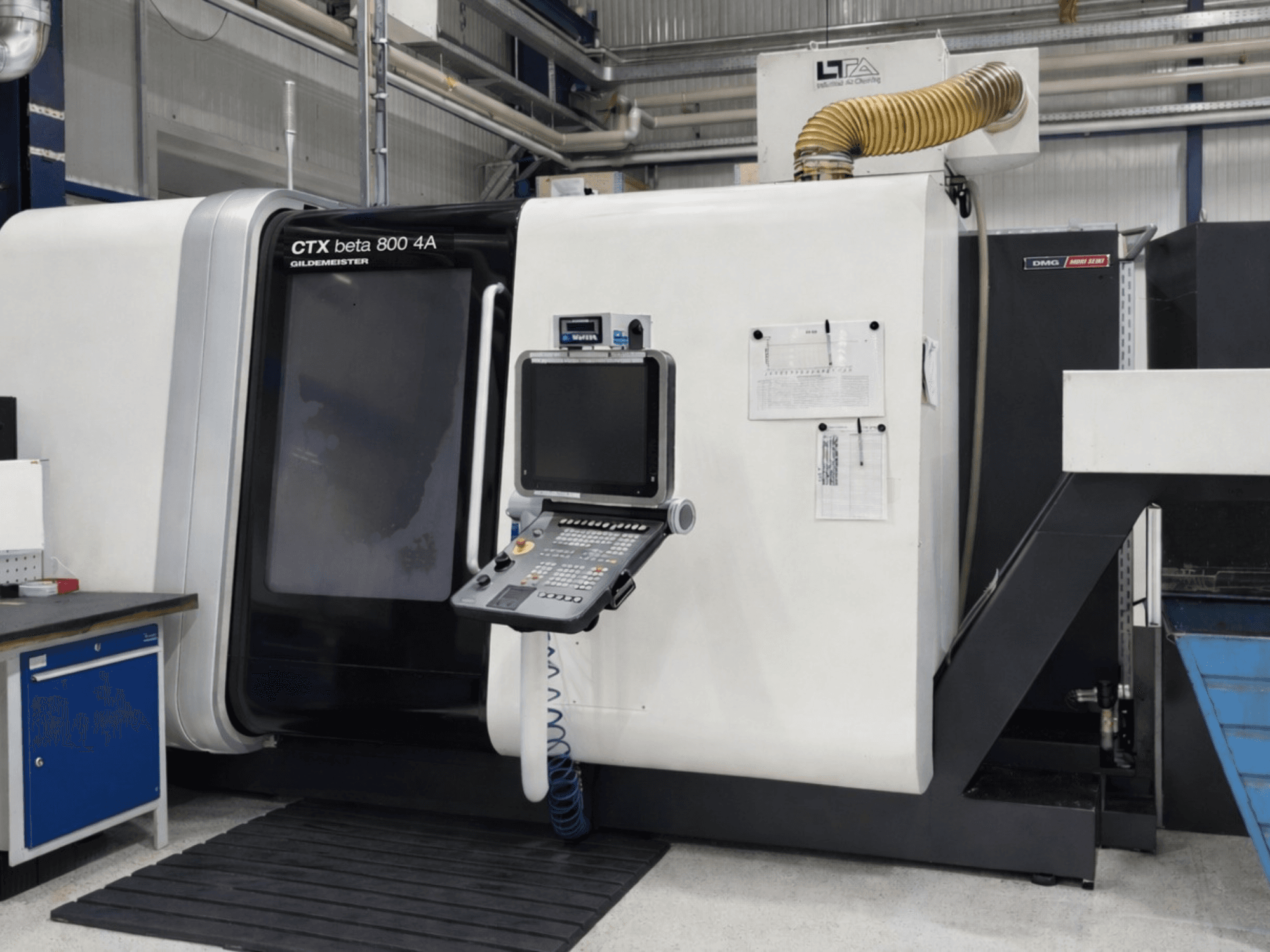

DMG - CTX beta 800 4ADE-TUR-DMG-2013-00004

- Control: Siemens 840D Solutionline with ERGOline Control and ShopTurn 3G

- Max Turning Diameter: 340 mm

- Max Turning Length: 735 mm

- Main Spindle (HS): Integrated spindle motor ISM 102, 40/48 kW (100/40% ED), 0-4000 rpm, 570/680 Nm

- Counter Spindle (GS): Integrated spindle motor ISM 76, 25/32 kW (100/40% ED), 0-5000 rpm

- Draw Tube Inner Diameter: 104 mm

- Tool Turrets: 2x 12-station Sauter star turrets (VDI 40 with Trifix interface, DIN 69880-40)

- Driven Tool Drive: 2x Direct Drive, 40-10,000 rpm, 14.2 kW, 34 Nm

- Axis Configuration: 4 Main Motion Axes (X1, Z1, X2, Z2), 2 C-Axes with hydraulic spindle brake (HS + GS), Y-Axis for Slide 1 and Slide 2 (stroke 40 mm), NC cross-stroke X3 axis for counter-spindle slide (180 mm)

- Counter Spindle Slide: Includes NC cross-stroke X3 (180 mm) with linear scale, and integrated tailstock

- Tailstock: Automatic quill stroke 300 mm, tailstock force 1.5 - 6.3 kN, revolving center MT5

- Measuring Systems: Direct measuring systems (Glass scales) in X1, X2, and X3 axes

- Coolant System: 980 Liter tank with band filter, cooler, 8/20/80 bar pressure options, and expansion for Turret 2

- Additional Equipment: Chip conveyor, automatic electric sliding hood, workpiece in-process measurement system (Renishaw), Brankamp CMS collision monitoring system, mechanical oil mist separator (1,100 m³/h)
