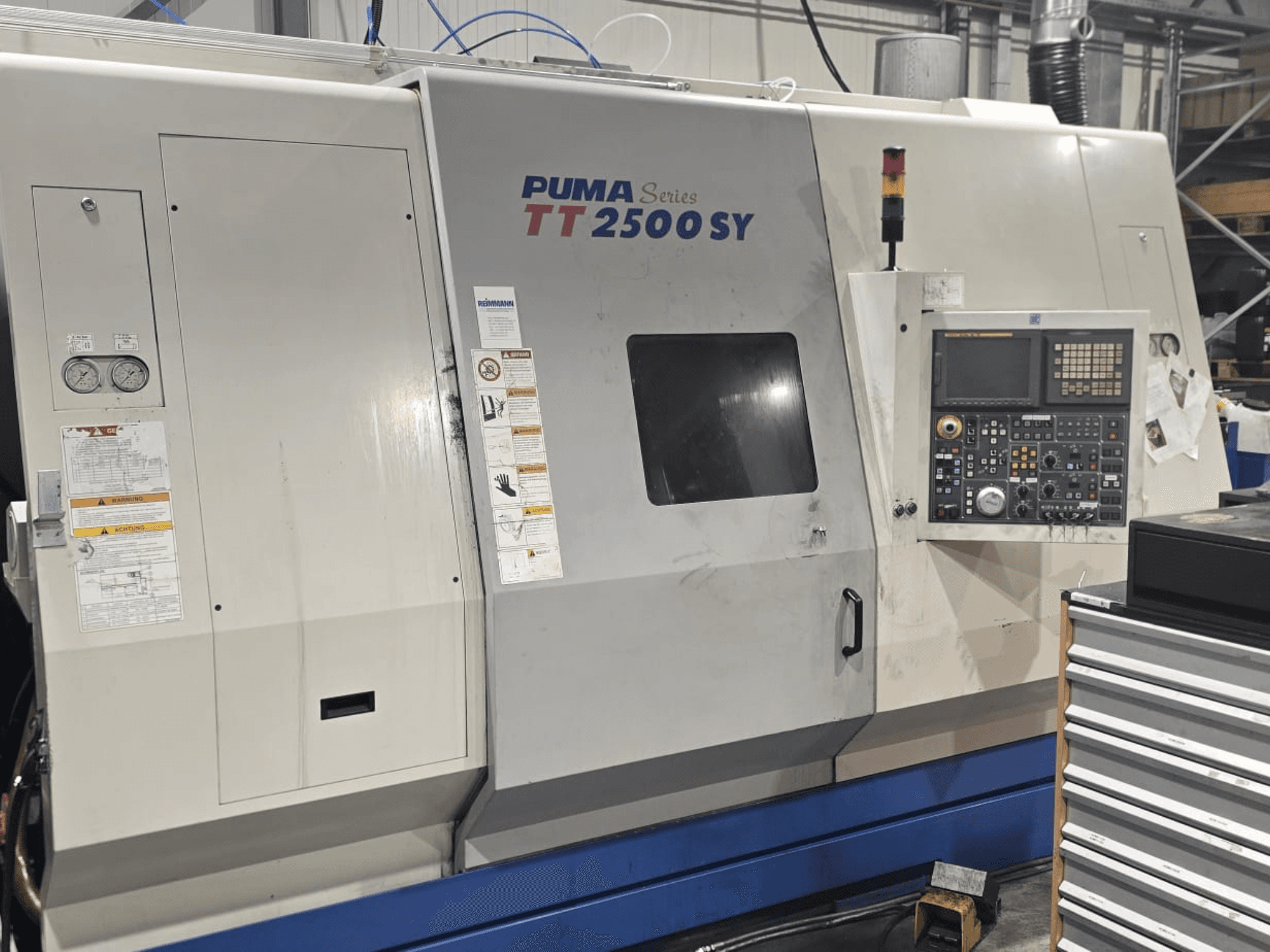

This 6-axis DOOSAN Puma TT 2500 SY was manufactured in 2006. It is a multi-spindle turning machine featuring twin spindles and twin turrets, equipped with a Fanuc 18i-TB control. Key specifications include a maximum turning diameter of 330 mm, turning length up to 500 mm, and bar capacity of 76 mm. Main spindle speed reaches 3500 RPM, while the sub-spindle can go up to 6000 RPM. If you are looking to get high quality turning capabilities consider the DOOSAN Puma TT 2500 SY machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2006
- MODEL: Puma TT 2500 SY
- application type: Turning
- Location: Serbia
- machine type: Multi-Spindle Turning Machine
- Available from: 02/01/2026
- control unit brand: FANUC
Technical Information - DOOSAN Puma TT 2500 SY
Control Unit
- Control Brand: FANUC
Movement
- Number of Axes: 6
- X-axis Travel: 250 mm
- Y-axis Travel: 50 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 3600 RPM
Additional Information
Max turning diameter: 330 mm (12.99 in); upper turret: 390 mm
Max turning length: 500 mm (19.6 in)
Bar capacity (main spindle): 76 mm (2.99 in)
Travels: X 250 mm (9.84 in), Y ±50 mm (±1.97 in), Z 580 mm (22.8 in)
Sub spindle speed: 6000 rpm
Sub spindle motor power: 7.5 / 11 kW
Notes: Series introduced mid-2000s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
