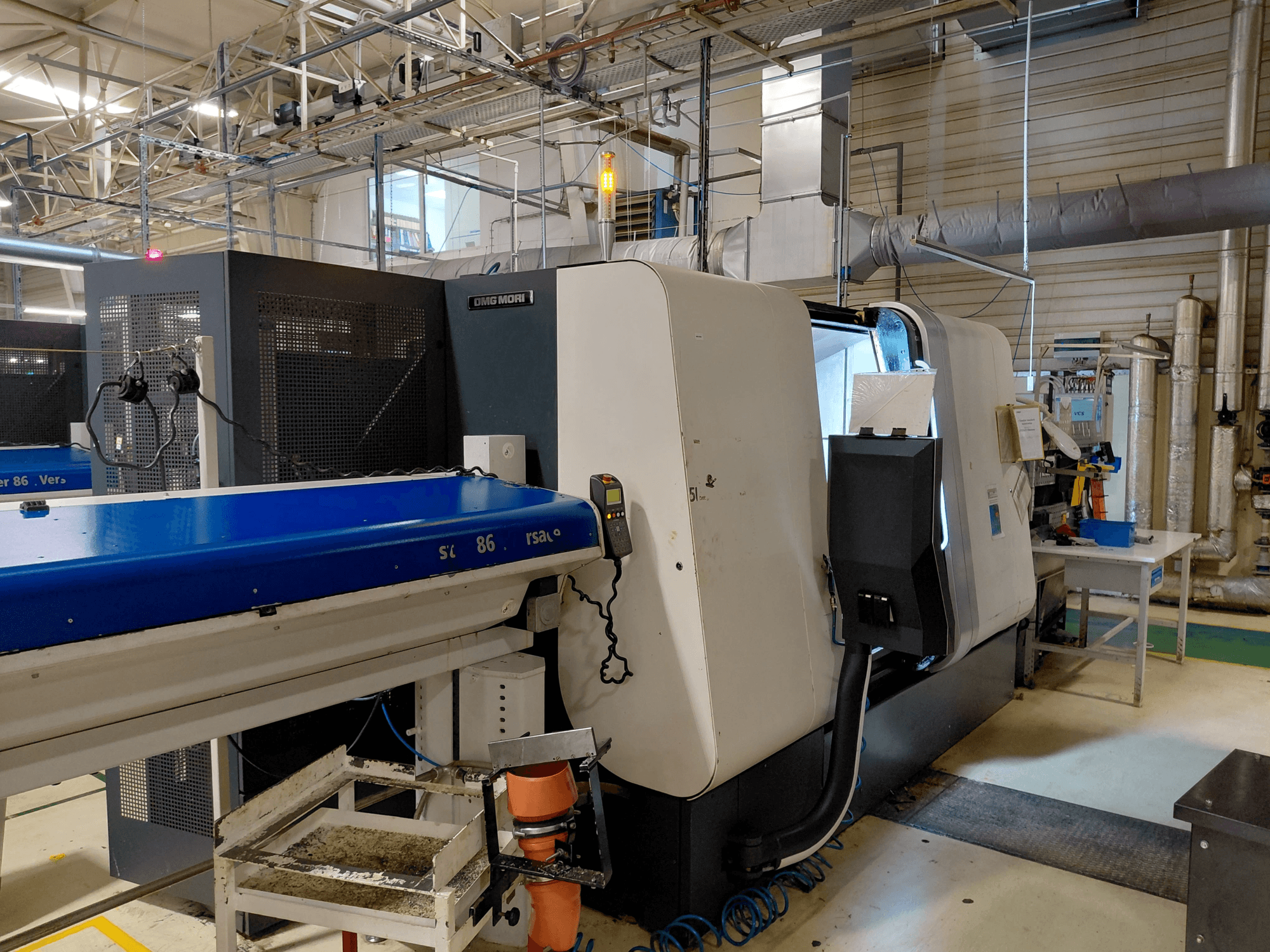

This 8-axis DMG MORI Sprint 65 linear was manufactured in 2015. It features a maximum workpiece diameter of 175 mm and a maximum bar diameter of 65 mm. The machine is equipped with two turrets, each with 12 driven tool positions, and offers a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 65 linear multi-spindle turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: Sprint 65 linear
- production hours: 42222
- application type: Turning
- Location: Czech Republic
- machine type: Multi-Spindle Turning Machine
- control unit brand: FANUC
Technical Information - DMG MORI Sprint 65 linear
Control Unit
- Control Brand: FANUC
- Control Model: 310
Dimensions
- Machine Height: 2300 mm
- Machine Length: 4500 mm
- Machine Weight: 9500 kg
- Machine Width: 1990 mm
Movement
- Number of Axes: 8
- X-axis Travel: 165 mm
- Y-axis Travel: 80 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 65 mm
- Spindle Speed: 5000 RPM
Additional Information
Control system: CNC 310 is
Total hours: 61295 h
Operating hours: 42222 h
Main spindle power 20/25 kW
Counter spindle power 17 kW
Max. main spindle speed: 5000 rpm
Max. counter spindle speed: 5000 rpm
Max. main spindle bar diameter: 65 mm
Max. counter spindle bar diameter: 45 mm
CNC CONTROLLED AXES
Stroke X1 165 mm
Rapid speed X1 30 m/min
Acceleration X1 5 m/s2
Stroke Z1 678 mm
Rapid speed Z1 30 m/min
Acceleration Z1 5 m/s2
Stroke Y1 80 (+50/-30) mm
Rapid speed Y1 30 m/min
Acceleration Y1 5 m/s2
Stroke X2 165 mm
Rapid speed X2 30 m/min
Acceleration X2 5 m/s2
Stroke Z2 640 mm
Rapid speed Z2 30 m/min
Acceleration Z2 5 m/s2
Stroke W2 690 mm
Rapid speed W2 30 m/min
Acceleration W2 5 m/s2
Number of turrets 2
Number of rotating tools each station 12 all driven positions
Tool system VDI 30
Max driven tool speed 4.000 rpm
Approx. coolant tank capacity 650 l
Coolant pump max.capacity (per each turret) 20 l/min
Pump pressure 7 bar
Power supply 91 kVA
LxWxH of the machine 4.500x1.990x2.300 mm
Approx. machine weight 9.500 kg
IEMCA MASTER 865 MP 43 L bar feeder
Base machine configuration:
- Drive for slide 1 and 2 (all 12 pos.)
- C-axis for main and counter spindle
- Y-axis for slide 1
- Swarf conveyor belt type
- Counterspindle collet cleaning with coolant
- Workpiece unloading including belt
- Mechanical preparation for oil mist filter
- Electrical and software interface for bar loader
- Angular synchronism between main and counter spindle
- Automatic machine shut down
- 2 additional on/off outputs (4 M-functions)
- Rigid tapping
- Piece and time counter
- Software for polygonal turning for slide 1 and 2
- Constant cutting speed
- Helical interpolation for slide 1
- Spindle speed control
- Quadruple warning light
- Cooling device for electrical cabinet
Added options:
I-V50011 Collet chuck Type "MPF 65/140" without axial
feed for main spindle max. diameter: 65mm.
Clamping elements and other equipment:
I-V50025 Manual collet changer
type "SACO MPT65/140 and MPF65/140"
I-V50092 Differential pressure for counterspindle, possibility of setting two different clamping pressures.
I-V50083 1 set of soft jaws for chuck
type "SMW 175-BBD"
I-V50080 Chuck type "SMW 175-BBD"
For counter spindle, including adapter for adapting the spindle
Control system options
I-V12060 Tool wear monitoring system
Monitor for CNC FANUC
I-V12070 Sister tool selection system for Tool
Monitor for CNC FANUC
Hydraulic and filtration equipment
I-V40045 External flushing of jaws/collets with coolant
on main spindle and counter spindle
Various new spare parts are included.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
