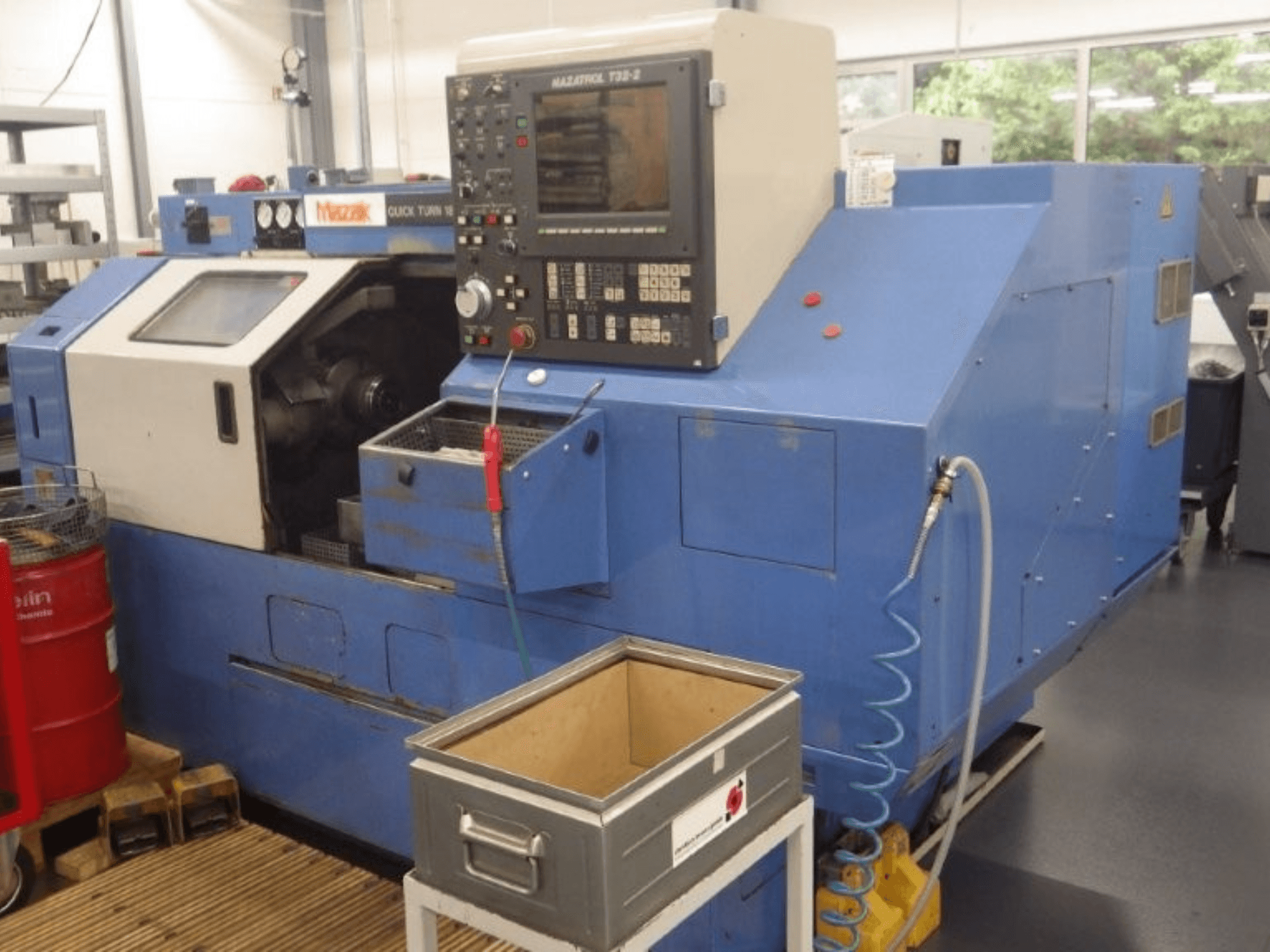

Multi-spindle turning machine manufactured in 1992. This Mazak Quick Turn 18 NSP features a maximum turning diameter of 260 mm and a turning length of 500 mm. It includes a tool turret with 8-fold / 16 positions and a spindle speed range of 36 - 3,600 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn 18 NSP machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Mazak
- year: 1992
- MODEL: Quick Turn 18 NSP
- application type: Turning
- Location: Germany
- machine type: Multi-Spindle Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn 18 NSP
Control Unit
- Control Brand: MAZATROL
- Control Model: T32-2
Dimensions
- Machine Height: 1900 mm
- Machine Length: 2700 mm
- Machine Weight: 4300 kg
- Machine Width: 2000 mm
Movement
- Number of Axes: 2
- X-axis Travel: 510 mm
- Y-axis Travel: 180 mm
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 60 mm
- Spindle Speed: 36000 RPM
Additional Information
- Control: MAZATROL T32-2
- Max. Turning Diameter: 260 mm
- Max. Turning Length: 500 mm
- Speed Range Main Spindle: 36 - 3,600 rpm
- Speed Range Sub-Spindle: 36 - 3,600 rpm
- Travel Z-Axis: 510 mm
- Travel X-Axis: 180 mm
- Spindle Bore: Ø 70 mm
- Bar Loader Length: 3,000 mm
- Collet Chuck Holder: For 185 E collets
- Collet Chuck Range (Main Spindle): Ø 4 - 60 mm
- Sub-Spindle: 3-jaw chuck, Ø 125 mm to Ø 70 mm
- Tool Turret: 8-fold / 16 positions
- Tool Eye: Measuring probe for tool measurement in working area
- Main Spindle Chuck: KITAGAWA 3-jaw chuck Ø 254 mm
- Coolant System: Complete coolant equipment
- Foot Switch: 2 double foot switches for opening/closing both chucks
- Machine Weight: 4,300 kg
- Machine Dimensions (L x W x H): 2.7 x 2.0 x 1.9 m
Optional
- Drip pan (2500 x 2700 mm), IRCO 3000 mm bar loader
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
